TexSpray RTX 5000PI

TexSpray RTX 5000PI Texture Sprayer

17H575

17H575_TexSpray_RTX_5000PI_190711_Main 17H575_TexSpray_RTX_5000PI_190711_Alt_1 17H575_TexSpray_RTX_5000PI_190711_Alt_2

TexSpray RTX 5000PI

TexSpray RTX 5000PI Texture Sprayer

17H575

The RTX 5000PI is an optimized texture system perfect for tradesmen and contractors seeking the time-saving features required for medium-to-large jobs. The RTX 5000PI delivers 5 gallons per minute and can handle up to 100 feet of hose to help get the job done faster.

Features

Product Brochure
The RTX 5000PI is an optimized texture system perfect for tradesmen and contractors seeking the time-saving features required for medium-to-large jobs. The RTX 5000PI delivers 5 gallons per minute and can handle up to 100 feet of hose to help get the job done faster.

The RTX Pro Interior Series delivers an optimized texture system perfect for tradesmen and contractors seeking the time-saving features required for medium-to-large jobs. This professional solution is designed for increased productivity to get you on and off the job site faster.

  • Jobsite Proven RotoFlex HD Pump
    • Features an innovative braided sling that provides extra support to the RotoFlex pump tube
    • 5.0 gpm output to get the job done quickly

  • SmartStart System
    • Trigger-Activated Power
    • Automatically start & stop the pump and compressor
    • Soft-start eliminates material blasts to ensure a quality finish
    • Reduces noise and vibration while extending pump and compressor life
  • Twin-Cylinder Air Compressor
    • More Air for Demanding Finishes
    • High-output, maintenance-free design runs at lower RPM for longer life
  • 120V AC High-Output Electric Motor
    • Improved Power and Performance
    • Optimized single-motor design operates air compressor and RotoFlex pump
  • Skip-Bond Material/Air Hose
    • Improved Handling & Flexibility
    • Both hoses are permanently bonded together for easy handling
  • FlexChange Pump Section
    • Eliminate Costly Downtime
    • Swap your RotoFlex pump in seconds - no tools required
  • Adjustable Material Flow Control
    • Maximum Control
    • Quickly adjust material flow up or down with easy-to-read gauge
  • Heavy-Duty Aluminum Trigger Gun
    • Total Spray Control
    • Select prime mode at the gun with Integrated Prime Selector
    • Spray more material longer with durable aluminum design & oversized passages
  • WideTex Tips & Adapter
    • Increase Productivity by Over 20%
    • Spray uniform, repeatable patterns with less material and pressure adjustment
  • Onboard Storage

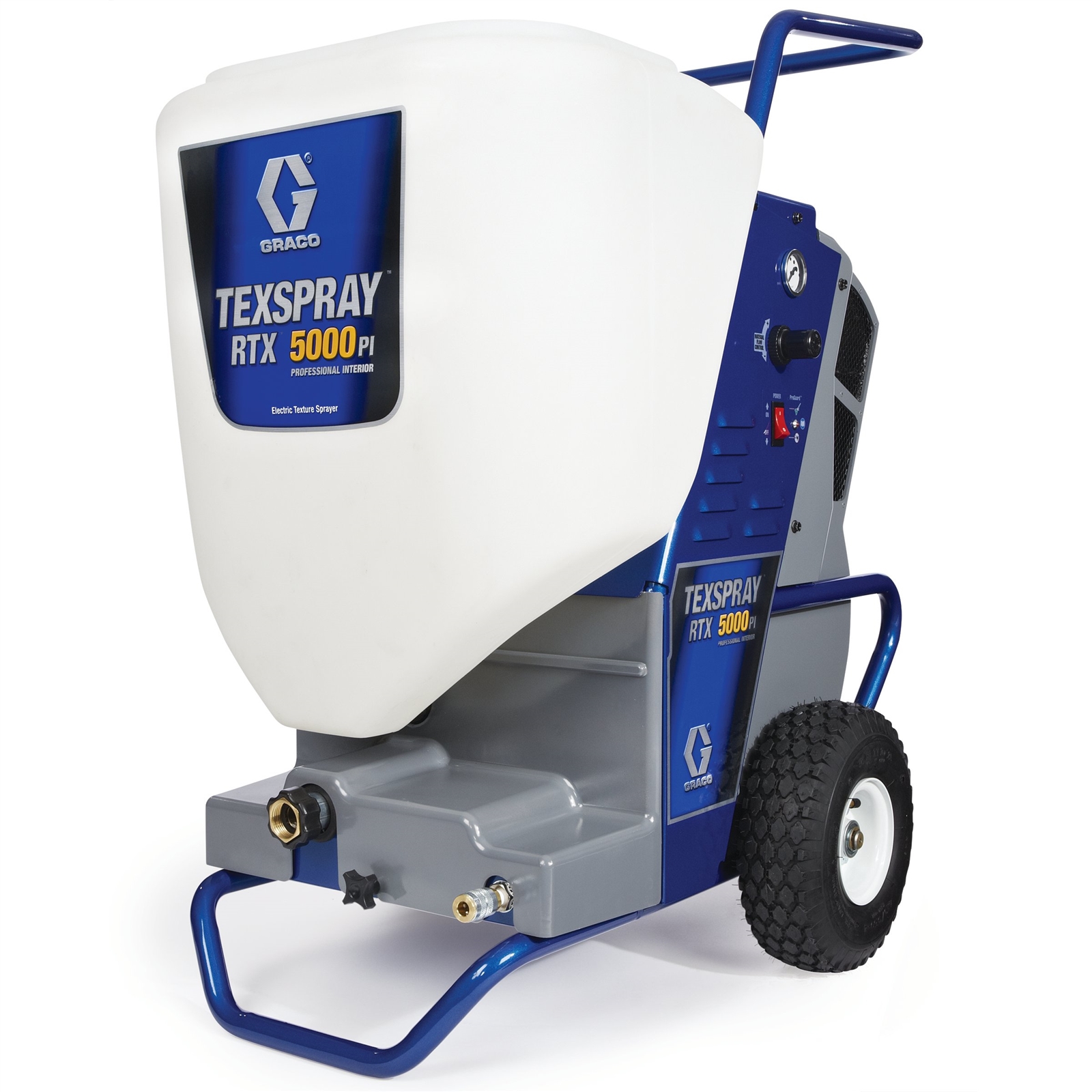

17H575_TexSpray_RTX_5000PI_190711_Feat_1

Specifications

Technical Specifications

Convert to Metric
Amperage (A) 15, 20
Compatible Material Acrylic Texture, Drywall Mud, Simulated Acoustic, Water-Based Material
Hopper Capacity (gal) 15
Includes Heavy-Duty Air Spray Trigger Gun, 1 in x 25 ft Material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter
Material Application Liquid Waterproofing
Maximum Flow Rate (GPM) 5.0
Maximum Hose Length (ft) 100
Maximum Sound Pressure Level (dB(A)) 81.8
Maximum Tip Size (in) 0.473
Maximum Working Pressure (MPa) 0.7
Maximum Working Pressure (psi) 100
Minimum Generator Power (W) 7500
Model TexSpray RTX
Overall Height (in) 39.5
Overall Length (in) 33.75
Overall Width (in) 22.75
Power Rating (HP) 2
Power Source Electric
Recommended Annual Usage Up to 2500 gallons per year
Series 5000PI
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, ETL Certified, ETL File #102139120MIN-001
Type Air-Assisted Airless Sprayer
Voltage (V) 120
Weight (lb) 164
Wetted Material Aluminum, Brass, Elastomer, Plastic, Carbon Steel, Stainless Steel
Amperage (A) 15, 20
Compatible Material Acrylic Texture, Drywall Mud, Simulated Acoustic, Water-Based Material
Hopper Capacity (L) 57
Includes Heavy-Duty Air Spray Trigger Gun, 1 in x 25 ft Material/Air Hose, 3 mm Round Nozzle, 4 mm Round Nozzle, 6 mm Round Nozzle, 8 mm Round Nozzle, 10 mm Round Nozzle, 12 mm Round Nozzle, 4 mm WideTex Tip, 6 mm WideTex Tip, 8 mm WideTex Tip, 10 mm WideTex Tip, 12 mm WideTex Tip, XL WideTex Tip, WideTex Adapter
Material Application Liquid Waterproofing
Maximum Hose Length (m) 30.5
Maximum Sound Pressure Level (dB(A)) 81.8
Maximum Tip Size (cm) 1.2009
Maximum Tip Size (mm) 12
Maximum Working Pressure (MPa) 0.7
Maximum Working Pressure (bar) 6.9
Maximum Working Pressure (kPa) 690
Minimum Generator Power (W) 7500
Model TexSpray RTX
Overall Height (cm) 100
Overall Height (mm) 1000
Overall Length (cm) 86
Overall Length (mm) 860
Overall Width (cm) 58
Overall Width (mm) 580
Power Rating (HP) 2
Power Source Electric
Recommended Annual Usage Up to 2500 gallons per year
Series 5000PI
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, ETL Certified, ETL File #102139120MIN-001
Type Air-Assisted Airless Sprayer
Voltage (V) 120
Weight (kg) 74.4
Wetted Material Aluminum, Brass, Elastomer, Plastic, Carbon Steel, Stainless Steel

What's Included

Part No. Description Qty Unit
24S134 KIT, GUN, TEXTURE,INT 1 ea
17J420 KIT, HOSE, TEXTURE, BLUE, 1" X 25' 1 ea
15C883 NOZZLE, TEXTURE GUN, 3MM 1 ea
15C884 NOZZLE, TEXTURE GUN, 4MM 1 ea
15C885 NOZZLE, TEXTURE GUN, 6MM 1 ea
15C886 NOZZLE, TEXTURE GUN, 8MM 1 ea
15C887 NOZZLE, TEXTURE GUN, 10MM 1 ea
15C888 NOZZLE, TEXTURE GUN, 12MM 1 ea

Recommended Accessories

GB KIT, ACCY, AUXILIARY AIR

GB KIT, ACCY, AUXILIARY AIR

View Details
KIT REPAIR,HOSE,CPLD

KIT REPAIR,HOSE,CPLD

View Details

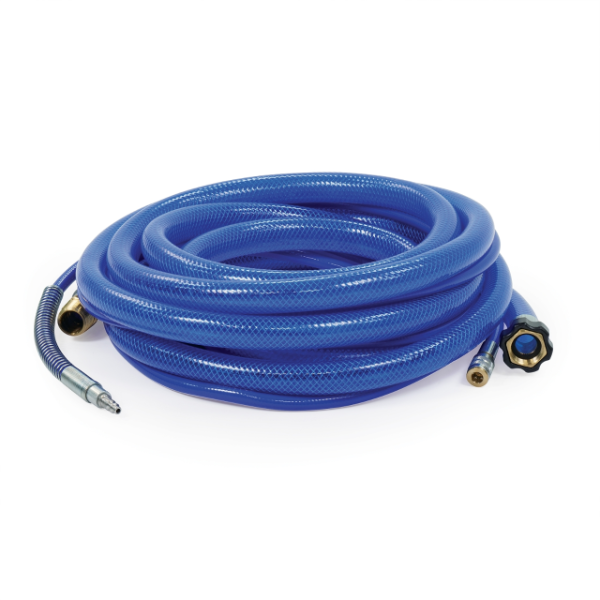

KIT, HOSE, TEXTURE, BLUE, 1" X 25'
