Ultra 490 XT

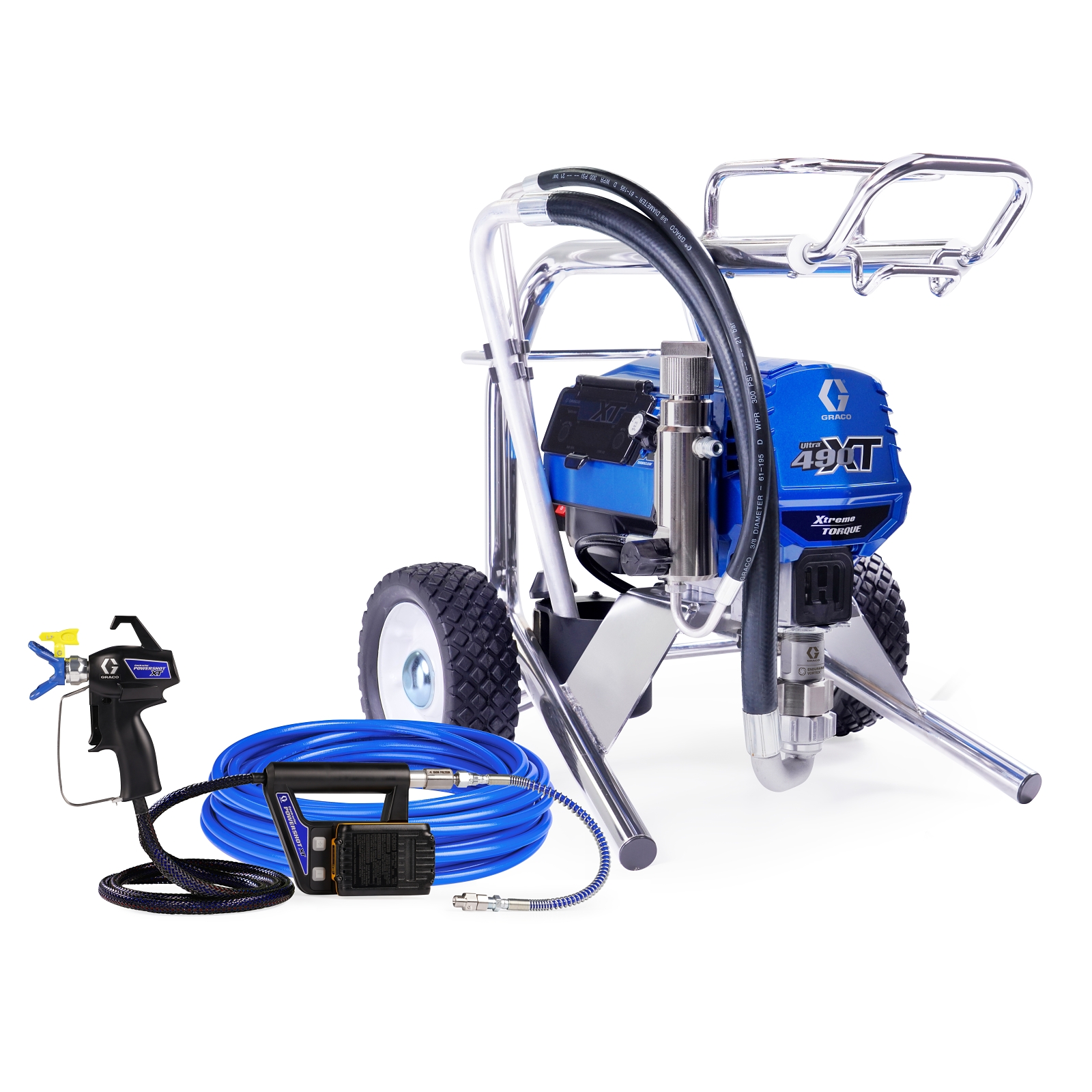

Ultra 490 XT Electric Airless Sprayer, Lo-Boy, PS
Part Number: 19D575

Ultra 490 XT
Ultra 490 XT Electric Airless Sprayer, Lo-Boy, PS
Part Number: 19D575
For the first time, the most advanced airless spray gun on the market is integrated with Graco’s leading sprayers – creating a complete system built to maximize productivity. The Contractor PowerShot Standard and XT models combine with Ultra®/Ultimate™ airless sprayers to deliver precision, ease of ...
More InfoIf you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product BrochureFor the first time, the most advanced airless spray gun on the market is integrated with Graco’s leading sprayers – creating a complete system built to maximize productivity. The Contractor PowerShot Standard and XT models combine with Ultra®/Ultimate™ airless sprayers to deliver precision, ease of use, and reduced fatigue, so contractors can work smarter and get the job done right – every time.
Xtreme Productivity. Xtreme Reliability. Graco's Xtreme Torque Midsize Electric sprayers make it easier to get more work done in a day with increased flow and production rates.
- Virtually eliminates spits and starts – instant response trigger actuates 80x faster than traditional guns, giving you the best possible finish and improved finish quality.
- Industry's lightest gun – it is the lightest gun ever built, at 0.08 pounds, 30% lighter than other spray guns, enabling all day spraying with less fatigue.
Lightest trigger pull force – all day comfort with 80% less force on each trigger pull. It allows for precise control and smoother application.
Xtreme Torque Motor Technology – 15X more torque than traditional motors, 8X more magnets provide unmatched power and performance
Rapid-Response Pressure Control – instantly responds to deliver the best finish quality with the industry’s largest operating pressure range (50-3,300 psi)
Endurance Vortex Piston Pump – Endurance Vortex Rod lasts 3X longer than the closest competitor. Pro Connect Pump Removal for fast on-the-job service.
Specifications & Documents
Technical Specifications
Convert to MetricCycles Per Gallon | 700 |
---|---|
Fluid Outlet Size (in) | 1/4 |
Fluid Outlet Thread Type | NPSM |
Frame Configuration | Lo-Boy |
Gun Included | 1 |
Gun Model | Contractor PowerShot XT |
Gun Technology | Airless |
Maximum Flow Rate (GPM) | 0.7 |
Maximum Fluid Working Pressure (psi) | 3300 |
Maximum Tip Size (in) | .025 |
Maximum Working Pressure (MPa) | 22.8 |
Maximum Working Pressure (psi) | 3300 |
Minimum Generator Power (W) | 3500 |
Minimum Working Pressure (psi) | 50 |
Model | Ultra |
Overall Height (in) | 22.2 |
Overall Length (in) | 25.3 |
Overall Width (in) | 19.8 |
Series | 490 XT |
Sound Pressure Level (dB(A)) | 78 |
Type | Airless Sprayer |
Voltage (V) | 120 |
Weight (lb) | 56 |
Cycles Per Gallon | 700 |
Fluid Outlet Size (in) | 1/4 |
Fluid Outlet Thread Type | NPSM |
Frame Configuration | Lo-Boy |
Gun Included | 1 |
Gun Model | Contractor PowerShot XT |
Gun Technology | Airless |
Maximum Flow Rate (L/min) | 2.6 |
Maximum Fluid Working Pressure (psi) | 3300 |
Maximum Tip Size (in) | .025 |
Maximum Working Pressure (MPa) | 22.8 |
Maximum Working Pressure (bar) | 228 |
Minimum Generator Power (W) | 3500 |
Minimum Working Pressure (psi) | 50 |
Model | Ultra |
Overall Height (cm) | 56.4 |
Overall Length (cm) | 64.3 |
Overall Width (cm) | 50.3 |
Series | 490 XT |
Sound Pressure Level (dB(A)) | 78 |
Type | Airless Sprayer |
Voltage (V) | 120 |
Weight (kg) | 25.4 |
Product Manuals
Warranty
Sales Literature
Certifications
Repair Parts
Part No. | Description |
---|---|
18B260 | Graco Pump Repair Kit |
