New

Ultra 695 XT

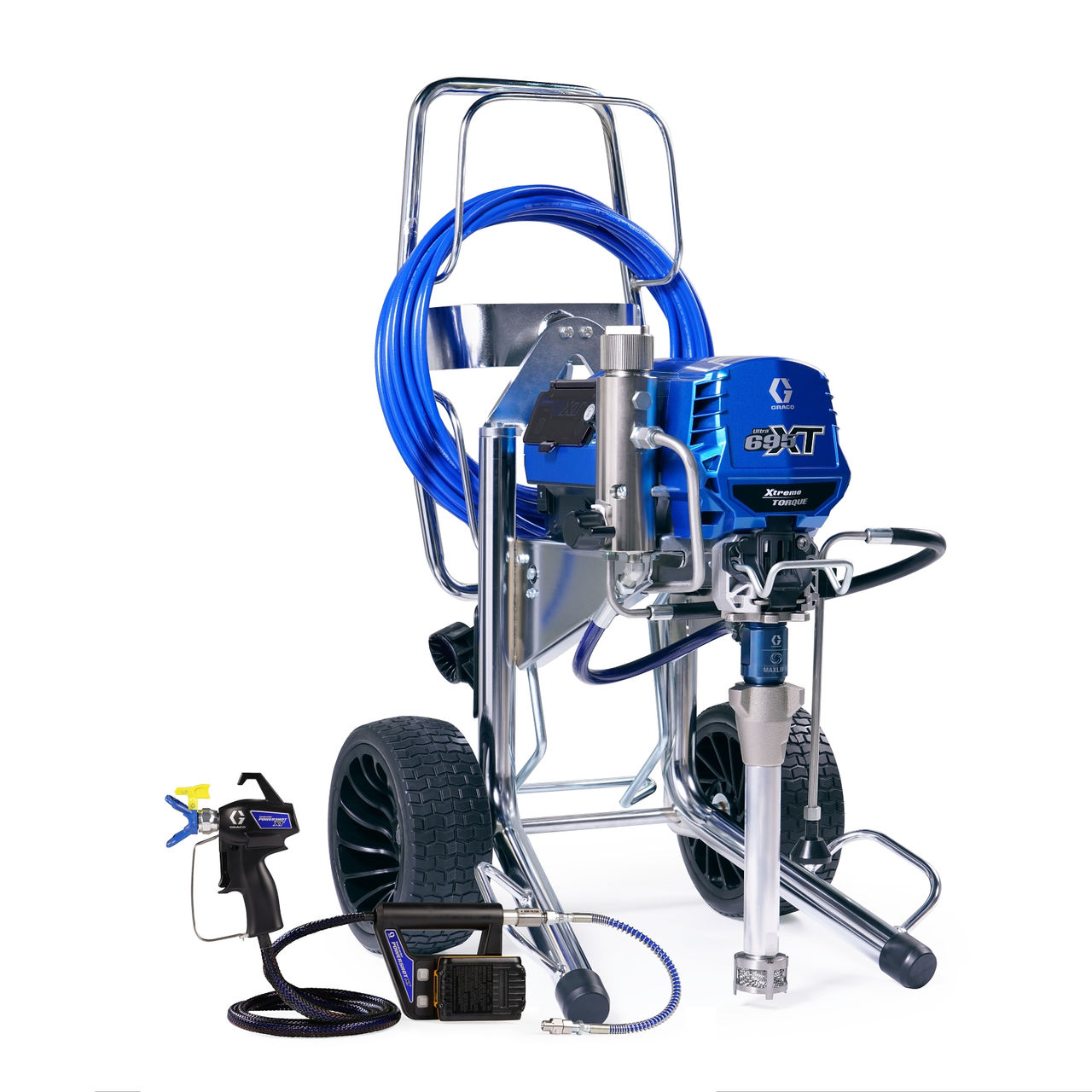

Ultra 695 XT ProContractor Series Electric Airless Sprayer, Hi-Boy, PS

Part Number: 25F602

product image
New

Ultra 695 XT

Ultra 695 XT ProContractor Series Electric Airless Sprayer, Hi-Boy, PS

Part Number: 25F602

For the first time, the most advanced airless spray gun on the market is integrated with Graco’s leading sprayers – creating a complete system built to maximize productivity. The Contractor PowerShot Standard and XT models combine with Ultra®/Ultimate™ airless sprayers to deliver precision, ease of ...

More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

For the first time, the most advanced airless spray gun on the market is integrated with Graco’s leading sprayers – creating a complete system built to maximize productivity. The Contractor PowerShot Standard and XT models combine with Ultra®/Ultimate™ airless sprayers to deliver precision, ease of use, and reduced fatigue, so contractors can work smarter and get the job done right – every time.

Xtreme Productivity. Xtreme Reliability. Graco's Xtreme Torque Midsize Electric sprayers make it easier to get more work done in a day with increased flow and production rates.

  • Virtually eliminates spits and starts – instant response trigger actuates 80x faster than traditional guns, giving you the best possible finish and improved finish quality.
  • Industry's lightest gun – it is the lightest gun ever built, at 0.08 pounds, 30% lighter than other spray guns, enabling all day spraying with less fatigue.
  • Lightest trigger pull force – all day comfort with 80% less force on each trigger pull. It allows for precise control and smoother application.

  • Xtreme Torque Motor Technology – 15X more torque than traditional motors, 8X more magnets provide unmatched power and performance

  • Rapid-Response Pressure Control – instantly responds to deliver the best finish quality with the industry’s largest operating pressure range (50-3,300 psi)

  • Endurance Vortex Piston Pump – Endurance Vortex Rod lasts 3X longer than the closest competitor. Pro Connect Pump Removal for fast on-the-job service.

Specifications & Documents

Technical Specifications

Convert to Metric
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Gun Included 1
Gun Model Contractor PowerShot XT
Gun Technology Airless
Maximum Flow Rate (GPM) 1.05
Maximum Fluid Working Pressure (psi) 3300
Maximum Tip Size (in) .031
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Minimum Working Pressure (psi) 50
Model Ultra
Overall Height (in) 41.3
Overall Length (in) 27.5
Overall Width (in) 22.6
Product Series ProContractor
Series 695 XT
Type Airless Sprayer
Voltage (V) 120
Weight (lb) 112
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Gun Included 1
Gun Model Contractor PowerShot XT
Gun Technology Airless
Maximum Flow Rate (L/min) 4
Maximum Fluid Working Pressure (psi) 3300
Maximum Tip Size (in) .031
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Minimum Generator Power (W) 5000
Minimum Working Pressure (psi) 50
Model Ultra
Overall Height (cm) 104.9
Overall Length (cm) 69.9
Overall Width (cm) 57.4
Product Series ProContractor
Series 695 XT
Type Airless Sprayer
Voltage (V) 120
Weight (kg) 51

Repair Parts

Part No. Description
2001548 Endurance Vortex Piston Pump, 695 XT
248212 Pump Packing Repair Kit
24B156 HD Prime Valve
