ToughTek M680a

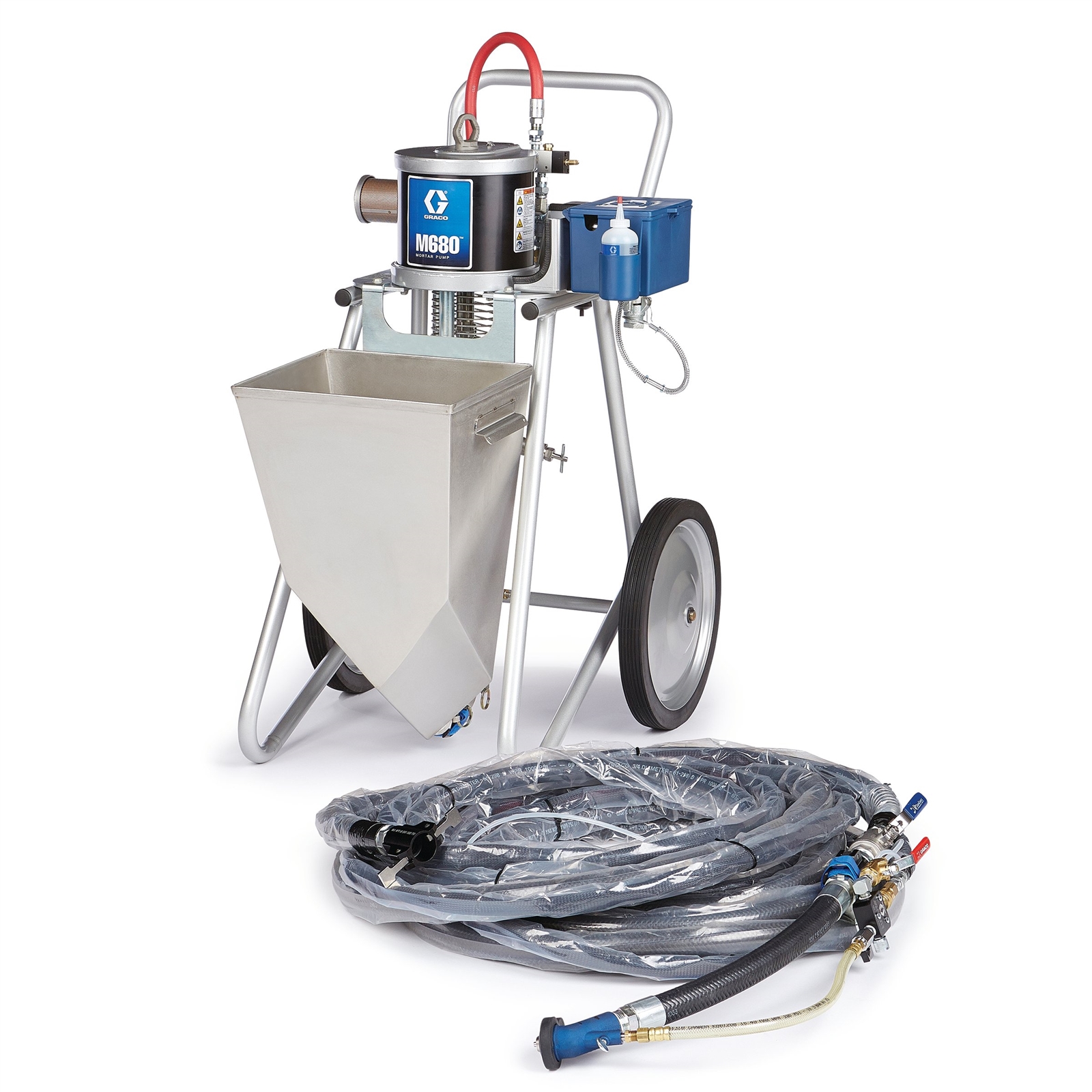

ToughTek M680a Bare Piston Pump System, Flex Hose Applicator

24T835

m680-hose-nozzle-left M680_Left_3Q M680_007

ToughTek M680a

ToughTek M680a Bare Piston Pump System, Flex Hose Applicator

24T835

The ToughTek M680a piston pump handles abrasive materials such as epoxy mortars, non-skid coatings (bridges and marine industry – solvent based coatings) or cementitious materials, and tackles difficult polymers with fillers such as glass flake, silica or sand. The all stainless design makes cleanup...

More Info

Features

Product Brochure

The ToughTek M680a piston pump handles abrasive materials such as epoxy mortars, non-skid coatings (bridges and marine industry – solvent based coatings) or cementitious materials, and tackles difficult polymers with fillers such as glass flake, silica or sand. The all stainless design makes cleanup of epoxy mortars easy and worry-free.

Portable sprayer for mortar, cementitious and heavily filled materials

  • Primary features:

    • Low pressure pumping (200 to 500 psi/13.7 to 34.5 bar) reduces wear on pump lower
    • Less material waste and more consistent finish than hand-trowling
    • Fast, easy cleaning with high velocity flush
    • Can be quickly disassembled for hand cleaning
    • Explosion-proof for hazardous spray areas
    • One convenient air source to run pump and atomize air
  • Flex Hose Applicator

    • Best for heavily filled materials that easily pack out
    • Includes Round Nozzle; provides a rough finish texture
    • Simple design, easy to clean
    • Order part number 24T947
  • Pole Applicator

    • For hard to reach areas
    • Best for heavily filled materials that easily pack out
    • Includes Round Nozzle; provides a rough finish texture
    • Simple design, easy to clean
    • Order part number 24T946
  • HTX 680 Applicator

    • Good for lighter materials that do not typically pack out
    • Includes Round Pattern Nozzles; provides a medium round pattern texture finish
    • Air mixed into fluid through multiple venturi ports provides a consistent pattern
    • Gives a more controlled pattern for lightweight materials or high solids coatings
    • Includes flat pattern discs - spreads the pattern out like a fan, giving a wider coverage area per pass
    • Order part number 24U209
  • Large Capacity Hopper

    • 25 gal (95 L) hopper kit
    • Ideal for materials that require more than 10 gal/38 liter capacity, such as fireproofing
    • Boost productivity by minimizing refills
    • Easily connects to ToughTek M680a
    • Easy to connect and maneuver
    • Order part number 24W889

Specifications

Technical Specifications

Convert to Metric
Application Industrial
Compatible Material Cementitious Material
Fluid Inlet Thread Gender Male
Fluid Outlet Size (in) 1
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Material Stainless Steel
Maximum Flow Rate (GPM) 10.88
Maximum Operating Temperature (°F) 120
Maximum Working Pressure (MPa) 7
Maximum Working Pressure (psi) 1000
Motor Type Pneumatic
Series M680a
Type Pneumatic Piston Pump Package
Application Industrial
Compatible Material Cementitious Material
Fluid Inlet Thread Gender Male
Fluid Outlet Size (cm) 2.54
Fluid Outlet Size (mm) 25.4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Material Stainless Steel
Maximum Working Pressure (MPa) 7
Maximum Working Pressure (bar) 70
Maximum Working Pressure (kPa) 7000
Motor Type Pneumatic
Series M680a
Type Pneumatic Piston Pump Package
