Heavy Duty Back-Geared Drum Agitator with elevator and drum cover, air driven, 373 watts, 81.25 cm (32 inches) long

Part Number: 231413

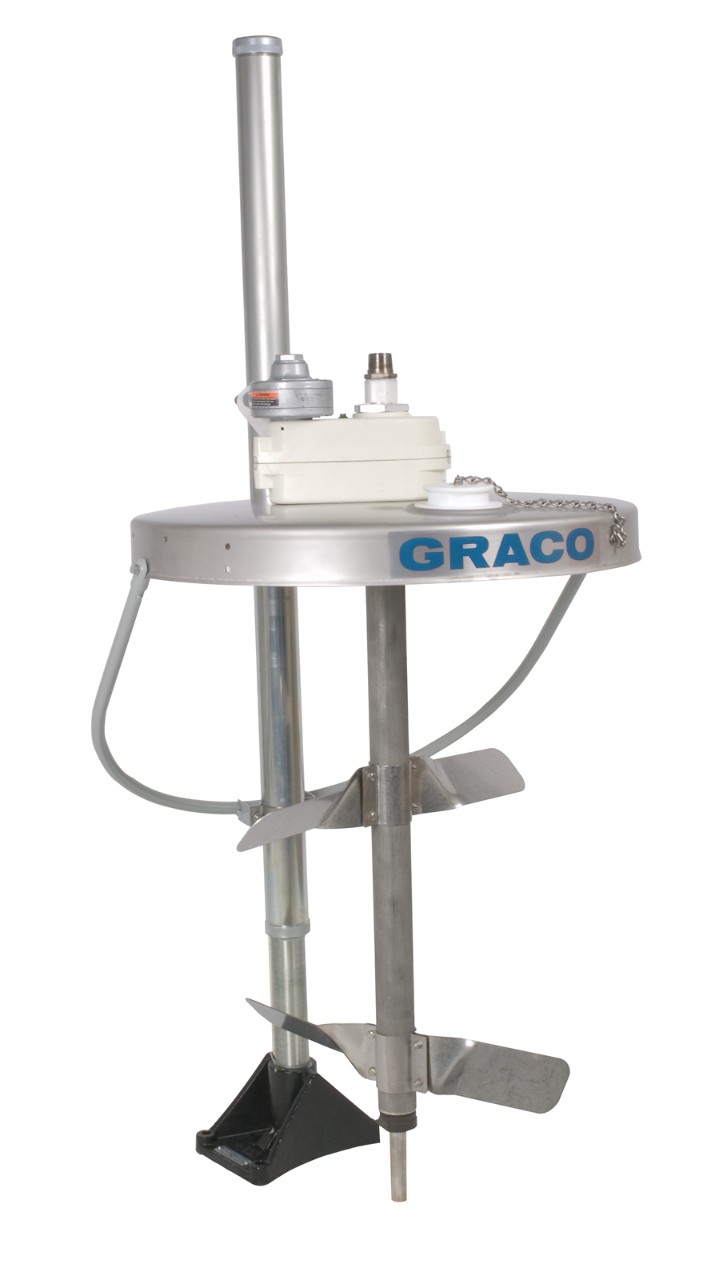

product image
Image is for illustrative purposes only.

Heavy Duty Back-Geared Drum Agitator with elevator and drum cover, air driven, 373 watts, 81.25 cm (32 inches) long

Part Number: 231413

Heavy Duty Back-Geared Drum Agitator with elevator and drum cover. Does not include siphon kit.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Heavy Duty Back-Geared Drum Agitator with elevator and drum cover. Does not include siphon kit.
  • Heavy duty gearbox mixes high viscosity materials
  • Leak-free and oil-less gearbox prevents material contamination
  • Stainless steel agitator and cover for corrosion resistance and water-borne compatibility
  • Twin paddles thoroughly mix finishing materials
  • Siphon option allows material transfer through agitator shaft
  • Access port for easy sampling and inspection of material during operation
  • Maximum viscosity 3,000 cps

Specifications & Documents

Technical Specifications

Convert to Imperial
Air Inlet Size (in) 1/4
Air Inlet Thread Type NPT
For Use With 208 Litre (55 Gallon) Drum
Maximum Air Inlet Pressure (psi) 100
Maximum Speed (RPM) 1200
Maximum Viscosity (cP) 3000
Maximum Working Pressure (psi) 100
Motor Type Pneumatic - Rotary Vane
Power Rating (HP) 0.25
Type Agitator
Weight (lb) 25.8
Wetted Material Stainless Steel, Acetal, AF, Nylon, PTFE
Air Inlet Size (cm) 0.635
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Type NPT
For Use With 208 Litre (55 Gallon) Drum
Maximum Air Inlet Pressure (bar) 7
Maximum Air Inlet Pressure (kPa) 700
Maximum Air Inlet Pressure (psi) 100
Maximum Speed (RPM) 1200
Maximum Viscosity (cP) 3000
Maximum Working Pressure (bar) 7
Maximum Working Pressure (kPa) 700
Maximum Working Pressure (psi) 100
Motor Type Pneumatic - Rotary Vane
Type Agitator
Weight (kg) 11.7
Wetted Material Stainless Steel, Acetal, AF, Nylon, PTFE
