FinishPro II 395 PC

FinishPro II 395 PC Electric Air-Assisted Airless Sprayer

Part Number: 17C417

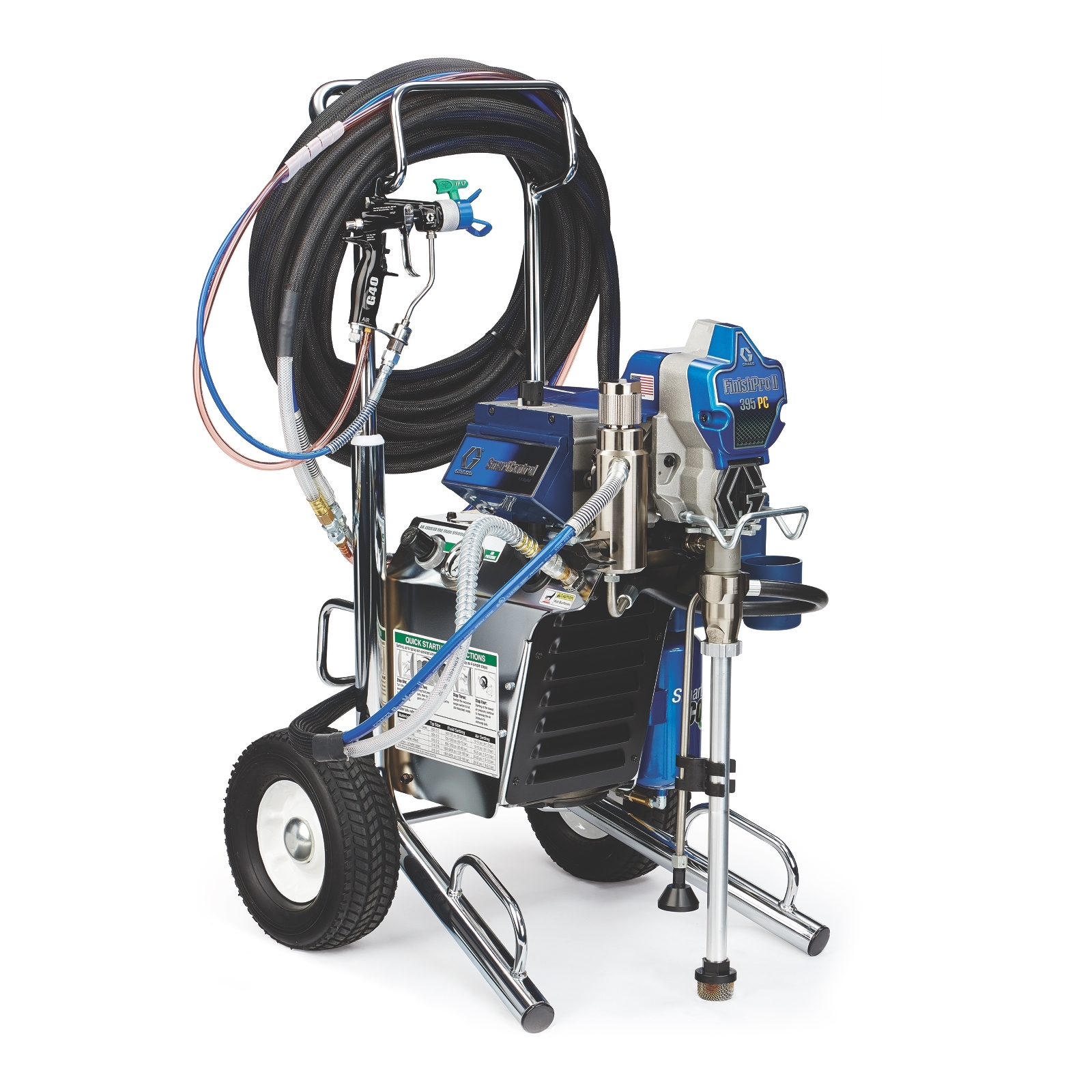

product image

FinishPro II 395 PC

FinishPro II 395 PC Electric Air-Assisted Airless Sprayer

Part Number: 17C417

With features that make a great sprayer even better, the FinishPro II 395 PC is Graco’s premier solution to fine finishing. It delivers a high quality finish at a high production rate, and can handle the most challenging materials.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
With features that make a great sprayer even better, the FinishPro II 395 PC is Graco’s premier solution to fine finishing. It delivers a high quality finish at a high production rate, and can handle the most challenging materials.

Includes the features and output to quickly deliver high-quality finishes.

  • SmartControl 1.0 with Digital Display
    • Increased spray performance
    • Consistent spray fan without pressure fluctuations at all spraying pressures
    • Digital display accurately shows spraying pressure
  • SmartComp
    • Compressor is activated by the gun trigger—if you’re not spraying, it’s not running!
    • Reduces jobsite noise, resulting in less fatigue
    • Automatic shut-off reduces moisture entering the system and extends compressor life
    • Pulling trigger delivers instant air to the gun with zero lag
    • Release the trigger and SmartComp shuts off the compressor after 5 seconds
    • Extends compressor life
  • Chromex Endurance Pump
    • The most reliable pump on the market—lasts 2 times longer than the next leading brand
    • Long-life V-Max Blue packings, Chromex rod and hardened stainless steel cylinder
    • QuikAccess intake valve for fast cleaning or debris clearing
  • ProConnect
    • Fast and easy on-the-job Pump Replacement System
    • 1-minute jobsite replacement in 3 simple steps
    • Pinless design eliminates the chance of losing parts during the change-out process
  • High-Output On-Board Air Compressor
    • Ideal for on-site finish jobs
    • Delivers 3.2 ft³/min at 35 psi (0.1 m³/min at 2.4 bar)—enough air to break up the heaviest of materials
    • Exclusive Pressure Unloader results in quieter operation
    • Cooling coil reduces air temperature, extending the life of the critical components and providing safer operator handling
  • Precision-Cut RAC X FF LP SwitchTip
    • Less overspray and increased pump life
    • Sprays at lower pressures with less overspray
    • Pre-orifice design produces a perfect airless finish
    • Finer atomization and soft edges for easier overlapping
    • Reduces prep and cleanup
    • Includes solvent seal for hot solvents
  • G40 Spray Gun
    • An industrial quality air-assisted spray gun that delivers superior finishing results
    • Integrated air valve improves gun handling
    • RAC X guard included
    • Flat tip conversion kit included
  • Super-Flex Hose Set
    • The flexibility to get into tight spaces—focus on the task, not the tool!
    • Extremely lightweight in hand, which reduces fatigue
    • Connects directly to the gun for maximum flexibility
    • Flex Wrap hose skin protects from paint build up and increases hose durability
  • Two Sprayers in One
    • Select air-assisted or airless modes, depending on what’s best for the application
    • Simple, color-coded labels easily identify airless and air-assisted airless modes with a single selector switch
  • Self-Contained & Portable
    • One plug runs the entire unit, simplifying jobsite operation

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 15
Construction Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel
Engine Size (HP) 0.875
Frame Configuration Cart
Gun Included 1
Includes G40 Gun Air-Assisted Airless Gun, RAC X FF LP 210 Spray Tip, RAC X 517 Spray Tip, RAC X Air-Assisted Airless Guard, Fine Finish Flat Tip Kit, Fine Finish 309 Flat Tip, 50 ft Super-Flex Hose Set, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz.
Inlet Paint Strainer 100 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.47
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 79
Maximum Tip Size (in) 0.021
Maximum Tip Size 1 Gun (in) 0.021
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 4000
Model FinishPro II
Motor Type TEFC DC
Number of Guns 1
Outlet Paint Filter 100 Mesh Stainless Steel Screen
Overall Height (in) 40.5
Overall Length (in) 32.5
Overall Width (in) 21
Phase 1
Power Rating (HP) 0.875
Power Source Electric
Pressure Control Type SmartControl 1.0
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Type Endurance
Recommended Annual Usage Up to 1095 gallons per year
Series 395 PC
Spray Type Air-Assisted Airless
Type Air-Assisted Airless Sprayer
Voltage (V) 120
Weight (lb) 110
Amperage (A) 15
Construction Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel
Frame Configuration Cart
Gun Included 1
Includes G40 Gun Air-Assisted Airless Gun, RAC X FF LP 210 Spray Tip, RAC X 517 Spray Tip, RAC X Air-Assisted Airless Guard, Fine Finish Flat Tip Kit, Fine Finish 309 Flat Tip, 50 ft Super-Flex Hose Set, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz.
Inlet Paint Strainer 100 Mesh Stainless Steel Screen
Maximum Hose Length (m) 15.25
Maximum Sound Pressure Level (dB(A)) 79
Maximum Tip Size (cm) 0.0533
Maximum Tip Size (in) 0.021
Maximum Tip Size (mm) 0.5334
Maximum Tip Size 1 Gun (cm) 0.0533
Maximum Tip Size 1 Gun (in) 0.021
Maximum Tip Size 1 Gun (mm) 0.5334
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 4000
Model FinishPro II
Motor Type TEFC DC
Number of Guns 1
Outlet Paint Filter 100 Mesh Stainless Steel Screen
Overall Height (cm) 102.8
Overall Height (mm) 1028
Overall Length (cm) 82.5
Overall Length (mm) 825
Overall Width (cm) 53.3
Overall Width (mm) 533
Phase 1
Power Source Electric
Pressure Control Type SmartControl 1.0
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Type Endurance
Recommended Annual Usage Up to 1095 gallons per year
Series 395 PC
Spray Type Air-Assisted Airless
Type Air-Assisted Airless Sprayer
Voltage (V) 120
Weight (kg) 49.9

What's Included

Part No. Description Qty Unit
262929 G40 Air-Assisted Airless Gun 1 ea
FFLP210 Fine Finish Low Pressure RAC X FF LP SwitchTip, 210 1 ea
LTX517 RAC X SwitchTip, 517 1 ea
288514 RAC Tip to Flat Tip Air Cap Conversion Kit 1 ea
AAM309 Fine Finish Spray Tip for G15 and G40 Guns, 0.009 inch (0.229 mm) Orifice Size, 6-8 inches (150-200 mm) Fan Width 1 ea
24U579 Super-Flex Material and Air Hose Set, 50 ft 1 ea
240794 BlueMax II Airless Hose, 1/4 in x 50 ft 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea

Repair Parts

Part No. Description
15D029 CORD, POWER
262929 G40 Air-Assisted Airless Gun
15B071 INSERT, FILTER
24U579 Super-Flex Material and Air Hose Set, 50 ft
24B026 KIT, DISPLAY, ST
117828 KIT, O-RING, PTFE, ENCAPULATED
287735 KIT, REPAIR, BRUSH
246382 Easy Out Pump Manifold Filter, Short, 100 mesh
246425 Easy Out Pump Manifold Filter, Short, 30 mesh
246384 Easy Out Pump Manifold Filter, Short, 60 mesh
288859 KIT, REPAIR, MOTOR
244240 KIT, REPAIR, RETURN LINE, HI
17C992 KIT, REPAIR, STINGER TUBE
246385 Inlet Strainer, Nylon Cap, 7/8 in
243222 Pressure Control Transducer Repair Kit
235014 Spray Prime/Drain Valve Kit
24W830 Hose Replacement Kit
103413 ProX21 Packing O-Ring
246383 Easy Out Pump Manifold Filter, Short, 200 mesh
15C281 SPRING, COMPRESSION
120544 SWITCH, TOGGLE
115099 Hose Washer Inlet Seal
15B652 WASHER, SUCTION SWIVEL
