WB100
WB100 Water-borne Iso Enclosure, Pro Xp60 WB Smart ES AS Gun, Grounded Air/Shielded WB Fluid Hoses, FM Approved & Compliant with EN50059
Part Number: 24P631

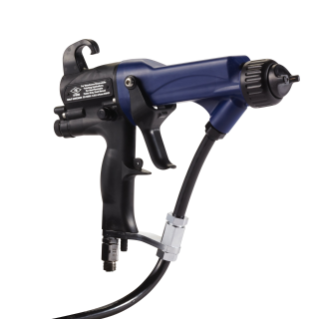

Image is for illustrative purposes only.
WB100
WB100 Water-borne Iso Enclosure, Pro Xp60 WB Smart ES AS Gun, Grounded Air/Shielded WB Fluid Hoses, FM Approved & Compliant with EN50059
Part Number: 24P631
The Graco WB100 is the dependable way to isolate water-borne coatings when spraying with electrostatic equipment. Ideal for spray booth systems.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Graco WB100 is the dependable way to isolate water-borne coatings when spraying with electrostatic equipment. Ideal for spray booth systems.
- Ideal for low pressure water-borne material spraying with the Pro Xp60 WB gun for a superior finish quality and operator comfort
- Triton 1:1 150 Series pump delivers a consistent spray pattern and uniform film thickness
- Standard voltage display allows for easy monitoring of voltage for overall performance
- Simple 19 l (5 gallon) bucket design is easy to colour change and flush the system
- Electrostatic gun Smart Controls help you analyse performance, adapt to your voltage needs and make troubleshooting easier
- Portable cabinet increases mobility for a wide variety of applications
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Water-borne, Single Components |
|---|---|
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | Water-borne |
| Gun Technology | Electrostatic |
| Gun Type | Electrostatic |
| Includes | Smart Electrostatic Air Spray Gun, Shielded Water-borne Fluid Hose |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (gpm) | 8.5 |
| Maximum Hose Length (ft) | 100 |
| Maximum Working Pressure (psi) | 100 |
| Model | WB100 |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Spray Type | Air Spray |
| Sprayer Type | Air Spray |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
| Wetted Material | Stainless Steel, PEEK, UHMWPE, Fluoroelastomer, Acetal, Nylon, Polyethylene, Tungsten, PTFE |
| Compatible Material | Water-borne, Single Components |
| Feed Type | Suction Hose |
| Fluid Inlet Size (cm) | 1.905 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | Water-borne |
| Gun Technology | Electrostatic |
| Gun Type | Electrostatic |
| Includes | Smart Electrostatic Air Spray Gun, Shielded Water-borne Fluid Hose |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (l/min) | 32 |
| Maximum Hose Length (cm) | 3048 |
| Maximum Hose Length (m) | 30.0 |
| Maximum Hose Length (mm) | 30480 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (kg/cm²) | 7.03 |
| Maximum Working Pressure (psi) | 100 |
| Model | WB100 |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Spray Type | Air Spray |
| Sprayer Type | Air Spray |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
| Wetted Material | Stainless Steel, PEEK, UHMWPE, Fluoroelastomer, Acetal, Nylon, Polyethylene, Tungsten, PTFE |
Product Manuals
Sales Literature
Repair Parts
| Part No. | Description |
|---|---|
| 24N756 | KIT, MODULE, SMART |
