Sharpe

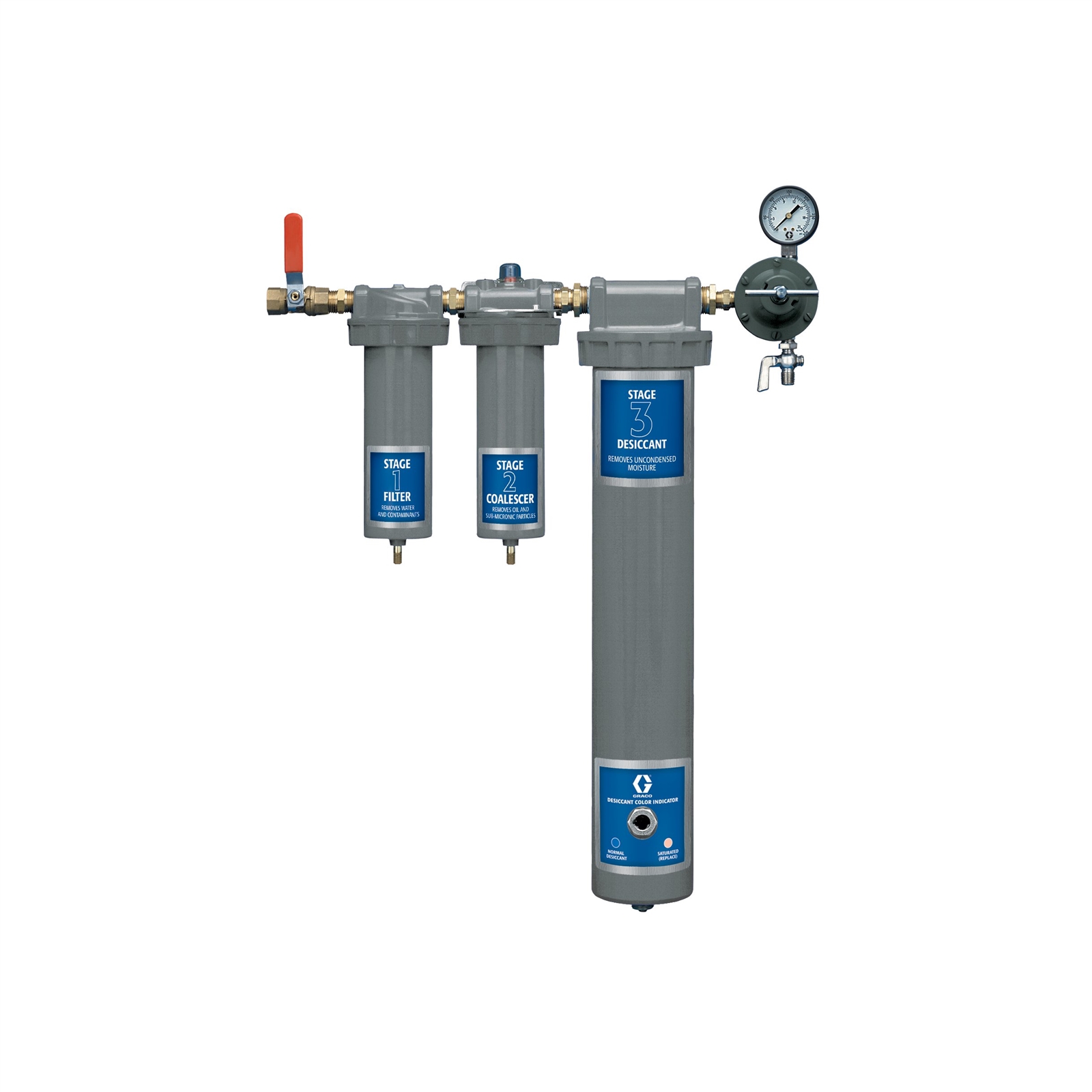

3-Stage Desiccant Drying System, 3-stage system includes: 234402, 234403 and 234404
Part Number: 234401
Image is for illustrative purposes only.
Sharpe
3-Stage Desiccant Drying System, 3-stage system includes: 234402, 234403 and 234404
Part Number: 234401
Features
- Ensures equipment is supplied with clean, dry air
- Multi-stage filter removes particles down to 0.01 micron
- Desiccant removes moisture from air
- Includes shut-off valve and pressure regulator
- Filter and desiccant indicators signal replacement to ensure optimal efficiency
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 1/2 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Outlet Gender | Female |
| Air Outlet Size (in) | 1/2 |
| Air Outlet Thread Type | NPT |
| Includes | Shut-Off Valve, Air Filter with Auto Drain, Coalescer with Auto Drain, Desiccant Housing, Air Regulator, Silica Gel Desiccant |
| Material Removed | Contaminants, Oil, Particles, Water |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Working Pressure (MPa) | 1.1 |
| Maximum Working Pressure (psi) | 160 |
| Model | Sharpe |
| Type | Desiccant Drying System |
| Air Inlet Size (cm) | 1.27 |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Size (mm) | 12.7 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Outlet Gender | Female |
| Air Outlet Size (cm) | 1.27 |
| Air Outlet Size (in) | 1/2 |
| Air Outlet Size (mm) | 12.7 |
| Air Outlet Thread Type | NPT |
| Includes | Shut-Off Valve, Air Filter with Auto Drain, Coalescer with Auto Drain, Desiccant Housing, Air Regulator, Silica Gel Desiccant |
| Material Removed | Contaminants, Oil, Particles, Water |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Working Pressure (MPa) | 1.1 |
| Maximum Working Pressure (bar) | 11 |
| Maximum Working Pressure (kPa) | 1100 |
| Maximum Working Pressure (psi) | 160 |
| Model | Sharpe |
| Type | Desiccant Drying System |
