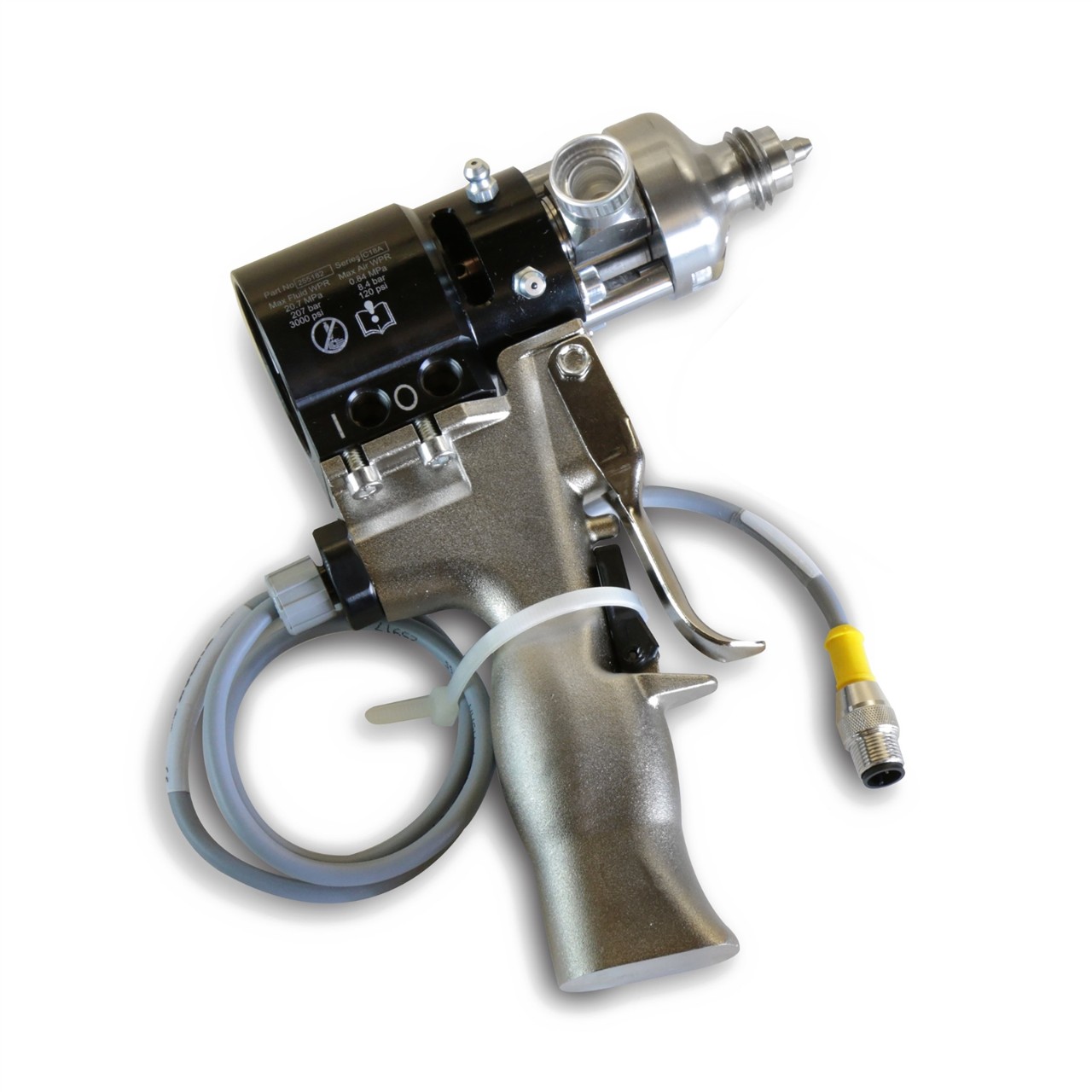

Two Component Mixing Dispense Valve MD2
10:1 Wide Ratio Hard Seat Electrically-Actuated Gun Trigger
Part Number: 255446
Two Component Mixing Dispense Valve MD2
10:1 Wide Ratio Hard Seat Electrically-Actuated Gun Trigger
Part Number: 255446
Accurately dispenses and mixes two-component sealants and adhesives.
Features
Product Brochure
Accurately dispenses and mixes two-component sealants and adhesives.
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 1/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Moulding |
| Compatible Material | 2K Sealants, Adhesives |
| Component Type | Plural-Component |
| Fluid Inlet Size (in) | 9/16-18 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | UNF |
| Fluid Outlet Size (in) | 7/8-9 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | UNC |
| Gun Activation | Manual |

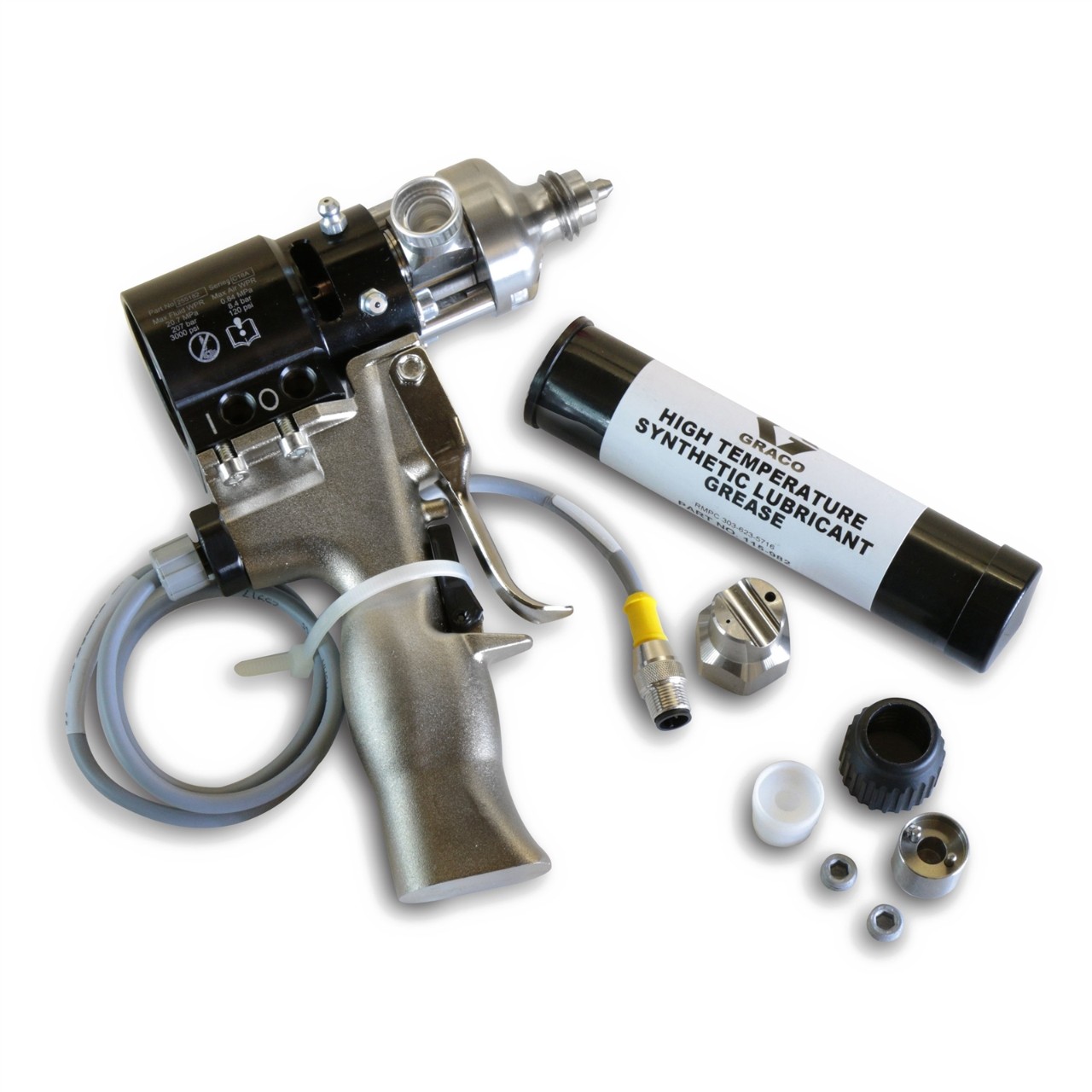

| Includes | 2K Dispense Handle, 10:1 Hard Seat Dispense Valve, 10:1 Ratio Check Kit, 10:1 Night Cap, ASM Aid Tool |
| Inlet Size (in) | 9/16-18 |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Two Component Mixing Dispense Valve |
| Mount Hole Thread Gender | Female |
| Mount Hole Thread Type | Metric |
| Series | MD2 |
| Type | Metering Valve |
| Air Inlet Size (in) | 1/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Moulding |
| Compatible Material | 2K Sealants, Adhesives |
| Component Type | Plural-Component |
| Fluid Inlet Size (in) | 9/16-18 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | UNF |
| Fluid Outlet Size (in) | 7/8-9 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | UNC |
| Gun Activation | Manual |
| Includes | 2K Dispense Handle, 10:1 Hard Seat Dispense Valve, 10:1 Ratio Check Kit, 10:1 Night Cap, ASM Aid Tool |
| Inlet Size (in) | 9/16-18 |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Two Component Mixing Dispense Valve |
| Mount Hole Thread Gender | Female |
| Mount Hole Thread Type | Metric |
| Series | MD2 |
| Type | Metering Valve |
