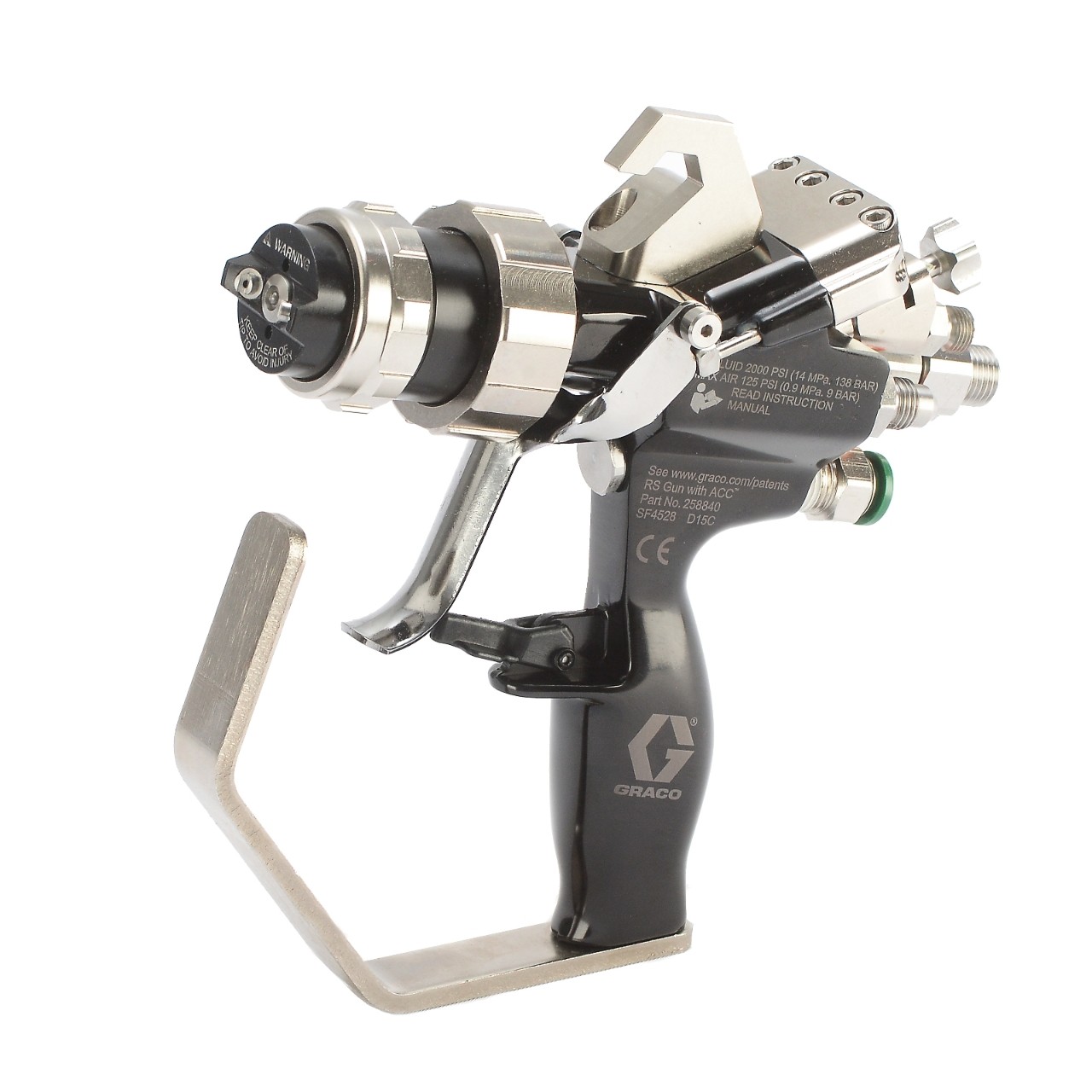

RS External Mix Gel Coat Gun with Tip

Part Number: 258840

Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco R...

More Info
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure

Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.

  • Makes production easier

    • Simple, quick start up and shut down
    • Quick tool-less blade change
    • No need to adjust needle settings after maintenance
  • Improves product quality

    • Lightweight cutter gives better chopping control
    • Easy one-hand cutter speed control
    • Superior spray pattern
  • Improves operator comfort for increased job satisfaction

    • Lighter, ergonomic gun reduces fatigue
    • Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
    • No problems soaking the RS Gun in solvents overnight
  • Saves material costs

    • Air Assist Containment (AAC®) standard on all RS Guns
    • Lower pressure reduces overspray

Specifications & Documents

Technical Specifications

Convert to Imperial
Chop Gun Type Without Cutter
Compatible Material Polyester Resin, Gel-Coat
For Use With FRP System
Gun Type Gel Coat
Gun Weight (lb) 2.08
Gun Weight (oz) 33.16
Includes CST521 Tip
Maximum Air Pressure (psi) 125
Maximum Fluid Pressure (psi) 2000
Maximum Fluid Temperature (°F) 100
Minimum Air Flow Rate (SCFM) 2.0
Minimum Air Inlet Pressure (psi) 0
Mix Type External Mix
Model RS
Type Gel Coat Gun
Chop Gun Type Without Cutter
Compatible Material Polyester Resin, Gel-Coat
For Use With FRP System
Gun Type Gel Coat
Gun Weight (g) 940
Gun Weight (kg) 0.94
Gun Weight (oz) 33.16
Includes CST521 Tip
Maximum Air Pressure (bar) 8.6
Maximum Air Pressure (kPa) 860
Maximum Air Pressure (kg/cm²) 8.79
Maximum Air Pressure (psi) 125
Maximum Fluid Pressure (bar) 138
Maximum Fluid Pressure (kPa) 13800
Maximum Fluid Pressure (kg/cm²) 141
Maximum Fluid Pressure (psi) 2000
Maximum Fluid Temperature (°C) 38
Minimum Air Inlet Pressure (bar) 0
Minimum Air Inlet Pressure (kPa) 0
Minimum Air Inlet Pressure (psi) 0
Mix Type External Mix
Model RS
Type Gel Coat Gun
