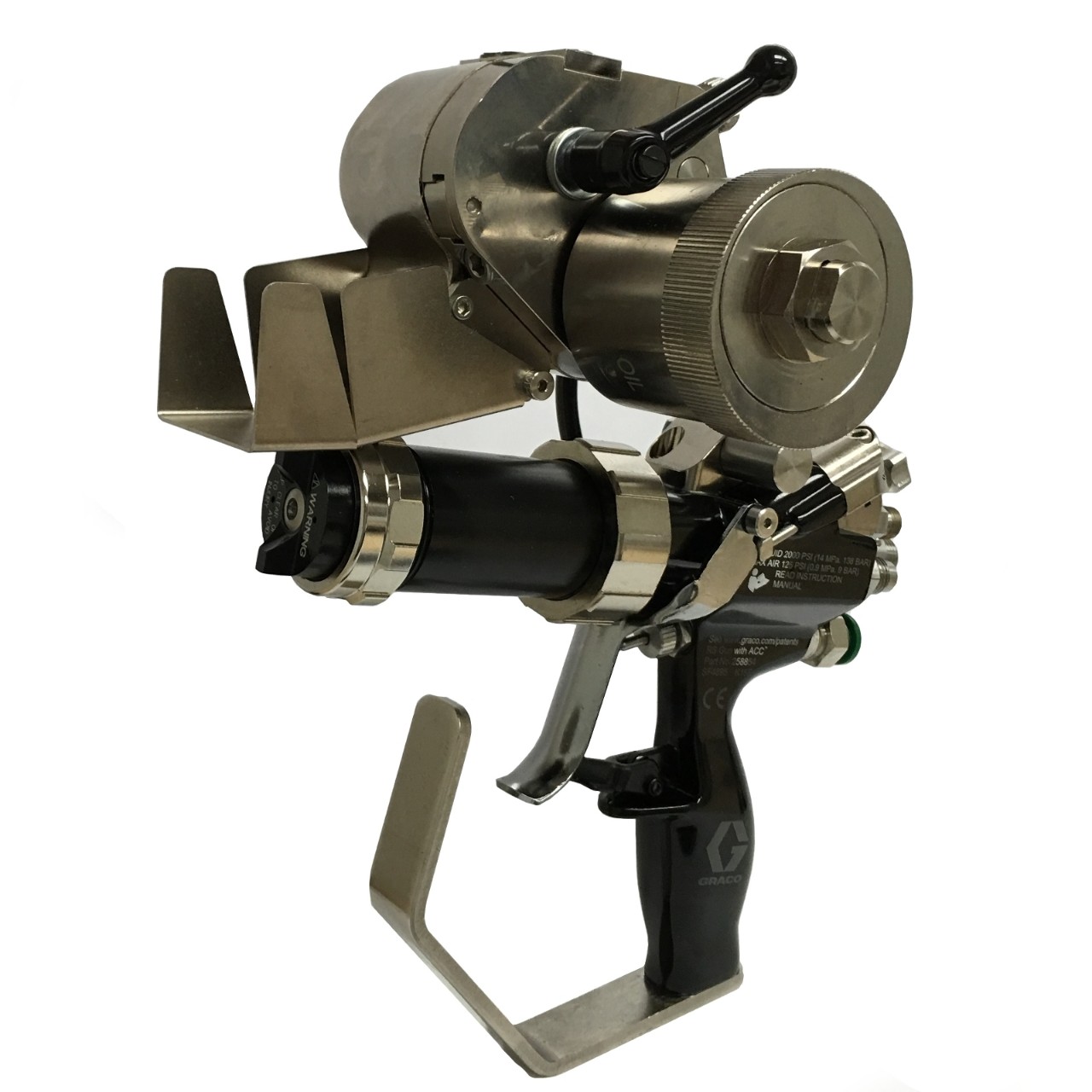

RS Internal Mix Chop Gun with Cutter and Tip
Part Number: 258971
RS
RS Internal Mix Chop Gun with Cutter and Tip
Part Number: 258971
Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco R...
More InfoFeatures
Product Brochure
Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.
Fibreglass chopper System for Open Moulding Handle fibreglass and catalysed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fibreglass on your open mould applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.
Makes production easier
- Simple, quick start up and shut down
- Quick tool-less blade change
- No need to adjust needle settings after maintenance
Improves product quality
- Lightweight cutter gives better chopping control
- Easy one-hand cutter speed control
- Superior spray pattern
Improves operator comfort for increased job satisfaction
- Lighter, ergonomic gun reduces fatigue
- Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
- No problems soaking the RS Gun in solvents overnight
Saves material costs
- Air Assist Containment (AAC®) standard on all RS Guns
- Lower pressure reduces overspray
Specifications & Documents
Technical Specifications
Convert to Imperial| Chop Gun Type | With Cutter |
|---|---|
| Compatible Material | Polyester Resin, Gel-Coat |
| For Use With | FRP System |
| Gun Type | Chop Gun |
| Gun Weight (lb) | 2.46 |
| Gun Weight (oz) | 39.36 |
| Includes | CST443 Tip, Cutter |
| Maximum Air Pressure (psi) | 125 |
| Maximum Fluid Pressure (psi) | 2000 |
| Maximum Fluid Temperature (°F) | 100 |
| Minimum Air Inlet Pressure (psi) | 80 |
| Mix Type | Internal Mix |
| Model | RS |
| Trigger Lock | Locking |
| Type | Chop Gun |
| Chop Gun Type | With Cutter |
| Compatible Material | Polyester Resin, Gel-Coat |
| For Use With | FRP System |
| Gun Type | Chop Gun |
| Gun Weight (g) | 1116 |
| Gun Weight (kg) | 1.12 |
| Gun Weight (oz) | 39.36 |
| Includes | CST443 Tip, Cutter |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (kg/cm²) | 8.79 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Fluid Pressure (bar) | 138 |
| Maximum Fluid Pressure (kPa) | 13800 |
| Maximum Fluid Pressure (kg/cm²) | 141 |
| Maximum Fluid Pressure (psi) | 2000 |
| Maximum Fluid Temperature (°C) | 38 |
| Minimum Air Inlet Pressure (bar) | 5.5 |
| Minimum Air Inlet Pressure (kPa) | 550 |
| Minimum Air Inlet Pressure (psi) | 80 |
| Mix Type | Internal Mix |
| Model | RS |
| Trigger Lock | Locking |
| Type | Chop Gun |
