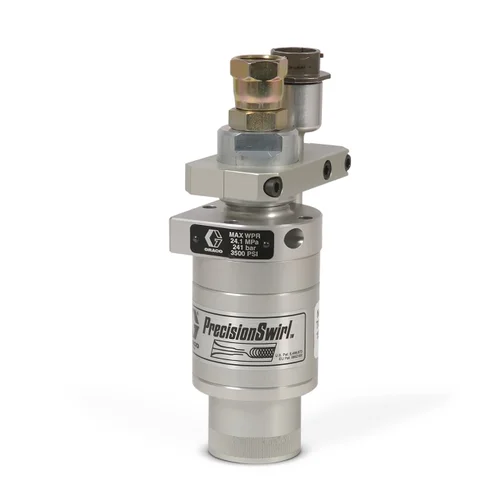

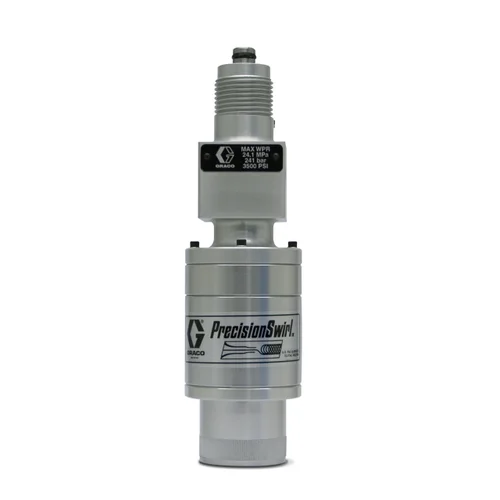

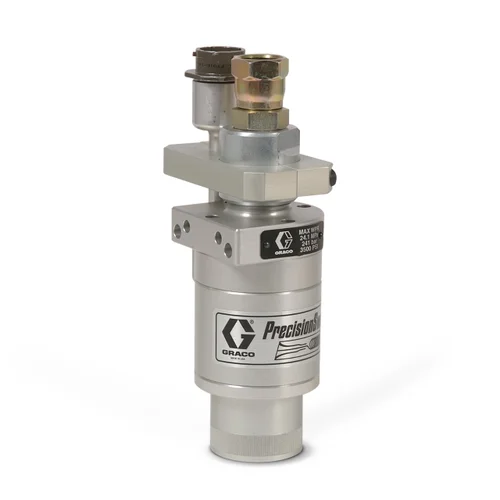

Precision Swirl
Applies a uniform, circular loop pattern with clean edges and no mess. PrecisionSwirl features adjustable rotational speed, stand-off distance and flow rate for greater control and for better penetration on irregular shaped parts. It is compatible with most sealants including expandable sealers, heat cure epoxy and PVC plastisol.
GRACO RELIABILITY
- Applies a uniform, circular loop pattern with clean edges and no mess.
- Dispenses open or closed, wide or narrow pattern beads for a variety of applications
- Simplifies robotics programming for directional changes
- An orbiting nozzle allows you to apply material on vertical and horizontal surfaces
- Reduces manual touch-up, masking and rework
Swivel Union
- Allows optimal valve and orbiter orientation for each installation
EnDure Valve
- Snuff-back gives a clean cut-off in the end of the bead
Aluminium Housing with Tool Mounts
- Precise repeatable installation
- No expensive robot reprogramming after servicing
- Light-weight for rapid application rates and minimal robot loading
No Dynamic Seals on Applicator
- High reliability and minimal downtime
- Maximises production time
Orbiting Nozzle
- Applies and accurate bead of material on vertical and horizontal surfaces
- Three offset options for varied bead widths
Round Orifice Carbide Tips
- Reduces tip wear
- No need for alignment after servicing for better uptime
Browse Precision Swirl
