GH 733ES

GH 733ES Gas Hydraulic Sprayer, Bare

16U279

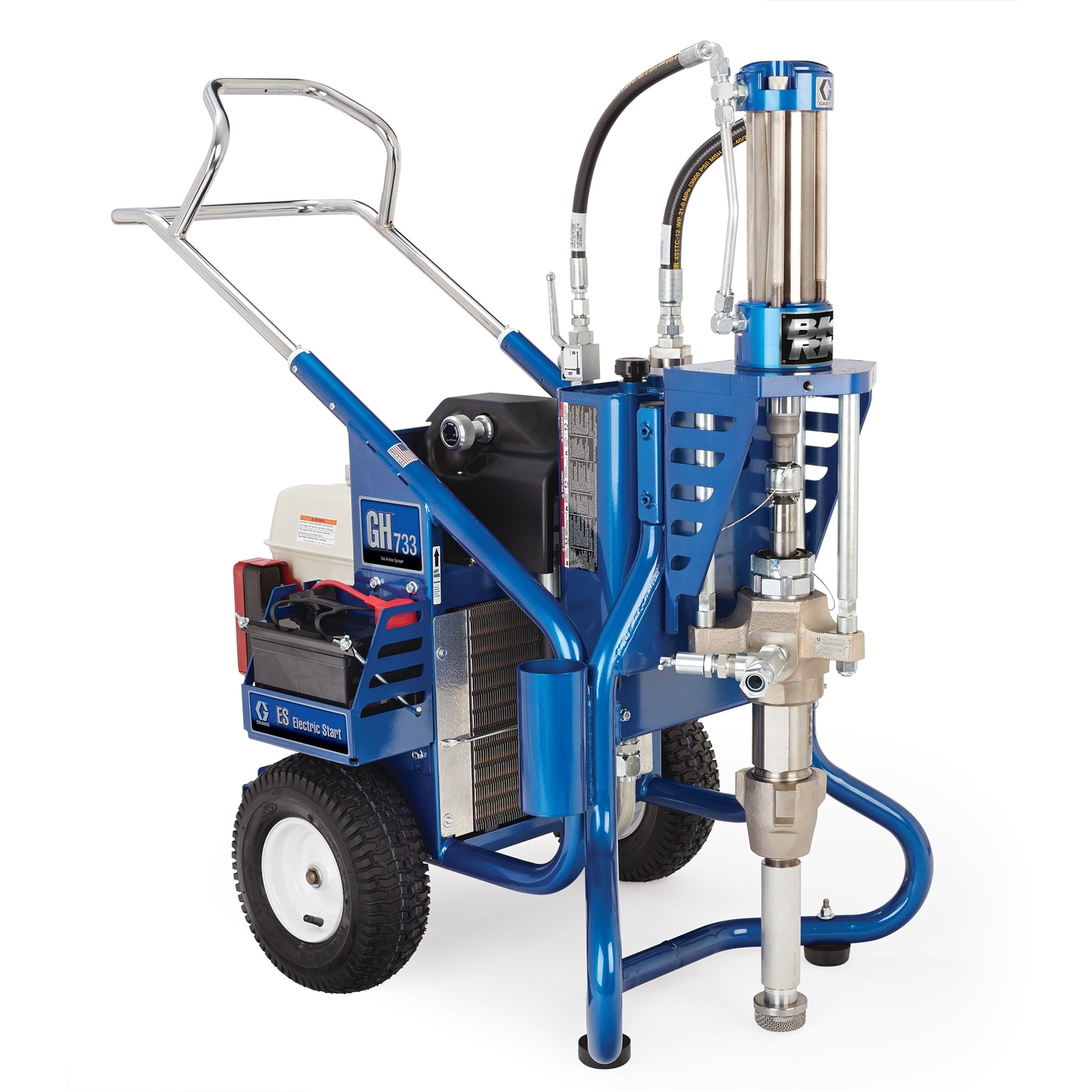

16U279_GH_733ES_Big_Rig_Bare_Sprayer_190319_Main 16U279_GH_733ES_Big_Rig_Bare_Sprayer_190319_Alt_1

GH 733ES

GH 733ES Gas Hydraulic Sprayer, Bare

16U279

For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 733ES can get the job done.

Features

Product Brochure
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 733ES can get the job done.

High production architectural coatings, bridges, waterproofing and air barrier, roofing, fire proofing and protective & marine coatings: spray the most aggressive applications, without the need of an expensive air compressor to carry around.

  • Honda® 390cc (13HP) Engine with Electric Start
    • Reliable and easy-to-start
    • Contractor-preferred - excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • High-capacity, 12V/18A charging system
  • Heavy-Duty Hydraulic System
    • Faster, more responsive changeover
    • O-ring sealed to eliminate leaks
    • High-precision pressure control
    • No hydraulic reset button needed
    • Durable hydraulic lines for long life
  • Heavy-Duty Cooling System
    • Large 15 liters hydraulic reservoir reducing downtime
    • Return line hydraulic filter extends life
    • Proven cooler and blower system
    • No special hydraulic fluid needed and easy-to-use drain plug
  • Heavy-Duty Steel Frame
    • Large pneumatic wheels roll over rough terrains
    • Enamel painted, sturdy welded frame protects against corrosion
    • Multi-function design converts into a skid mount in seconds
  • Xtreme Pump
    • Time tested durability and performance
    • Heavy-duty chromex piston rod and hard chrome sleeve for long life
    • Long life XtremeSeal™ and leather packings
    • Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminate downtime
  • Additional Features
    • Hose rack
    • Large diameter 1.25" ID Nylon siphon set
    • Lockable pressure control knob
    • Grounding wire for safety with solvent materials
16U279_GH_733ES_Big_Rig_Bare_Sprayer_190319_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing
Compatible Replacement Pump 16U753
Control Type N/A
Engine Brand Honda
Engine Size (HP) 13
Engine Size (kW) 9.7
Fluid Inlet Size (in) 1-1/4
Fluid Inlet Thread Type MNPT
Fluid Outlet Size (in) 3/4
Fluid Outlet Thread Type NPSF
Frame Configuration Cart
Material Application Paints, Primers
Maximum Flow Rate (GPM) 4.0
Maximum Sound Pressure Level (dB(A)) 91
Maximum Tip Size (in) 0.065
Maximum Tip Size 1 Gun (in) 0.065
Maximum Tip Size 2 Guns (in) 0.046
Maximum Tip Size 3 Guns (in) 0.037
Maximum Tip Size 4 Guns (in) 0.032
Maximum Tip Size 5 Guns (in) 0.029
Maximum Tip Size 6 Guns (in) 0.026
Maximum Working Pressure (psi) 4000
Model GH
Motor Type Hydraulic Motor
Overall Height (in) 49
Overall Length (in) 43
Overall Width (in) 28
Power Rating (HP) 13
Power Rating (kW) 9.7
Power Source Gas Hydraulic
Product Type Single Leg
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Type Xtreme
Series 733ES
Standards Met CE
Type Airless Sprayer
Weight (lb) 434
Wetted Material Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten
Compatible Material Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing
Compatible Replacement Pump 16U753
Control Type N/A
Engine Brand Honda
Engine Size (HP) 13
Engine Size (kW) 9.7
Fluid Inlet Size (cm) 3.18
Fluid Inlet Thread Type MNPT
Fluid Outlet Size (cm) 2.54
Fluid Outlet Thread Type NPSF
Frame Configuration Cart
Material Application Paints, Primers
Maximum Flow Rate (L/min) 15.1
Maximum Sound Pressure Level (dB(A)) 91
Maximum Tip Size (cm) 0.1651
Maximum Tip Size (mm) 1.6510
Maximum Tip Size 1 Gun (cm) 0.1651
Maximum Tip Size 1 Gun (mm) 1.6510
Maximum Tip Size 2 Guns (cm) 0.1168
Maximum Tip Size 2 Guns (mm) 1.1684
Maximum Tip Size 3 Guns (cm) 0.0940
Maximum Tip Size 3 Guns (mm) 0.9398
Maximum Tip Size 4 Guns (cm) 0.0813
Maximum Tip Size 4 Guns (mm) 0.8128
Maximum Tip Size 5 Guns (cm) 0.0737
Maximum Tip Size 5 Guns (mm) 0.7366
Maximum Tip Size 6 Guns (cm) 0.0660
Maximum Tip Size 6 Guns (mm) 0.6604
Maximum Working Pressure (bar) 276
Maximum Working Pressure (kPa) 2760
Model GH
Motor Type Hydraulic Motor
Overall Height (cm) 124
Overall Height (mm) 1244.6000
Overall Length (cm) 109
Overall Length (mm) 1092.2
Overall Width (cm) 71
Overall Width (mm) 711.2000
Power Rating (HP) 13
Power Rating (cc) 390
Power Rating (kW) 9.7
Power Source Gas Hydraulic
Product Type Single Leg
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Type Xtreme
Series 733ES
Standards Met CE
Type Airless Sprayer
Weight (kg) 197
Wetted Material Carbide, Leather, Nitralloy, PTFE, Polyethylene, Stainless Steel, Tungsten
