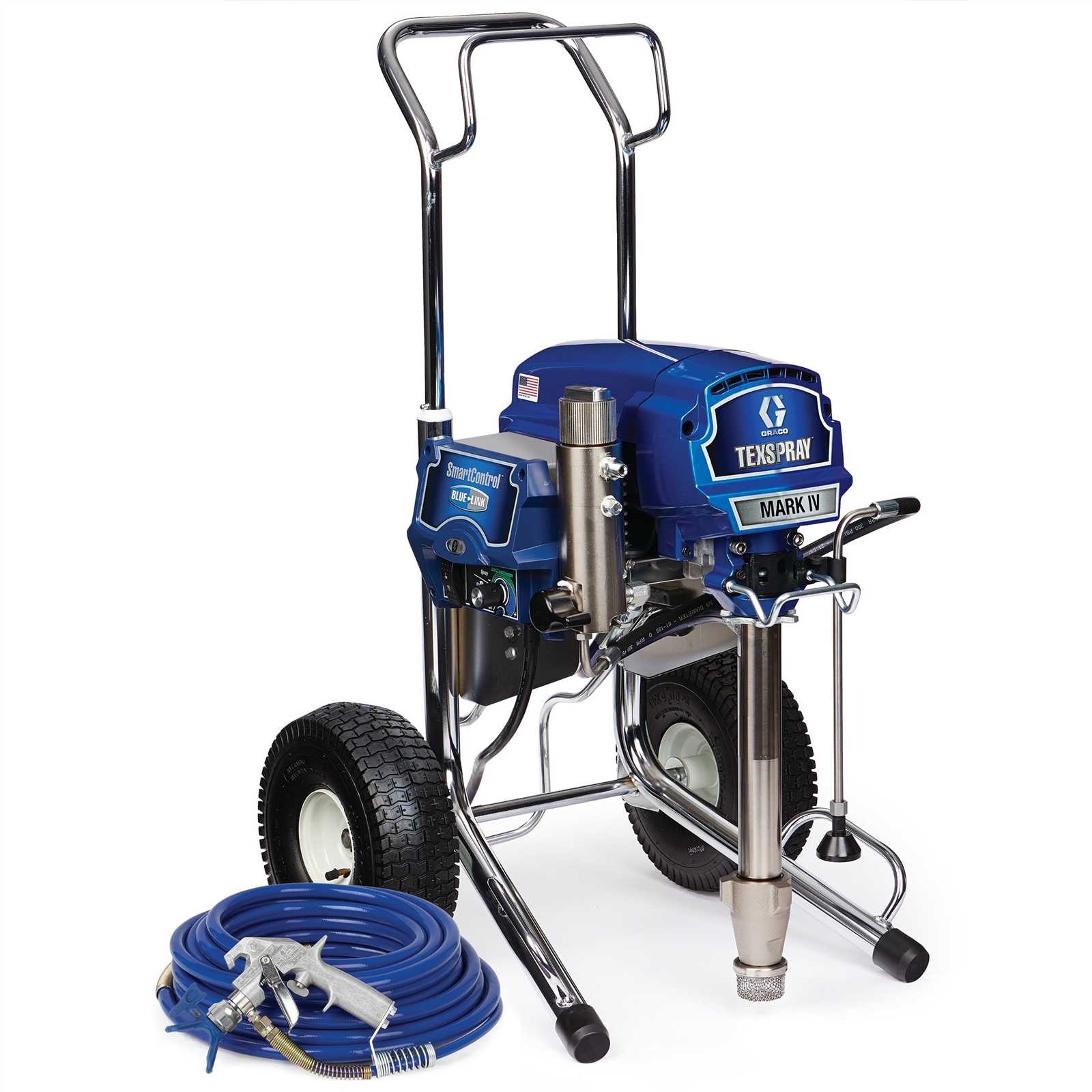

Mark IV HD 3-in-1 Standard Series Electric Airless Sprayer

Part Number: 17E603

product image

Mark HD IV

Mark IV HD 3-in-1 Standard Series Electric Airless Sprayer

Part Number: 17E603

The Mark IV HD is designed to save time and money by allowing you to spray more square footage in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Mark IV HD is designed to save time and money by allowing you to spray more square footage in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.

Everyday Reliability. Mark HD Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.

  • Endurance Chromex Piston Pump
    • The most reliable pump
    • Lasts 2X longer than the next leading brand
    • Long life ceramic and stainless steel balls included for maximum versatility
    • Faster cleaning with the QuikAccess intake foot valve
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
  • SmartControl 4.0 with ProGuard Protection System
    • Precision pressure control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • Prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low
  • FastFlush 2 System
    • Fast cleaning now even FASTER
    • Clean the pump 6X faster using ½ the water
    • High-velocity fluid flow delivered with 60% higher motor speed
  • MaxPower DC Motor & Advantage Drive
    • Maintenance-Free Power
    • Field proven brushless design
    • The Longest Lasting Drive
    • Improved jobsite conditions with extremely quiet operation
  • WatchDog Pump Protection System
    • Prevents dry pumping damage
    • Automatically shuts pump down when if the material supply is too low
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
  • Heavy-Duty Prime Valve
    • Maintenance-free high-pressure dumping capability
  • Rugged, Durable Cart Design
    • Rugged and easy-to-move
    • Withstands tough jobsite conditions while absorbing impacts and vibrations
    • Easy hose storage with integrated hose wrap and telescoping handle
    • Easy loading with built-in lift handles

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 15
Compatible Replacement Pump 17H828
Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
Convertible Non-Convertible
Engine Size (HP) 2.2
Features Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Includes FlexPlus Gun, RAC X LTX 425 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Maximum Flow Rate (GPM) 1.1
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.033
Maximum Tip Size 1 Gun (in) 0.033
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Mark HD
Motor Type MaxPower
Number of Guns 1
Overall Height (in) 38.75
Overall Length (in) 26
Overall Width (in) 22.5
Power Rating (HP) 2.2
Power Rating (W) 1641
Power Rating (kW) 1.64
Power Source Electric
Pressure Control Type SmartControl 4.0
Product Series Standard
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Recommended Annual Usage 100-200 gallons per week
Series IV
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 195
Weight (lb) 98
Amperage (A) 15
Compatible Replacement Pump 17H828
Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
Convertible Non-Convertible
Features Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, FastFlush 2, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Outlet Size (in) 3/8
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Includes FlexPlus Gun, RAC X LTX 425 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Maximum Flow Rate (L/min) 4.1
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.033
Maximum Tip Size 1 Gun (in) 0.033
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Mark HD
Motor Type MaxPower
Number of Guns 1
Overall Height (cm) 98.4
Overall Height (mm) 984
Overall Length (cm) 66
Overall Length (mm) 660
Overall Width (cm) 57.2
Overall Width (mm) 572
Power Rating (W) 1641
Power Rating (kW) 1.64
Power Source Electric
Pressure Control Type SmartControl 4.0
Product Series Standard
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Recommended Annual Usage 100-200 gallons per week
Series IV
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 195
Weight (kg) 45

What's Included

Part No. Description Qty Unit
246468 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC X 1 ea
LTX427 RAC X SwitchTip, 427 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea
246215 RAC X HandTite Tip Guard 1 ea

Repair Parts

Part No. Description
244068 Easy Out Pump Manifold Filter, Long, 100 mesh
244069 Easy Out Pump Manifold Filter, Long, 200 mesh
244071 Easy Out Pump Manifold Filter, Long, 30 mesh
244067 Easy Out Pump Manifold Filter, Long, 60 mesh
246468 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC X
248214 KIT, REPAIR, INTAKE TUBE
257186 KIT, REPAIR, MOTOR, C104 795
244240 KIT, REPAIR, RETURN LINE, HI
189920 Inlet Strainer, SST Cap Single Screen, 1 in
243222 Pressure Control Transducer Repair Kit
117285 PACKING, O-RING
116752 SWITCH, ROCKER
24B156 HD Prime Valve
