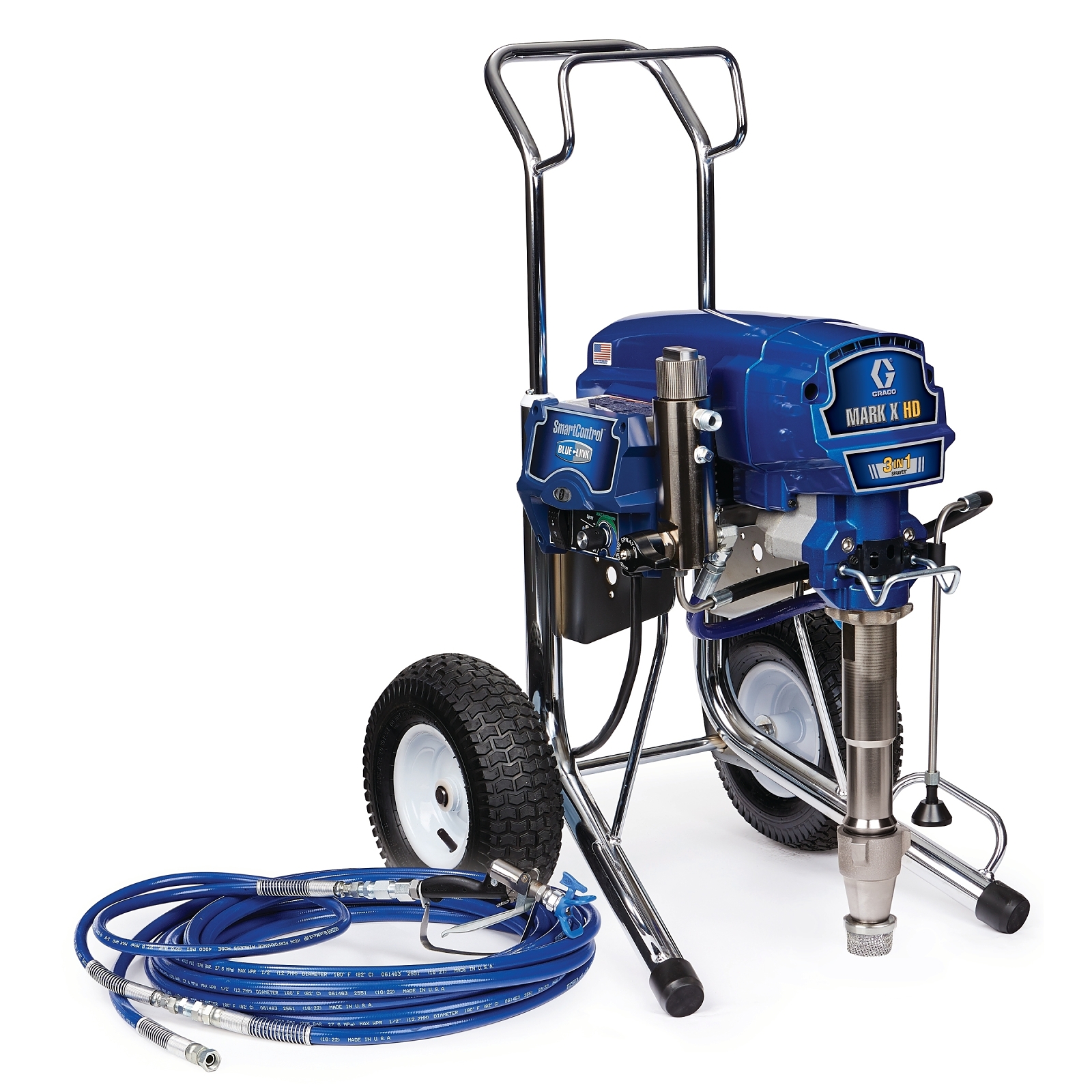

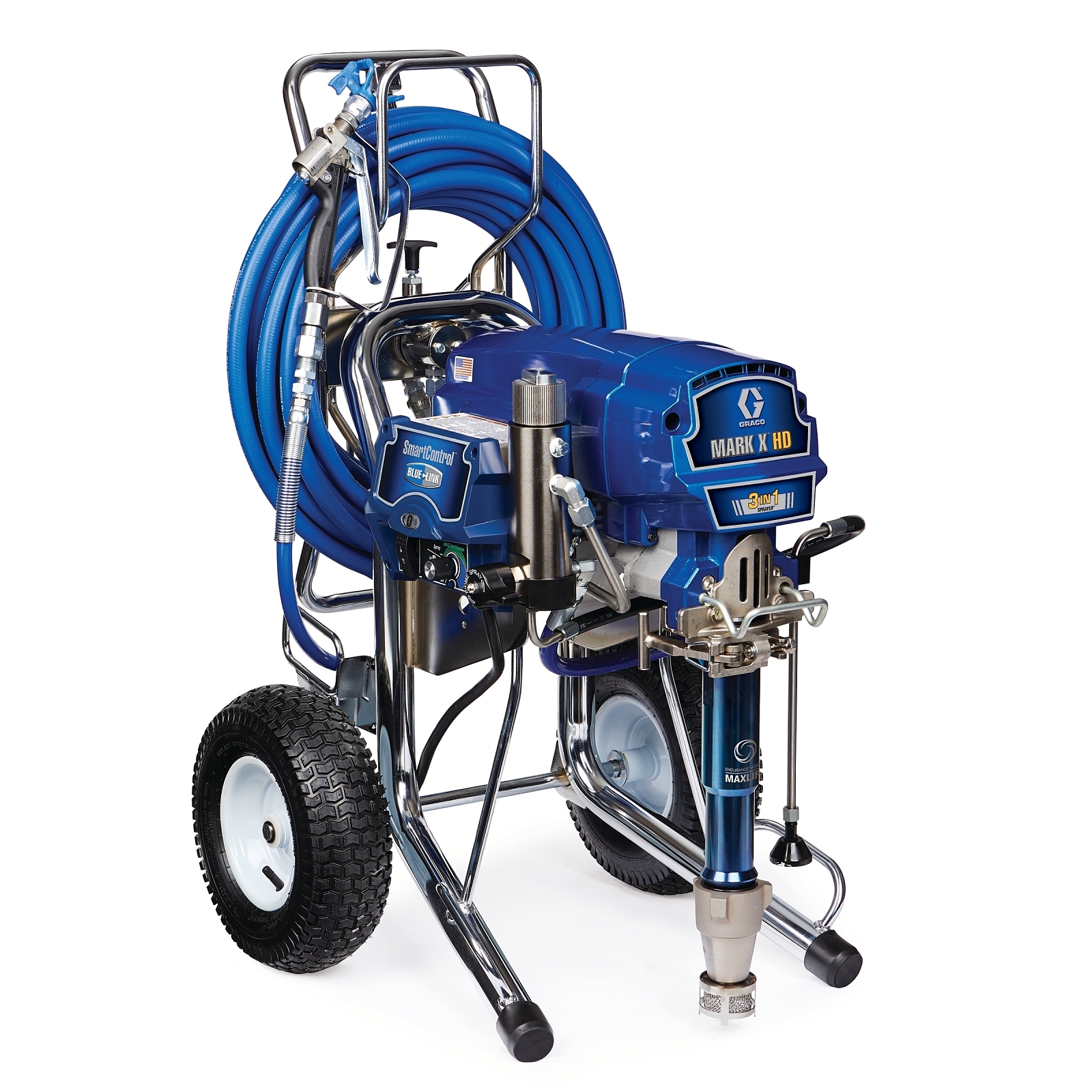

Mark X HD 3-in-1 Standard Series Electric Airless Sprayer

Part Number: 17E608

product image

Mark HD X

Mark X HD 3-in-1 Standard Series Electric Airless Sprayer

Part Number: 17E608

THE most powerful electric airless texture sprayer. The Mark X HD 240 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V HD. It easily sprays skim coat in a Level 5 finish, multiple texture finishes and the all primers and paints.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
THE most powerful electric airless texture sprayer. The Mark X HD 240 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V HD. It easily sprays skim coat in a Level 5 finish, multiple texture finishes and the all primers and paints.

Everyday Reliability. Mark HD Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.

  • Endurance Chromex Piston Pump
    • The most reliable pump
    • Lasts 2X Longer than the next leading brand
    • Long life ceramic and stainless steel balls included for maximum versatility
    • Faster cleaning with the QuikAccess intake foot valve

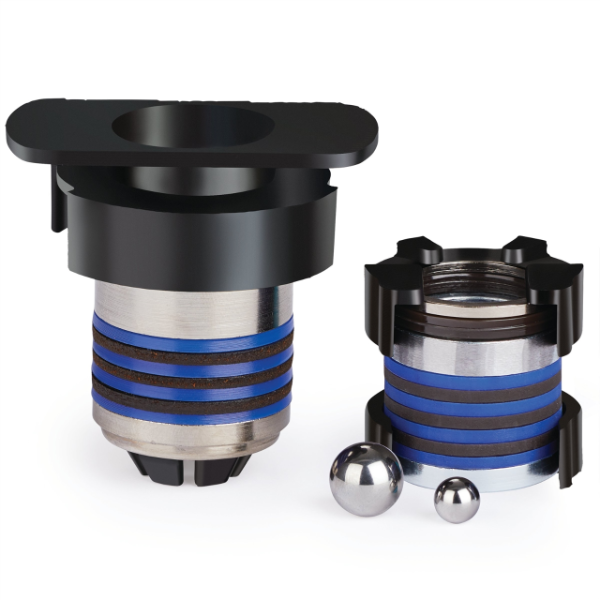

  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
  • SmartControl 4.0 with ProGuard Protection System
    • Precision pressure control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • Prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low
  • Worry-Free MaxPower Motor
    • Get more work done
    • Proven performance for all painting applications
    • High-torque brushless design with a Lifetime Warranty
    • Use longer cords, regardless of voltage fluctuations
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved jobsite conditions with extremely quiet operation
    • Lifetime Warranty
  • WatchDog Pump Protection System
    • Prevents dry pumping damage
    • Automatically shuts pump down when if the material supply is too low
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
  • Heavy-Duty Prime Valve
    • Maintenance-free high-pressure dumping capability
  • Rugged, Durable Cart Design
    • Rugged and easy-to-move
    • Withstands tough jobsite conditions while absorbing impacts and vibrations
    • Easy hose storage with integrated hose wrap and telescoping handle
    • Easy loading with built-in lift handles

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 16
Compatible Replacement Pump 17H831
Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
Convertible Non-Convertible
Engine Size (HP) 4
Features Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Outlet Size (in) 1/2
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Includes Inline Heavy-Duty Texture Gun, RAC X LTX 531 Spray Tip, RAC X LTX 541 Spray Tip, RAC X Guard, 1/2 in x 50 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in Airless Whip Hose
Maximum Flow Rate (GPM) 2.1
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.045
Maximum Tip Size 1 Gun (in) 0.045
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Mark HD
Motor Type MaxPower
Number of Guns 1
Overall Height (in) 40.1
Overall Length (in) 26
Overall Width (in) 24
Power Rating (HP) 4.0
Power Rating (W) 2983
Power Rating (kW) 2.98
Power Source Electric
Pressure Control Type SmartControl 4.0
Product Series Standard
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Series X
Type Airless Sprayer
Voltage (V) 230
Volume Per Cycle (cycles/gal) 70
Weight (lb) 154
Amperage (A) 16
Compatible Replacement Pump 17H831
Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
Convertible Non-Convertible
Features Endurance Chromex Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Outlet Size (in) 1/2
Fluid Outlet Size (mm) 12.7
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Includes Inline Heavy-Duty Texture Gun, RAC X LTX 531 Spray Tip, RAC X LTX 541 Spray Tip, RAC X Guard, 1/2 in x 50 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in Airless Whip Hose
Maximum Flow Rate (L/min) 8.0
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.045
Maximum Tip Size 1 Gun (in) 0.045
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Mark HD
Motor Type MaxPower
Number of Guns 1
Overall Height (cm) 102
Overall Height (mm) 1020
Overall Length (cm) 66
Overall Length (mm) 660
Overall Width (cm) 61
Overall Width (mm) 610
Power Rating (W) 2983
Power Rating (kW) 2.98
Power Source Electric
Pressure Control Type SmartControl 4.0
Product Series Standard
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Series X
Type Airless Sprayer
Voltage (V) 230
Volume Per Cycle (cycles/gal) 70
Weight (kg) 70

What's Included

Part No. Description Qty Unit

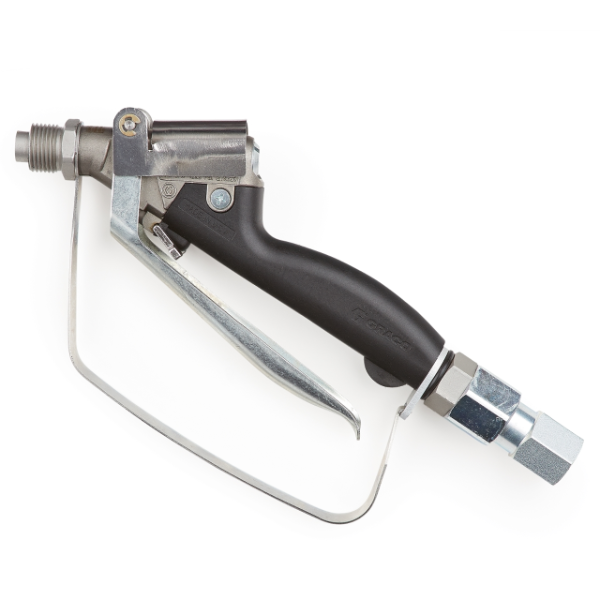

245820 Inline Heavy-Duty Texture Airless Spray Gun, 4 Finger Trigger 1 ea
LTX531 RAC X SwitchTip, 531 1 ea
LTX541 RAC X SwitchTip, 541 1 ea
246215 RAC X HandTite Tip Guard 1 ea
278499 HOSE, CPLD, 1/2 IN X 50 FT 1 ea

Repair Parts

Part No. Description
244068 Easy Out Pump Manifold Filter, Long, 100 mesh
244069 Easy Out Pump Manifold Filter, Long, 200 mesh
244071 Easy Out Pump Manifold Filter, Long, 30 mesh
244067 Easy Out Pump Manifold Filter, Long, 60 mesh
278499 HOSE, CPLD, 1/2 IN X 50 FT
245103 Q KIT REPAIR, DRAIN VALVE
258909 KIT, REPAIR, MOTOR
244240 KIT, REPAIR, RETURN LINE, HI
189920 Inlet Strainer, SST Cap Single Screen, 1 in
243222 Pressure Control Transducer Repair Kit
16Y496 KIT,DISPLAY, GMAX, PREMIUM
24V029 KIT,REPAIR,HOSE,COUPLED, 1/2"
117285 PACKING, O-RING
15D527 SWITCH, ROCKER, 240V
16T483 PLUG, HOLE, SWITCH
245820 Inline Heavy-Duty Texture Airless Spray Gun, 4 Finger Trigger
