LineLazer V 200HS

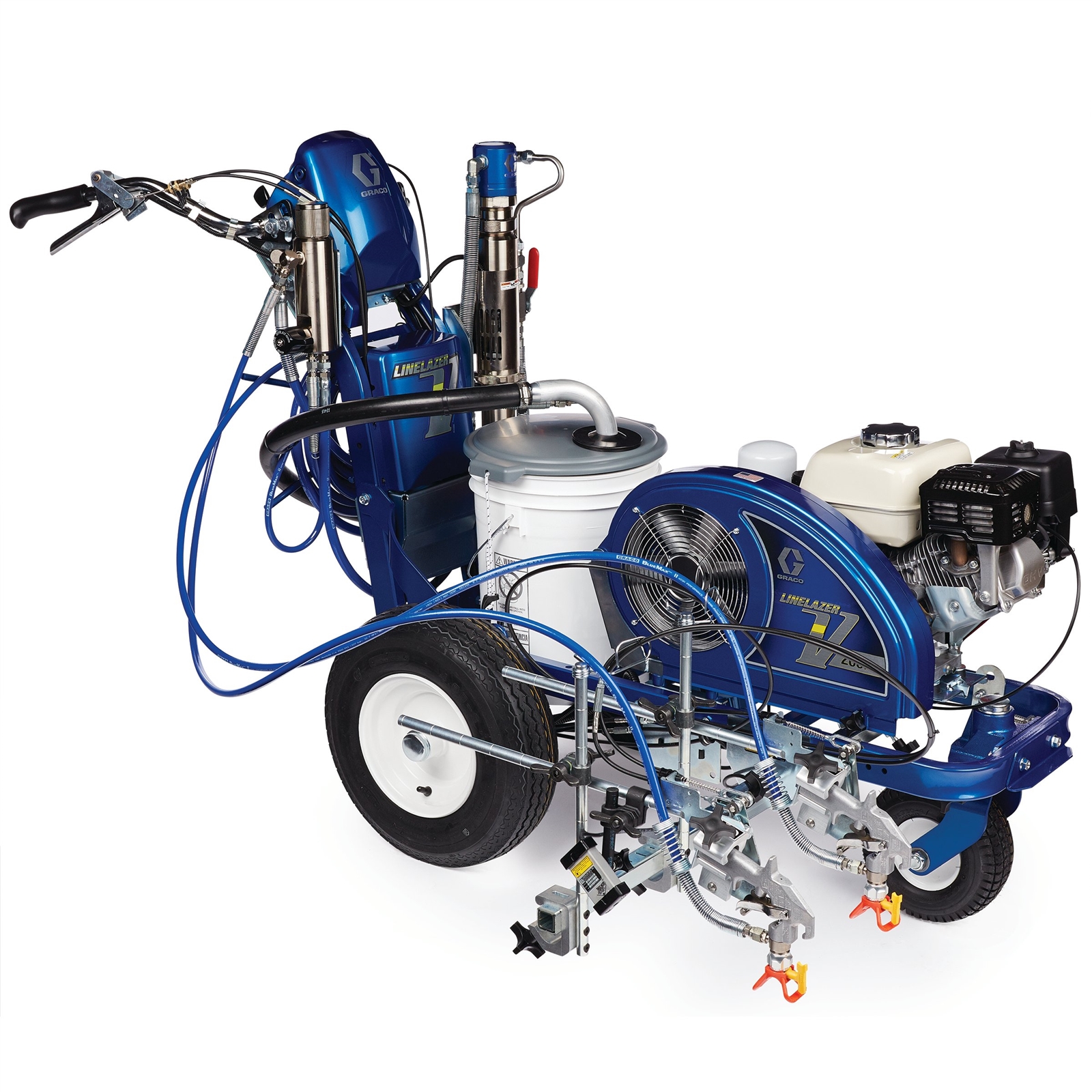

LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 1 Auto Gun, 1 Manual Gun

17H463

17H463_LineLazer_V_200HS_HP_Automatic_190604_Main

LineLazer V 200HS

LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 1 Auto Gun, 1 Manual Gun

17H463

With high production features, the LineLazer V 200HS HP Automatic Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
With high production features, the LineLazer V 200HS HP Automatic Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Auto-Layout II
    • Simplify Parking Lot Layout
    • SmartControl measures while you walk and puts down pre-marks
    • No need for measuring tape, string lines or aerosol cans
    • Cuts your layout time in half
  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • J-Log System with USB Download
    • Valuable Job Information
    • Proof of job = More striping opportunities.
    • USB download capability allows you to capture and save all job data
  • Honda GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Additional Features
    • High-Efficiency Hydraulic Motor
    • High-Capacity Cooling System
    • QuikSelect Gun Selector
    • Easy Out Pump Filter
    • LazerGuide 1700 Start/Stop Laser
17H463_LineLazer_V_200HS_HP_Automatic_190604_Main

Specifications

Technical Specifications

Convert to Metric
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX200
Fuel Tank Capacity (gal) 0.95
Gun Activation Automatic, Manual
Includes LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (GPM) 2.15
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (in) 0.047
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Power Rating (HP) 6.5
Power Rating (W) 4850
Power Rating (kW) 4.85
Power Source Gas Hydraulic
Pump Type Endurance
Series 200HS
Standards Met CE
Type Walk-Behind Line Striper
Weight (lb) 322
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX200
Fuel Tank Capacity (L) 3.6
Gun Activation Automatic, Manual
Includes LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (L/min) 8.14
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (cm) 0.1194
Maximum Tip Size (mm) 1.194
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Power Rating (HP) 6.5
Power Rating (W) 4850
Power Rating (kW) 4.85
Power Source Gas Hydraulic
Pump Type Endurance
Series 200HS
Standards Met CE
Type Walk-Behind Line Striper
Weight (kg) 146.1

What's Included

Part No. Description Qty Unit
25A530 KIT, ACCESSORY, LAZERGUIDE 1700 1 ea
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 2 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
124884 HOSE, CPLD, 3/8" X 22' 1 ea
245226 HOSE, CPLD, 3/8" X 3' 1 ea
