LineDriver

LineDriver Ride-On Attachment

Part Number: 262004

product image

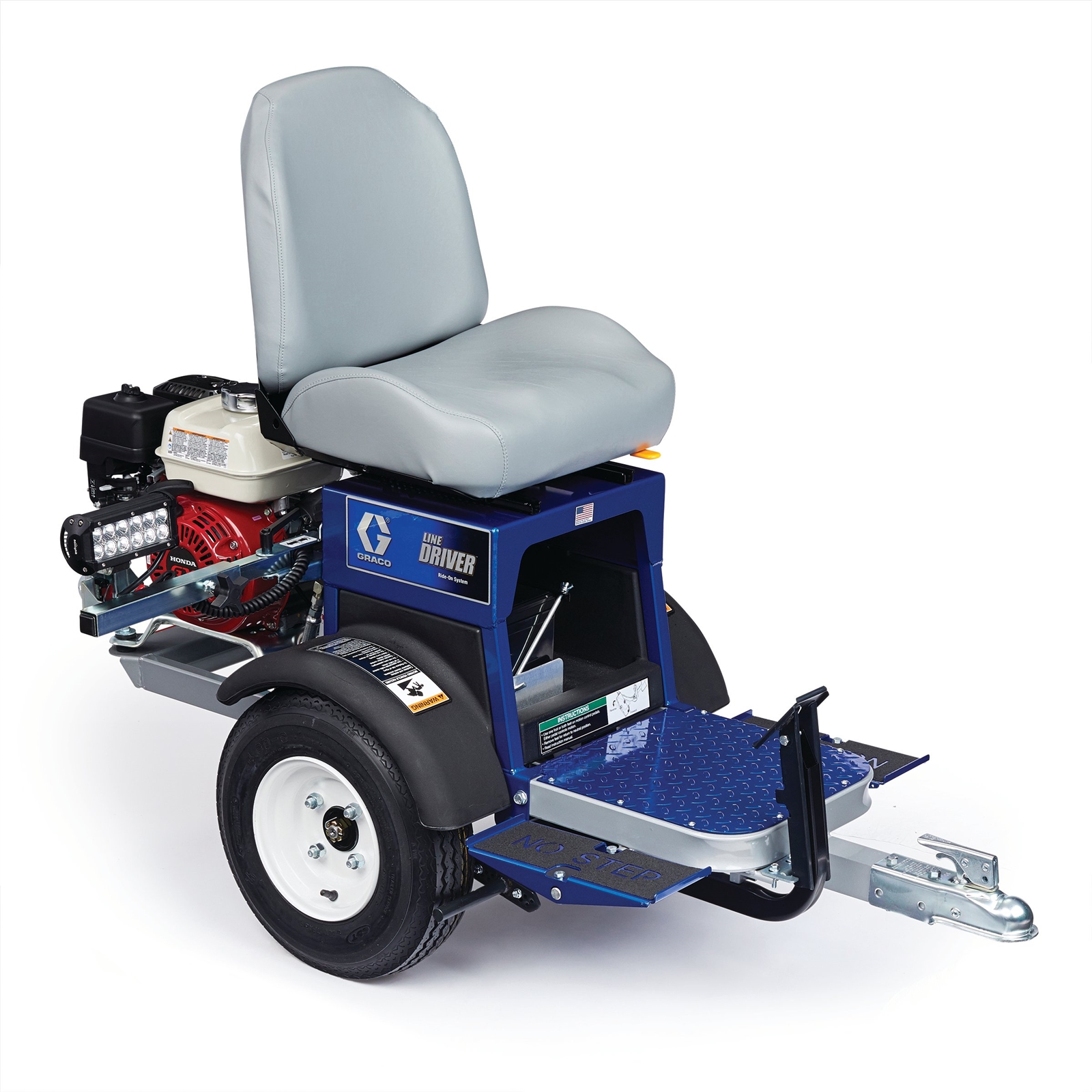

LineDriver

LineDriver Ride-On Attachment

Part Number: 262004

Why walk when you can ride? Graco LineDriver Systems provide the most innovative, user-friendly ride-on systems in the industry. The LineDriver is the industry standard ride-on system that will help you maximize productivity on any striping, thermoplastic and scarifying application.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Why walk when you can ride? Graco LineDriver Systems provide the most innovative, user-friendly ride-on systems in the industry. The LineDriver is the industry standard ride-on system that will help you maximize productivity on any striping, thermoplastic and scarifying application.
  • FlexBeam LED Light System
    • LED light for improved brightness with long life and less amp draw
    • Retractable, breakaway design prevents damage and keeps you striping

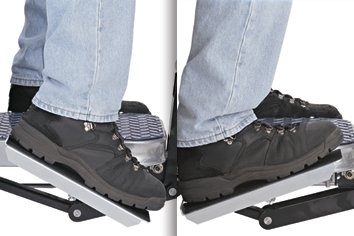

  • Patented Dual Foot Pedal System
    • For forward and reverse
    • Easily move between jobs without having to push
  • ProStart Engine Starting System
    • Easy Starting
    • Up to 50% less pulling effort to start the engine—no more broken recoils
    • Outperforms manual pull and electric start systems when the weather starts turning cooler
  • Honda® GX Engine
    • Reliable, technologically advanced, and easy to start
    • Oil Alert shuts down engine if oil level drops too low, preventing damage
    • Contractor preferred
  • Cool-Comfort Seat
    • Gray color stays cool in direct sunlight
    • High-back seat for added support
    • Extra padding for all-day comfort

Specifications & Documents

Technical Specifications

Convert to Metric
Engine Brand Honda
Engine Model GX Engine
For Use With GrindLazer, ThermoLazer 300TC, ThermoLazer ProMelt, LineLazer 130HS, LineLazer ES 1000, LineLazer V 200HS, LineLazer V 250DC, LineLazer V 250SPS, LineLazer V 3900, LineLazer V 5900
Fuel Tank Capacity (gal) 0.95
Maximum Operating Speed (mph) 10
Maximum Reverse Speed (mph) 6
Model LineDriver
Power Rating (HP) 5.5
Power Rating (kW) 4.1
Type Ride-On Attachment
Engine Brand Honda
Engine Model GX Engine
For Use With GrindLazer, ThermoLazer 300TC, ThermoLazer ProMelt, LineLazer 130HS, LineLazer ES 1000, LineLazer V 200HS, LineLazer V 250DC, LineLazer V 250SPS, LineLazer V 3900, LineLazer V 5900
Fuel Tank Capacity (L) 3.6
Maximum Operating Speed (km/h) 16
Maximum Operating Speed (mph) 10
Maximum Reverse Speed (km/h) 10
Maximum Reverse Speed (mph) 6
Model LineDriver
Power Rating (cc) 160
Power Rating (kW) 4.1
Type Ride-On Attachment

Repair Parts

Part No. Description
246385 Inlet Strainer, Nylon Cap, 7/8 in
247930 KIT, REPAIR,HYDRAULIC PUMP
