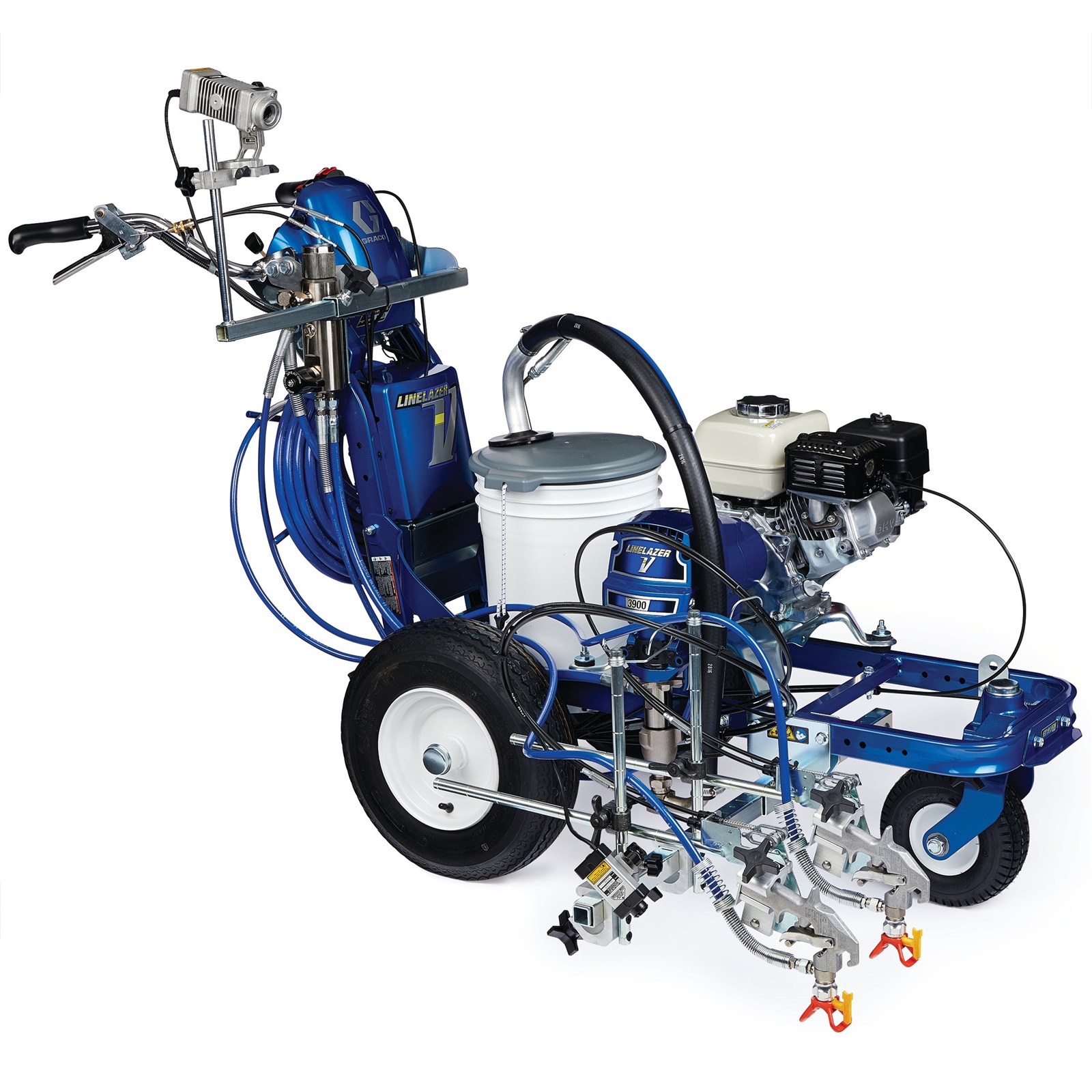

LineLazer V 3900

LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns, LazerGuide 2000

Part Number: 17U805

For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster and increase your profitability.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster and increase your profitability.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Auto-Layout II
    • Simplify Parking Lot Layout
    • SmartControl measures while you walk and puts down pre-marks
    • No need for measuring tape, string lines or aerosol cans
    • Cuts your layout time in half
  • LazerGuide 2000 Laser-Guided Layout System
    • Improve productivity with less set-up time for higher profits
    • Easy, one-person laser-quality line production
    • Eliminate the need for tape measures, string or chalk
  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • J-Log System with USB Download
    • Valuable Job Information
    • Proof of job = More striping opportunities.
    • USB download capability allows you to capture and save all job data
  • Honda GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • Additional Features
    • Endurance Chromex Pump
    • QuikSelect Gun Selector
    • Easy Out Pump Filter
    • LazerGuide 1700 Start/Stop Laser

Specifications & Documents

Technical Specifications

Convert to Metric
Attachments LazerGuide 2000, LazerGuide 1700
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX120
Features SmartControl
Fuel Tank Capacity (gal) 0.66
Gun Activation 2 Automatic
Includes LazerGuide 2000, LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (GPM) 1.25
Maximum Tip Size (in) 0.036
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Power Rating (HP) 4
Power Rating (W) 2980
Power Rating (kW) 2.98
Power Source Gas
Product Series HP Automatic
Pump Type Endurance
Series 3900
Type Walk-Behind Line Striper
Weight (lb) 240
Attachments LazerGuide 2000, LazerGuide 1700
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX120
Features SmartControl
Fuel Tank Capacity (L) 2.5
Gun Activation 2 Automatic
Includes LazerGuide 2000, LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (L/min) 4.73
Maximum Tip Size (cm) 0.0914
Maximum Tip Size (in) 0.036
Maximum Tip Size (mm) 0.914
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Power Rating (W) 2980
Power Rating (kW) 2.98
Power Source Gas
Product Series HP Automatic
Pump Type Endurance
Series 3900
Type Walk-Behind Line Striper
Weight (kg) 109

What's Included

Part No. Description Qty Unit
17T540 KIT, LL V, HP, AUTO, LG 2000 1 ea
25A530 KIT, ACCESSORY, LAZERGUIDE 1700 1 ea
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 2 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
245226 HOSE, CPLD, 3/8" X 3' 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea

Repair Parts

Part No. Description
245103 Q KIT REPAIR, DRAIN VALVE
245797 KIT, REPAIR, HOSE
117285 PACKING, O-RING
181072 Inlet Strainer, SST Cap Double Screen, 1 in
128783 SWITCH,ROCKER, DPDT
