Silver Plus

Silver Plus Airless Spray Gun, 2 Finger Trigger, Fine Finish Flat Tip

235462

235462_Silver_Plus_Flat_TIp_Gun_Main 235462_Silver_Plus_Flat_TIp_Gun_Alt_1

Silver Plus

Silver Plus Airless Spray Gun, 2 Finger Trigger, Fine Finish Flat Tip

235462

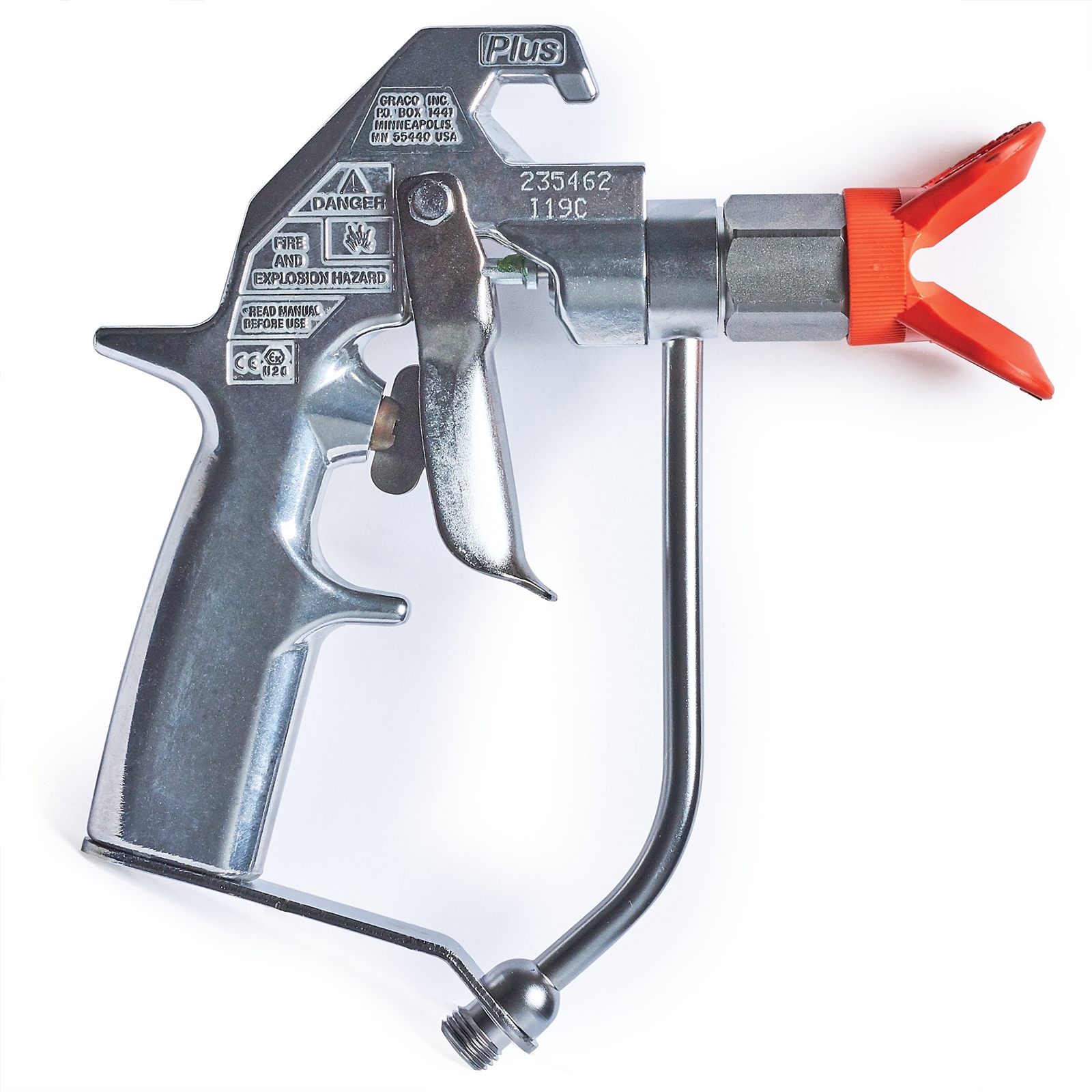

The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a Fine Finish Flat Tip Guard.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a Fine Finish Flat Tip Guard.
  • Rugged Design
    • Durable forged aluminum withstands harsh work environments
    • Lighter weight than competitive guns Polished body is easy to clean
  • Exclusive Needle Design
    • Factory set needle needs no trigger adjustments
    • Guaranteed for life against breakage
    • Maximum performance and long life
  • Stainless Steel Fluid Tube
    • Fluid flows directly to the tip through the gun fluid tube
    • Provides the ability to spray heavier materials
    • Including high solid coatings and mastics
  • Light Viscosity Needle Kit
    • Provides faster shut-off to reduce spitting of light viscosity material
    • Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)
235462_Silver_Plus_Flat_TIp_Gun_Alt_1

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Body Material Aluminum
Component A Inlet Size (in) 1/4
Component A Inlet Thread Type NPSM
Component Type Single Component
Fluid Orifice Size (in) 0.037
For Use With High Pressure Application
Gun Activation Manual
Gun Type Airless Gun
Includes Fine Finish Flat Tip Guard
Maximum Fluid Pressure (MPa) 34.5
Maximum Fluid Pressure (psi) 5000
Maximum Fluid Temperature (°F) 120
Model Silver Plus
Purge Method Liquid
Sound Power Level (dB(A)) 87
Sound Pressure Level (dB(A)) 78
Trigger Lock Locking
Trigger Type Two-Finger
Type Spray Gun
Air Inlet Size (cm) 0.635
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Body Material Aluminum
Component A Inlet Size (cm) 0.635
Component A Inlet Size (mm) 6.35
Component A Inlet Thread Type NPSM
Component Type Single Component
Fluid Orifice Size (cm) 0.094
Fluid Orifice Size (mm) 0.94
For Use With High Pressure Application
Gun Activation Manual
Gun Type Airless Gun
Includes Fine Finish Flat Tip Guard
Maximum Fluid Pressure (MPa) 34.5
Maximum Fluid Pressure (bar) 345
Maximum Fluid Pressure (kPa) 34500
Maximum Fluid Temperature (°C) 50
Model Silver Plus
Purge Method Liquid
Sound Power Level (dB(A)) 87
Sound Pressure Level (dB(A)) 78
Trigger Lock Locking
Trigger Type Two-Finger
Type Spray Gun
