ThermoLazer ProMelt

ThermoLazer ProMelt Thermoplastic Striping System

24H624

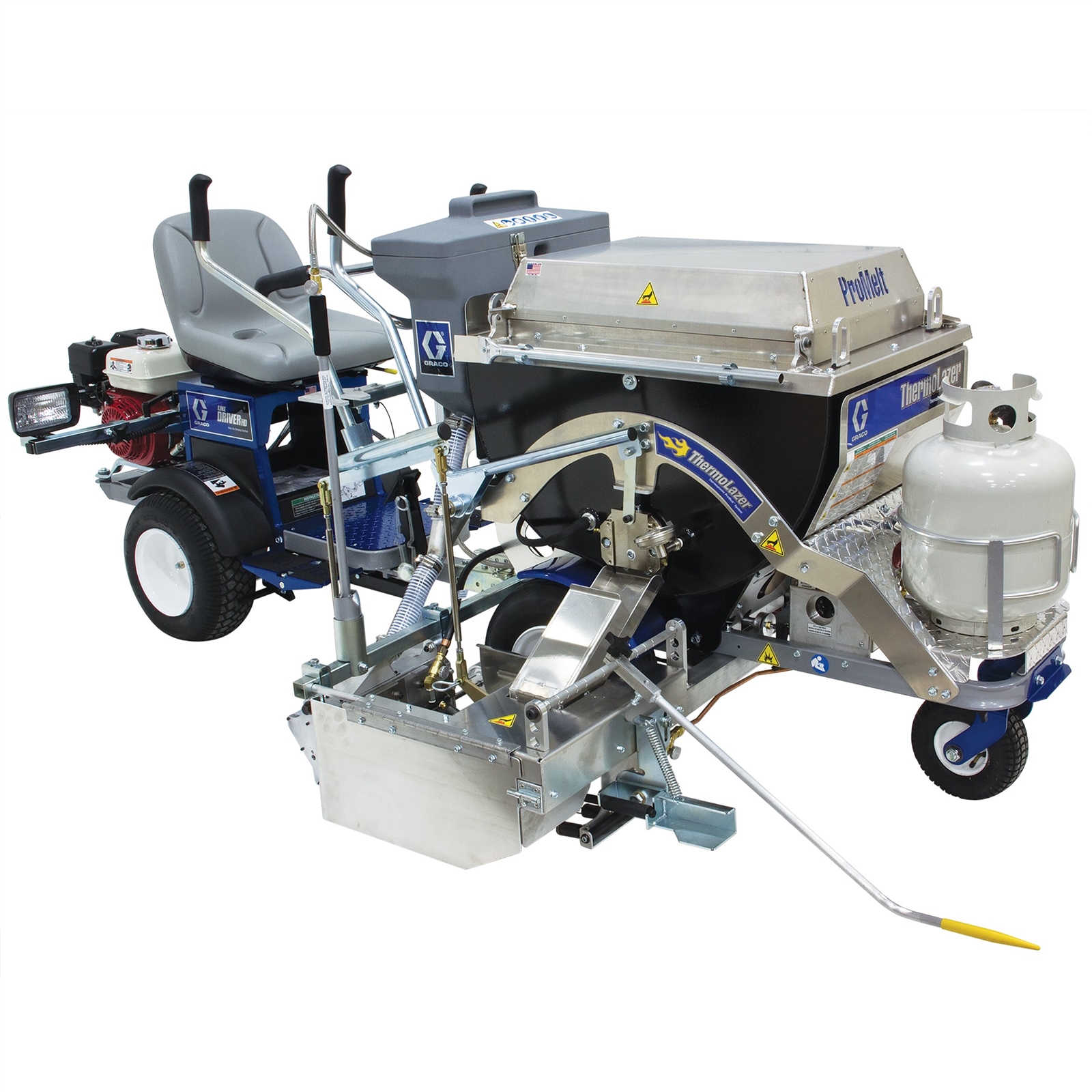

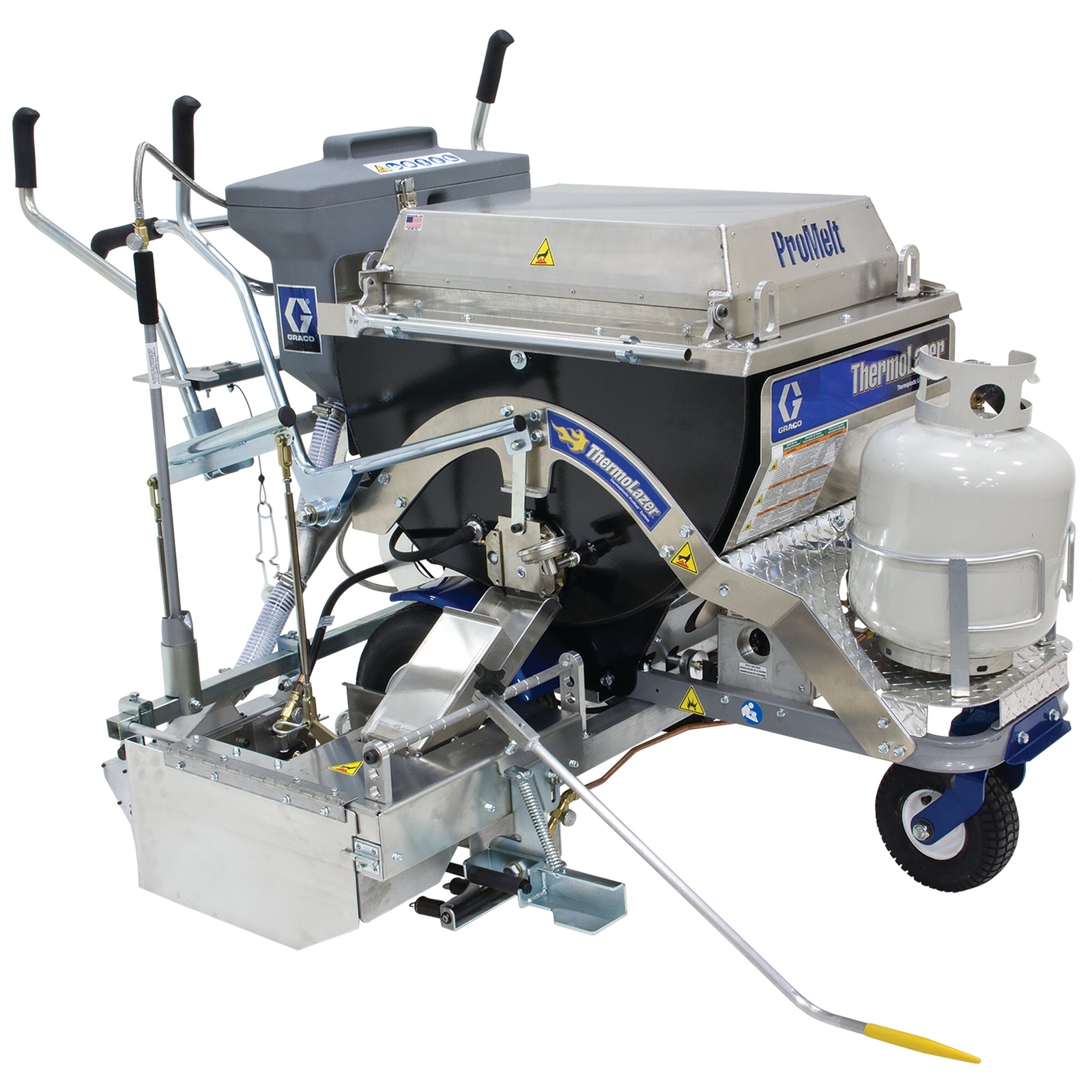

24H624_ThermoLazer_Promelt_System_Main 24H624_ThermoLazer_Promelt_System_Alt_1 24H624_ThermoLazer_Promelt_System_Alt_2

ThermoLazer ProMelt

ThermoLazer ProMelt Thermoplastic Striping System

24H624

The ThermoLazer ProMelt unit is your solution for first-time stripers wanting to get into the highly profitable thermoplastic marking business, as it lets you avoid the additional costs of adding a premelt kettle truck or trailer, thus saving you time and labor, resulting in more money in your pocke... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The ThermoLazer ProMelt unit is your solution for first-time stripers wanting to get into the highly profitable thermoplastic marking business, as it lets you avoid the additional costs of adding a premelt kettle truck or trailer, thus saving you time and labor, resulting in more money in your pocket. Graco's breakthrough technology allows you to melt 300 lbs of thermoplastic on board in less than an hour.
  • Ease-Z-Steer Handle Bar System
    • Makes turning and handling as simple as a LineLazer System
    • Adjustable handle bar for users of all sizes
  • ProMelt Technology
    • 4 Chamber Melting System—More surface area to melt thermoplastic fast
    • 100,000 BTUs—Faster melt time means more jobs get done everyday
  • SmartDie II System
    • Fast change-out system—Hardened steel dies with mil thickness adjustment system built in
    • Use with or without heat—Allows you to optimize your striping in all weather conditions
    • "Floats" with the surface—Puts the thermoplastic where you want it for superior line quality
    • External Heat System—4-torch die heat system keeps it hot
  • Ergonomic Design
    • Easier to use and almost effortless to push/pull, just like the proven LineLazer design
  • Optional LineDriver System
    • Get higher productivity and straighter lines with less fatigue
    • Move between jobs without having to push
    • Patented Dual Pedal System—Multiple positions allow for simple forward and reverse

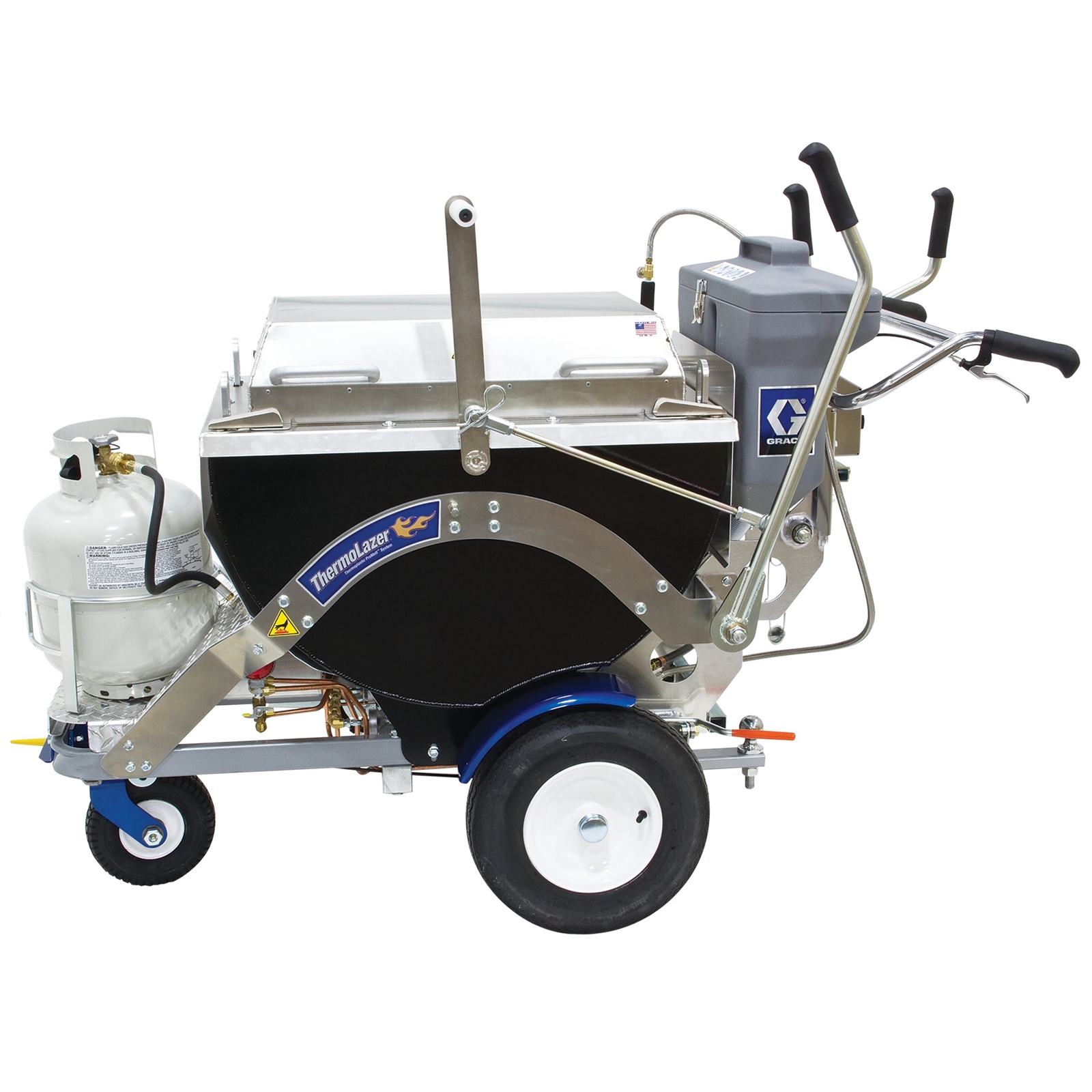

24H624_ThermoLazer_Promelt_System_Alt_1

Specifications

Technical Specifications

Convert to Metric
Compatible Material Thermoplastics, Glass Beads, Alkyds
Compatible Surfaces Pavement
Includes SmartDie II
Maximum Working Pressure (psi) 250
Model ThermoLazer
Number of Colors One Color
Number of Hoppers 1
Series ProMelt
Standards Met CE
Type Walk-Behind Line Striper
Weight (lb) 345
Compatible Material Thermoplastics, Glass Beads, Alkyds
Compatible Surfaces Pavement
Includes SmartDie II
Maximum Working Pressure (bar) 17.24
Maximum Working Pressure (kPa) 1724
Model ThermoLazer
Number of Colors One Color
Number of Hoppers 1
Series ProMelt
Standards Met CE
Type Walk-Behind Line Striper
Weight (kg) 156.5
