GH 300

GH 300 Standard Series Gas Hydraulic Airless Sprayer

24W935

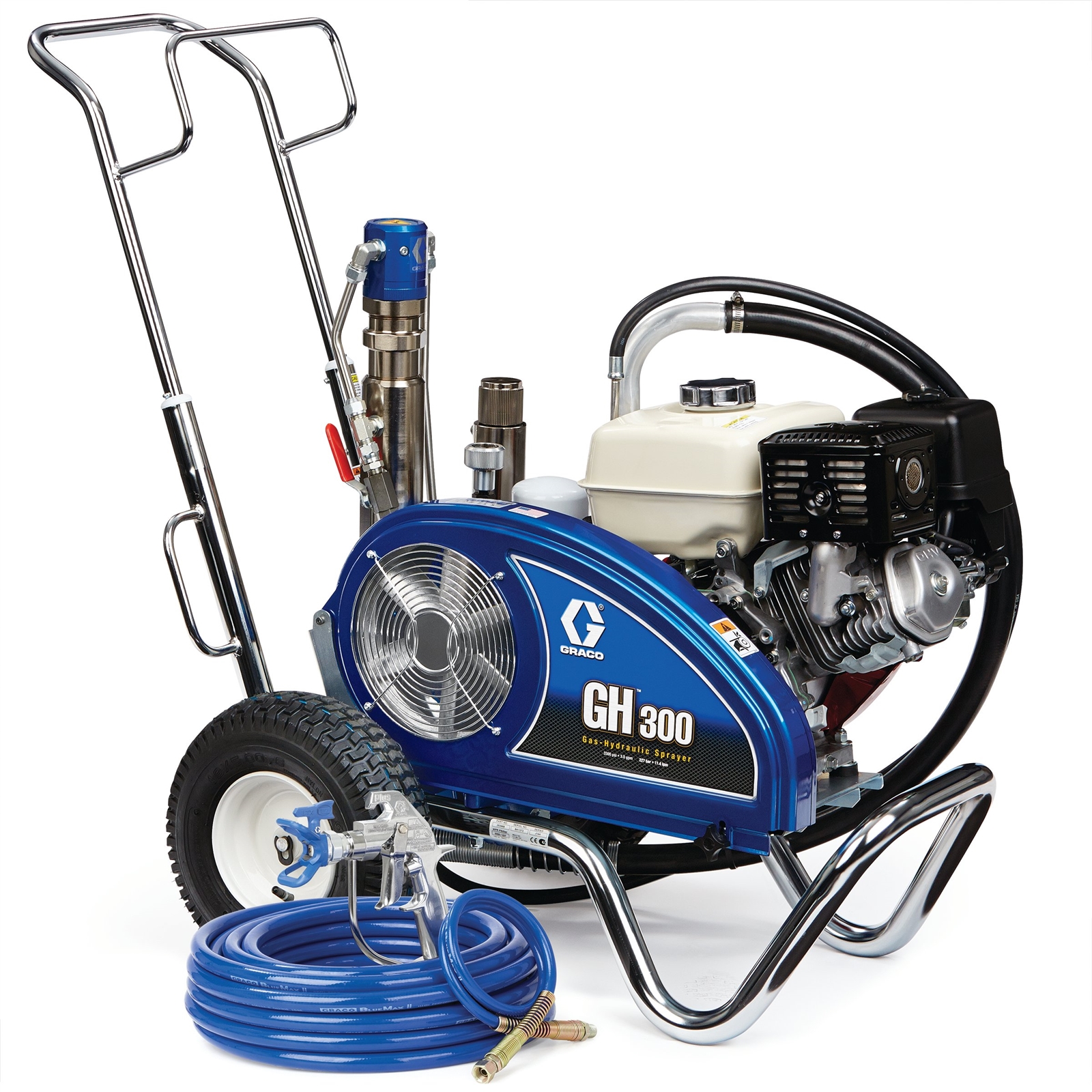

24W935_GH_300_Standard_190422_Main
GH 300 Standard Series Gas Hydraulic Airless Sprayer, 24W935

GH 300

GH 300 Standard Series Gas Hydraulic Airless Sprayer

24W935

The GH 300 is one of the most powerful hydraulic sprayers for high production contractors who are spraying a wide range of materials including latex, elastomerics, and block fillers on large commercial jobs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The GH 300 is one of the most powerful hydraulic sprayers for high production contractors who are spraying a wide range of materials including latex, elastomerics, and block fillers on large commercial jobs.
  • Endurance Chromex Piston Pump
    • Lasts 2X longer than the next leading brand
    • QuikChange pump design allows you to swap the pump easily on the job
    • Faster cleaning with the QuikAccess intake foot valve
  • High-Efficiency Hydraulic Motor
    • Rock-solid performance time after time keeps you up and running
    • Faster, more responsive changeover
    • O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
    • Fewer moving parts mean less maintenance and longer life
  • High-Capacity Cooling System
    • Innovative design allows the pump to run cooler and more efficiently
    • Hydraulic reservoir is tapered on the bottom
    • Provides easier and more thorough fluid changes
    • Cooling fins on reservoir deflect heat away from sprayer
  • Honda® Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • Contractor Preferred
  • Easy Out Pump Filter
    • Easy maintenance & less clogging
    • Exclusive inside-out filter design won't collapse to ensure a quality finish
    • Vertical design for less mess
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high-pressure dumping
  • Rugged, Durable Cart Design
    • Thick chrome over welded steel withstands rugged environments
    • Full pneumatic wheels absorb impacts and vibrations
    • Retractable handle doubles as coiled hose storage
    • Tilts on its nose for service in the field
  • Ready to Work
    Includes everything you need to get spraying:
    • Silver Plus Airless Spray Gun
    • RAC X SwitchTips and Guard
    • 50 feet of BlueMax II Airless Hose
24W935_GH_300_Standard_190422_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump 24W997
Convertible No
Engine Brand Honda
Engine Size (HP) 9.0
Features Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type FNPT
Frame Configuration Cart
Includes Silver Plus Gun, RAC X LTX 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz
Maximum Flow Rate (GPM) 3
Maximum Hose Length (ft) 300
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.057
Maximum Tip Size 1 Gun (in) 0.057
Maximum Tip Size 2 Guns (in) 0.039
Maximum Tip Size 3 Guns (in) 0.033
Maximum Tip Size 4 Guns (in) 0.029
Maximum Tip Size 5 Guns (in) 0.025
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Model GH
Number of Guns 5
Outlet Paint Filter Easy Out
Overall Height (in) 41.0
Overall Length (in) 48
Overall Width (in) 24
Power Rating (HP) 9.0
Power Rating (W) 6711.3
Power Rating (kW) 6.71
Power Source Gas Hydraulic
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Recommended Annual Usage Up to 1,000 gallons per week
Series 300
Type Airless Sprayer
Weight (lb) 195
Wetted Material Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump 24W997
Convertible No
Engine Brand Honda
Engine Size (HP) 9.0
Features Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.375
Fluid Outlet Size (mm) 3.75
Fluid Outlet Thread Type FNPT
Frame Configuration Cart
Includes Silver Plus Gun, RAC X LTX 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz
Maximum Flow Rate (L/min) 11.3
Maximum Hose Length (m) 92
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.1448
Maximum Tip Size (mm) 1.4478
Maximum Tip Size 1 Gun (cm) 0.1448
Maximum Tip Size 1 Gun (mm) 1.4478
Maximum Tip Size 2 Guns (cm) 0.0991
Maximum Tip Size 2 Guns (mm) 0.9906
Maximum Tip Size 3 Guns (cm) 0.0838
Maximum Tip Size 3 Guns (mm) 0.8382
Maximum Tip Size 4 Guns (cm) 0.0737
Maximum Tip Size 4 Guns (mm) 0.7366
Maximum Tip Size 5 Guns (cm) 0.0635
Maximum Tip Size 5 Guns (mm) 0.6350
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model GH
Number of Guns 5
Outlet Paint Filter Easy Out
Overall Height (cm) 104.1
Overall Height (mm) 1041
Overall Length (cm) 121.92
Overall Length (mm) 1219.2
Overall Width (cm) 61
Overall Width (mm) 610
Power Rating (HP) 9.0
Power Rating (W) 6711.3
Power Rating (cc) 270
Power Rating (kW) 6.71
Power Source Gas Hydraulic
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Recommended Annual Usage Up to 1,000 gallons per week
Series 300
Type Airless Sprayer
Weight (kg) 89
Wetted Material Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

What's Included

Part No. Description Qty Unit
246240 Silver Plus Airless Spray Gun, 2 Finger Trigger, RAC X 1 ea
LTX517 RAC X SwitchTip, 517 1 ea
WR1231 RAC X WideRAC SwitchTip, 1231 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea
277249 BlueMax II HP Airless Whip Hose, 1/4 in x 3 ft, 4000 psi 1 ea
