ThermoLazer 300TC

ThermoLazer 300TC Thermoplastic Striping System, 4 in SmartDie II

Part Number: 258699

product image product image product image product image

ThermoLazer 300TC

ThermoLazer 300TC Thermoplastic Striping System, 4 in SmartDie II

Part Number: 258699

Graco's ThermoLazer 300TC is one of the most productive and easy to use thermoplastic handliners in the industry. The system's 300 lb material kettle allows for more striping and less time spent refilling with material, while its EasyGlide Wheel Mount System makes this unit as easy to maneuver as a ... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

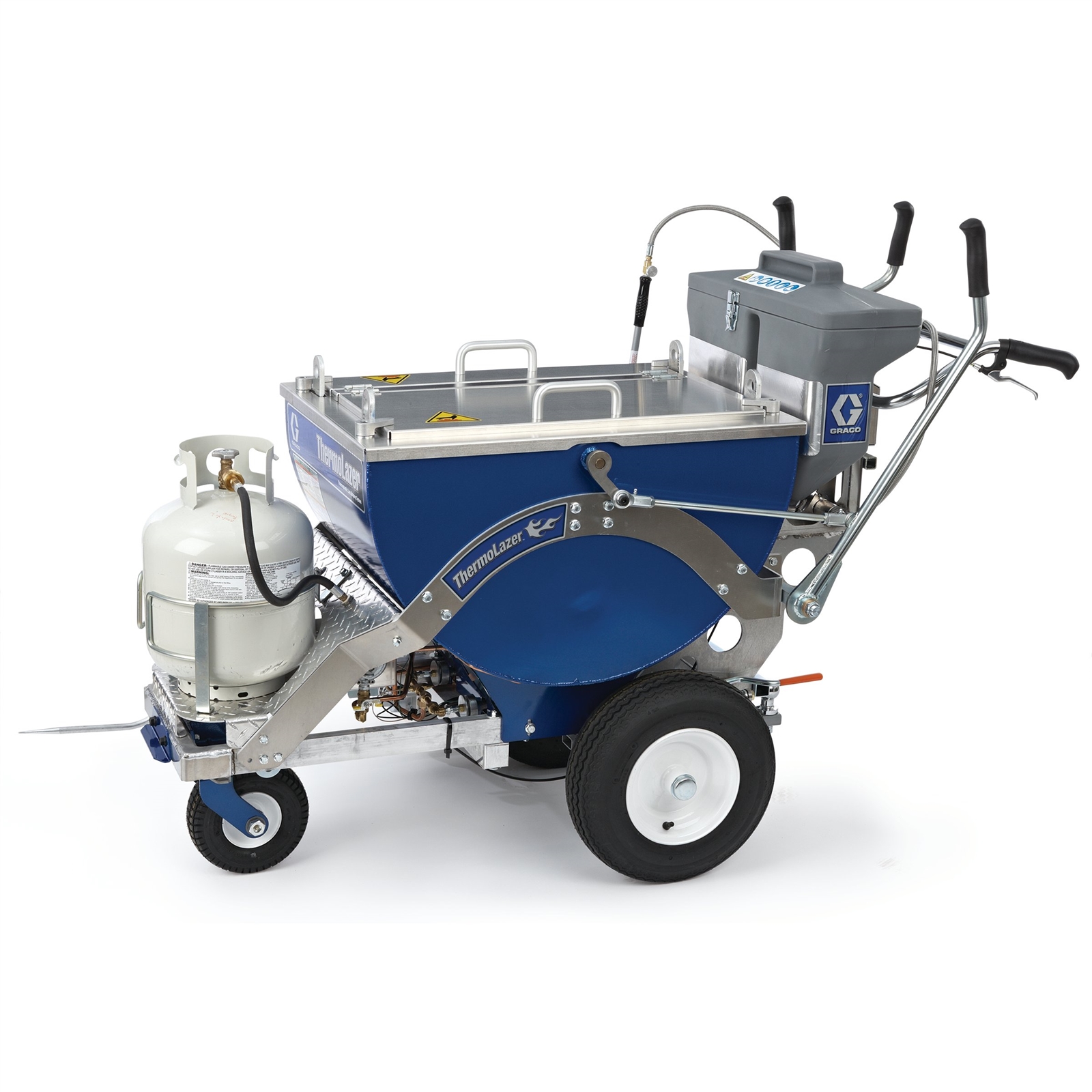

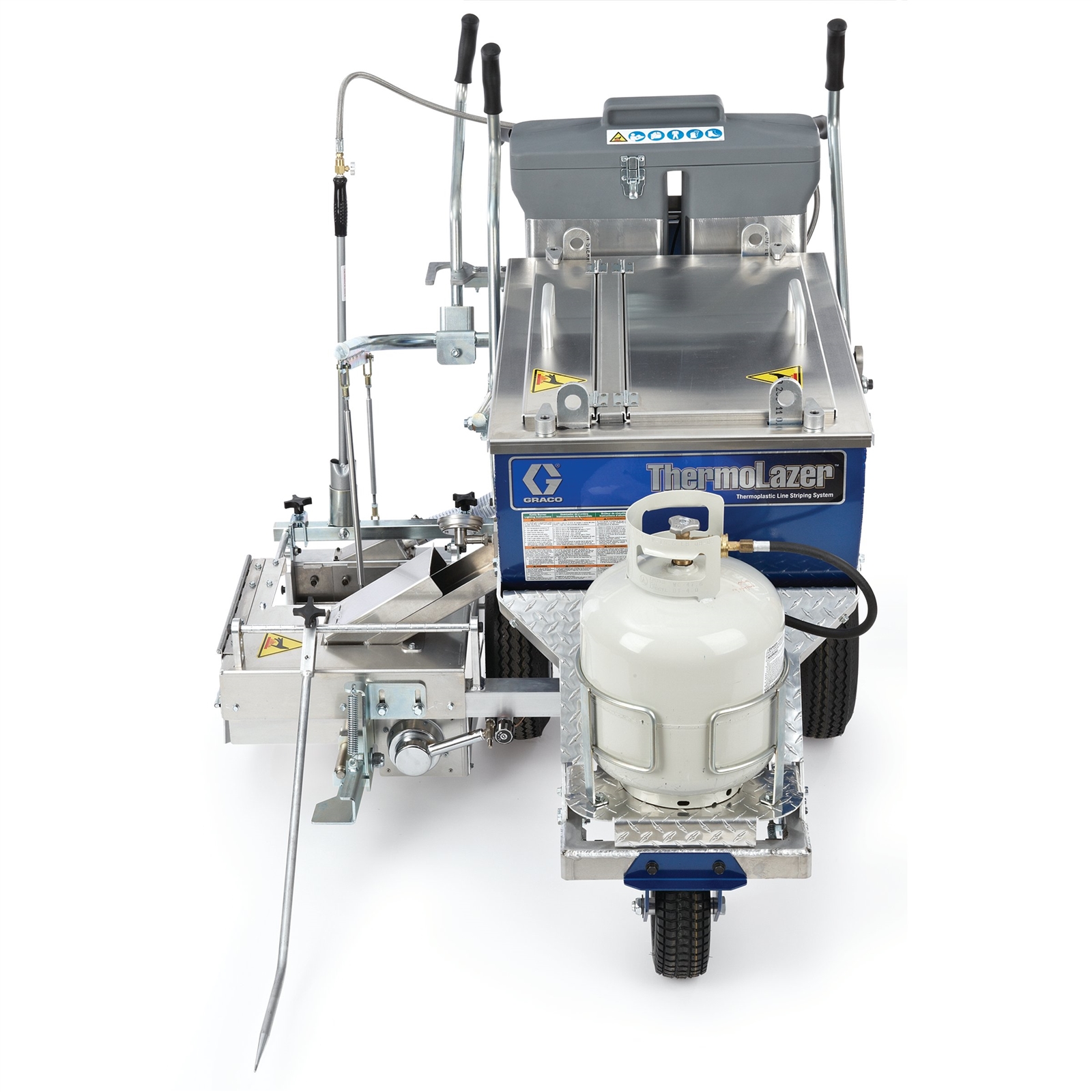

Graco's ThermoLazer 300TC is one of the most productive and easy to use thermoplastic handliners in the industry. The system's 300 lb material kettle allows for more striping and less time spent refilling with material, while its EasyGlide Wheel Mount System makes this unit as easy to maneuver as a LineLazer.
  • EasyGlide Wheel Mount System
    • Front mounted caster along with dual rear pneumatic air-filled tires makes handling safe and as easy to maneuver as a LineLazer striper
  • Tri-Flame Die Heat System
    • Reliable, safe system to keep die ready to use
  • Bead Dispense System
    • No-tool system allows fast and easy line width changes
  • Split Bead Hopper System
    • Split hopper holds over 90 lb of beads
    • Simple conversion to double drop bead system with optional kit
  • FatTrack Front Swivel Wheel
    • Proven front caster wheel system makes turning fast and easy
    • Maneuver curves better
    • No need to "muscle" it while moving

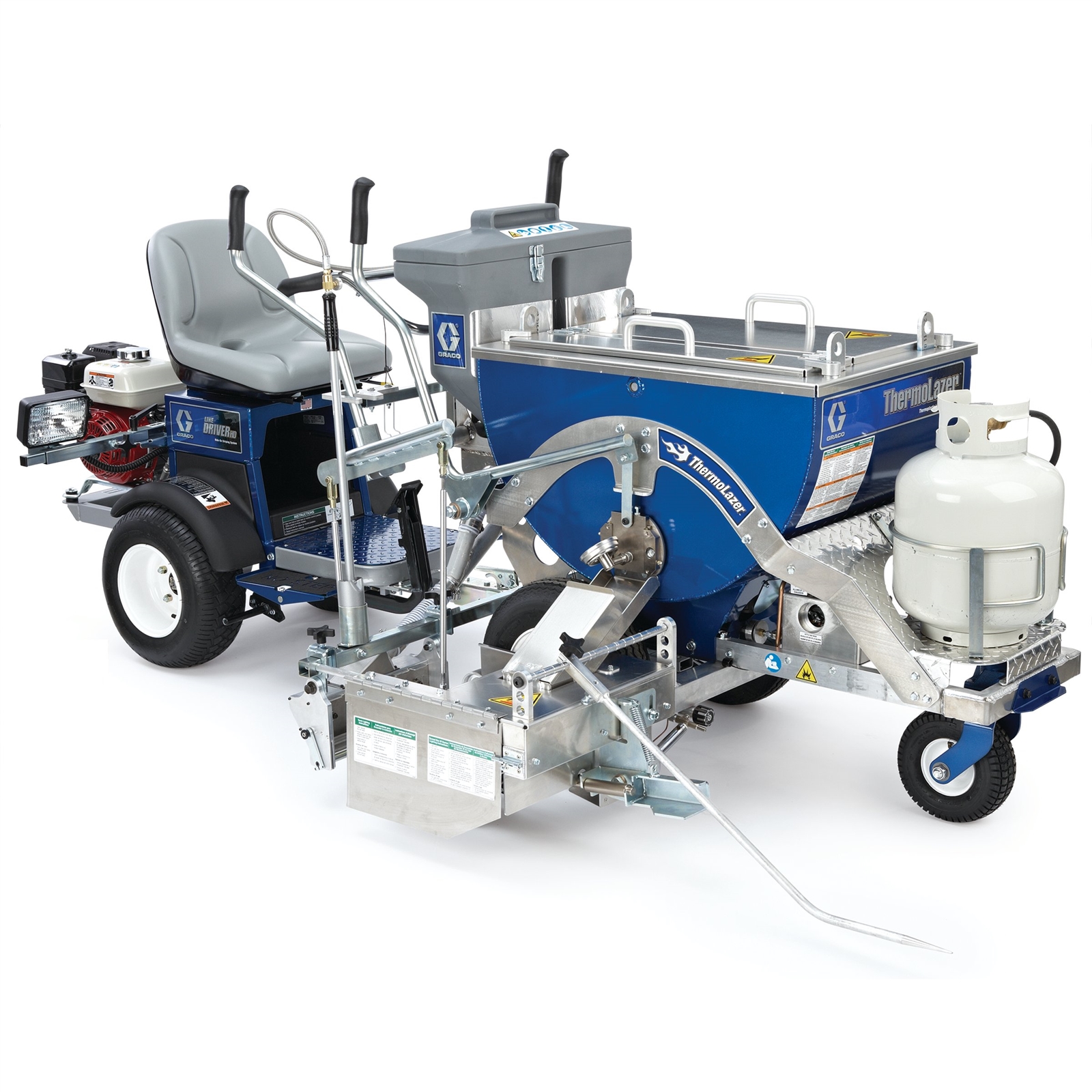

  • Optional LineDriver System
    • Get higher productivity and straighter lines with less fatigue
    • Move between jobs without having to push
    • Patented Dual Pedal System—Multiple positions allow for simple forward and reverse

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Thermoplastics, Glass Beads, Alkyds
Compatible Surfaces Pavement
Includes 4 in SmartDie II
Maximum Working Pressure (psi) 250
Model ThermoLazer
Number of Colors One Color
Number of Hoppers 1
Series 300TC
Type Walk-Behind Line Striper
Weight (lb) 295
Compatible Material Thermoplastics, Glass Beads, Alkyds
Compatible Surfaces Pavement
Includes 4 in SmartDie II
Maximum Working Pressure (bar) 17.24
Maximum Working Pressure (kPa) 172.4
Maximum Working Pressure (psi) 250
Model ThermoLazer
Number of Colors One Color
Number of Hoppers 1
Series 300TC
Type Walk-Behind Line Striper
Weight (kg) 133.8
