XP70s-hf

XP70s-hf Non-Hazardous Location Spray Package, 4:1 Mix Ratio

577402

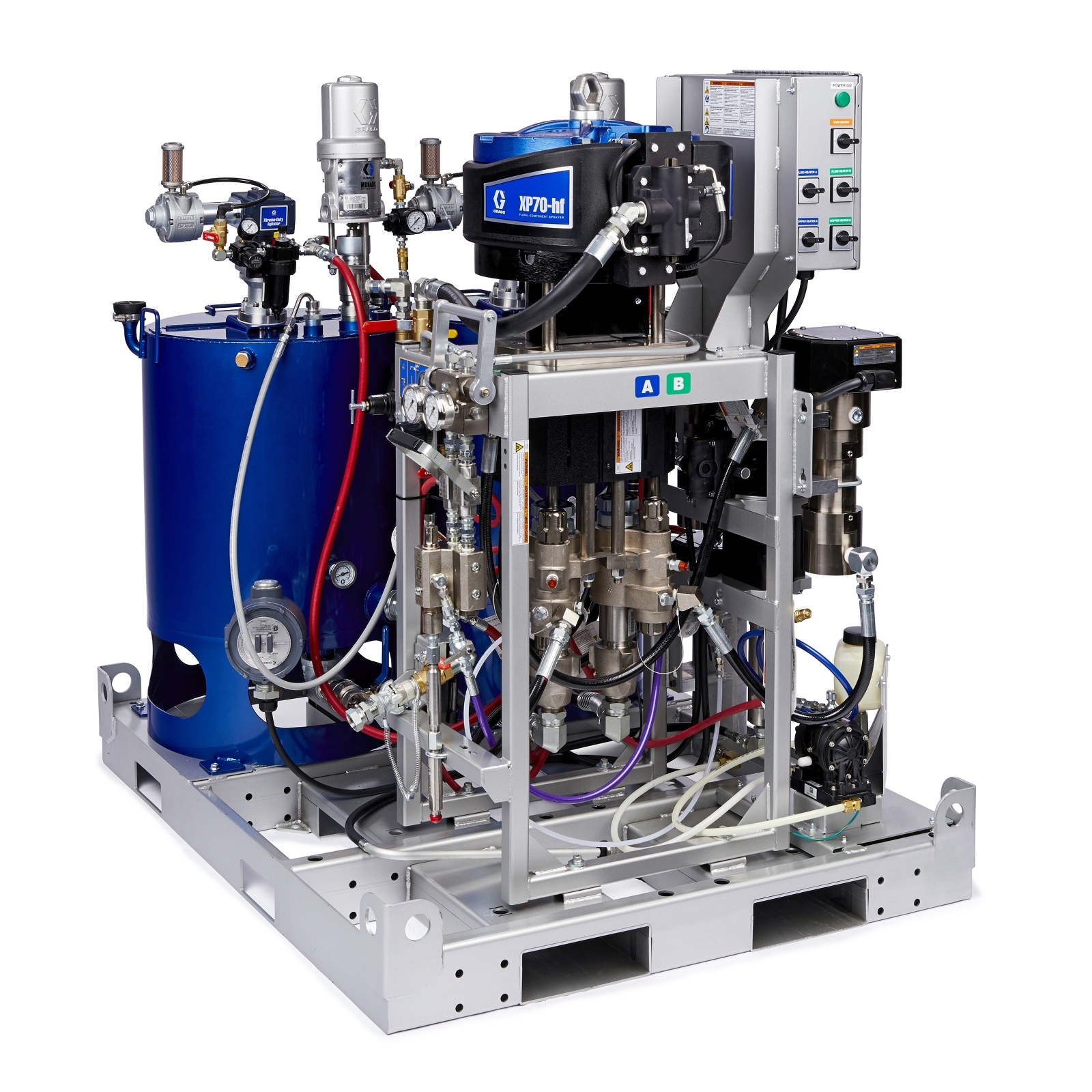

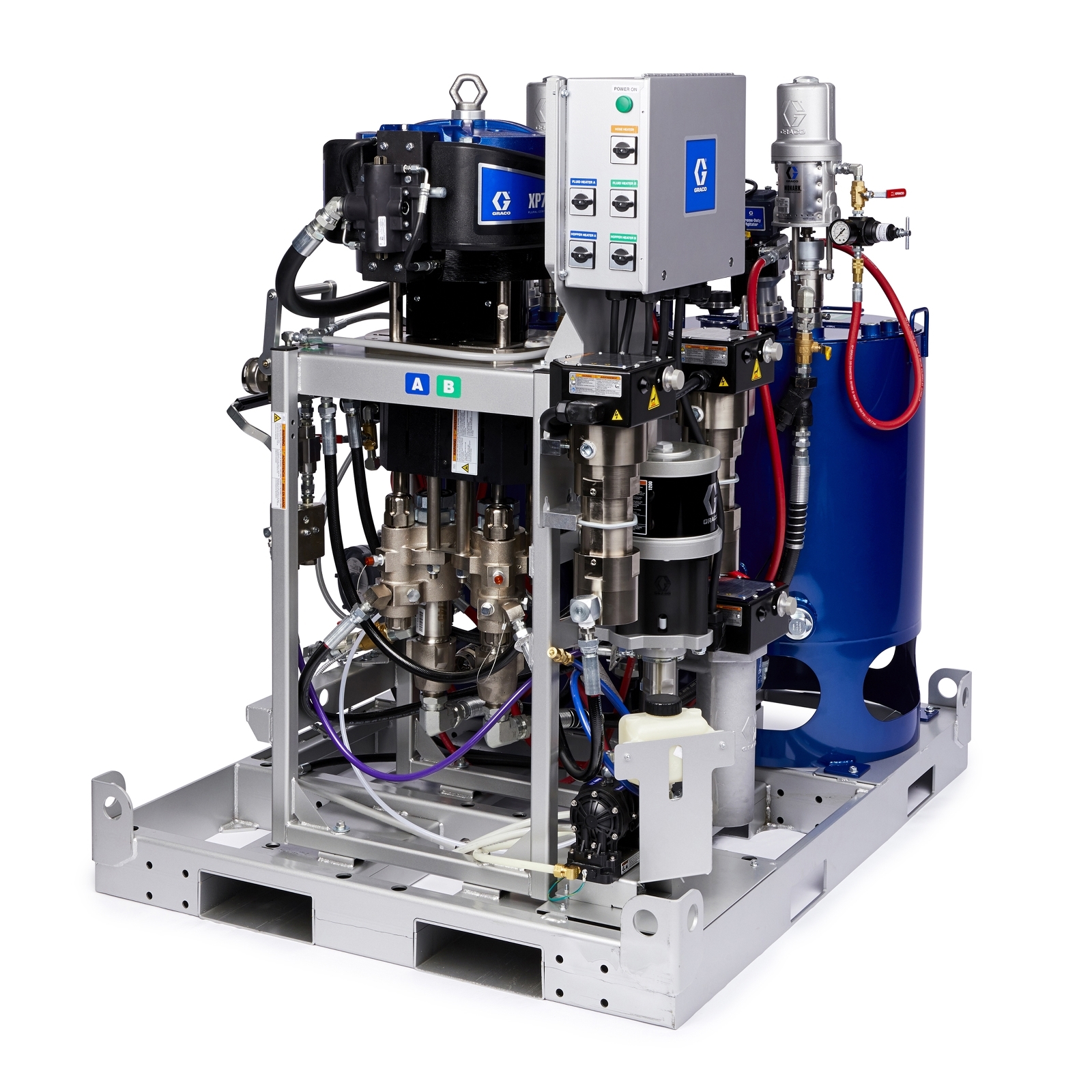

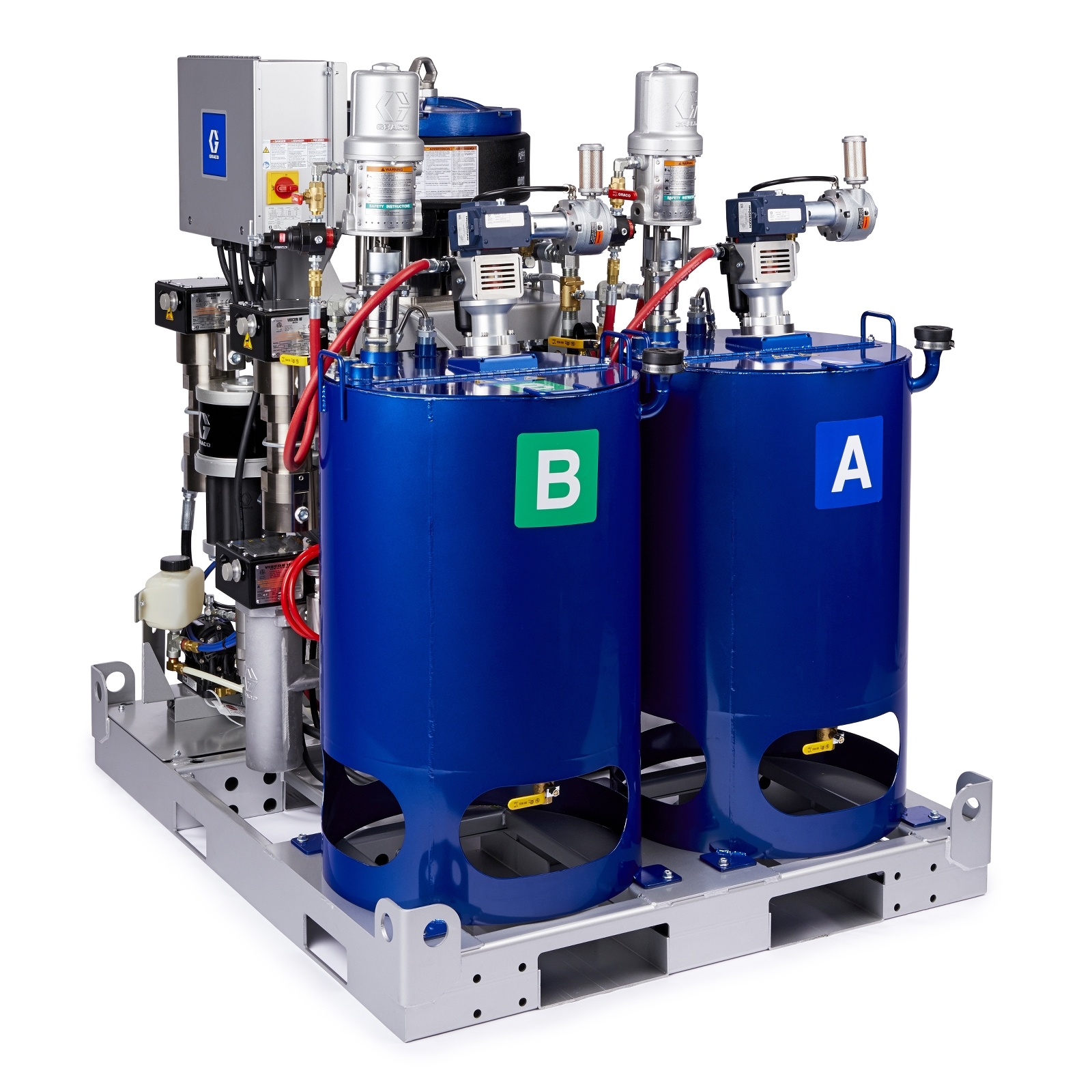

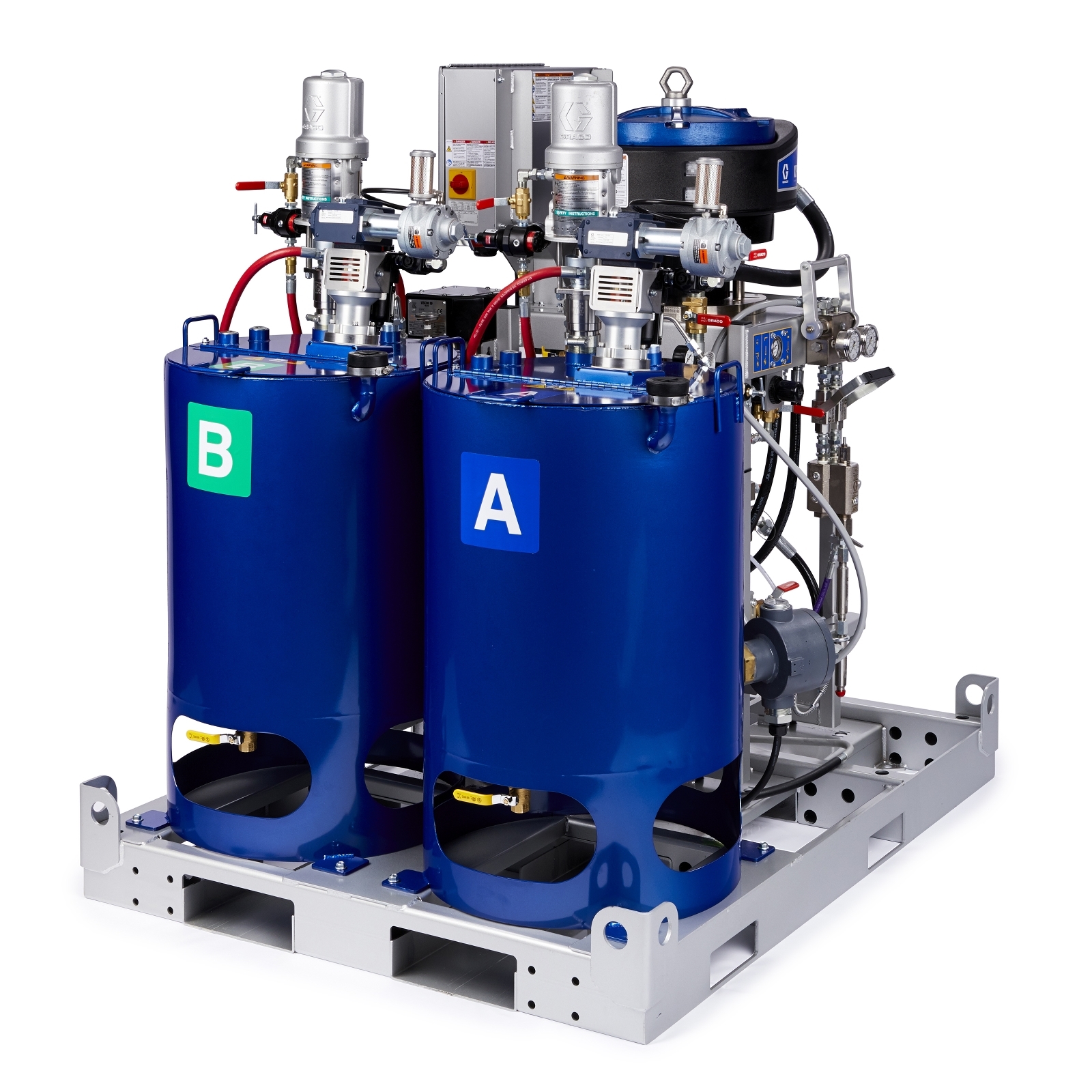

xps-hf-hh-kit-front-right xps-hf-hh-kit-front-left xps-hf-hh-kit-back-right xps-hf-hh-kit-back-left

XP70s-hf

XP70s-hf Non-Hazardous Location Spray Package, 4:1 Mix Ratio

577402

The XPs-hf systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf Systems help to reduce waste, speed up cure times and improve mix ratio. With the durable, agitated heated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – maki... More Info

Features

Product Brochure
The XPs-hf systems combine the XP Sprayers with the powerful XL 10000 air motor. The XPs-hf Systems help to reduce waste, speed up cure times and improve mix ratio. With the durable, agitated heated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive.

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Applicator Type Automatic Airless, Manual Airless
Compatible Material Protective Coatings, Primer, Epoxies, Polyurethane, Two-Component Coating, Solvents
Component Type Plural-Component
Configuration Skid Mount with 25 gal Heated Hoppers
Fluid Inlet Size (in) 1-1/4
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1/2
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Flush Type Solvent
Hose Length (ft) 35
Material Application Coatings, Paints, Primers
Maximum Cycle Rate (CPM) 40
Maximum Flow Rate (GPM) 2.8
Maximum Flow Rate (cc/min) 10600
Maximum Fluid Temperature (°F) 160
Maximum Fluid Viscosity (cP) 20000
Maximum Hose Length (ft) 300
Maximum Operating Temperature (°F) 130
Maximum Spray Pressure (MPa) 50
Maximum Spray Pressure (psi) 7250
Maximum Working Pressure (MPa) 50
Maximum Working Pressure (psi) 7250
Measuring Type Fixed Mechanical Positive Displacement
Minimum Fluid Viscosity (cP) 200
Mix Ratio 4:1
Power Source Air
Product Type Plural Component
Sound Power Level (dB(A)) 96
Sound Pressure Level (dB(A)) 86.8
Type Plural Component Sprayer
Weight (lb) 1350
Wetted Material Carbon Steel, Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE, Solvent Resistant Plastics, Aluminum, Nylon
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Applicator Type Automatic Airless, Manual Airless
Compatible Material Protective Coatings, Primer, Epoxies, Polyurethane, Two-Component Coating, Solvents
Component Type Plural-Component
Configuration Skid Mount with 25 gal Heated Hoppers
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPT
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Flush Type Solvent
Hose Length (m) 10.7
Material Application Coatings, Paints, Primers
Maximum Cycle Rate (CPM) 40
Maximum Flow Rate (L/min) 10.6
Maximum Flow Rate (cc/min) 10600
Maximum Fluid Temperature (°C) 71
Maximum Fluid Viscosity (cP) 20000
Maximum Hose Length (m) 91.4
Maximum Operating Temperature (°C) 54
Maximum Spray Pressure (MPa) 50
Maximum Spray Pressure (bar) 500
Maximum Spray Pressure (kPa) 50000
Maximum Working Pressure (MPa) 50
Maximum Working Pressure (bar) 500
Maximum Working Pressure (kPa) 50000
Measuring Type Fixed Mechanical Positive Displacement
Minimum Fluid Viscosity (cP) 200
Mix Ratio 4:1
Power Source Air
Product Type Plural Component
Sound Power Level (dB(A)) 96
Sound Pressure Level (dB(A)) 86.8
Type Plural Component Sprayer
Weight (kg) 612
Wetted Material Carbon Steel, Electroless Nickel Plating, Plated Carbon Steel, Stainless Steel, Carbide, Acetal, UHMWPE, Nylon, PTFE, Solvent Resistant Plastics, Aluminum, Nylon
