Reactor 2 E-XP2

Reactor 2 E-XP2 Proportioner Package with Probler P2 Spray Gun

Part Number: PH2012

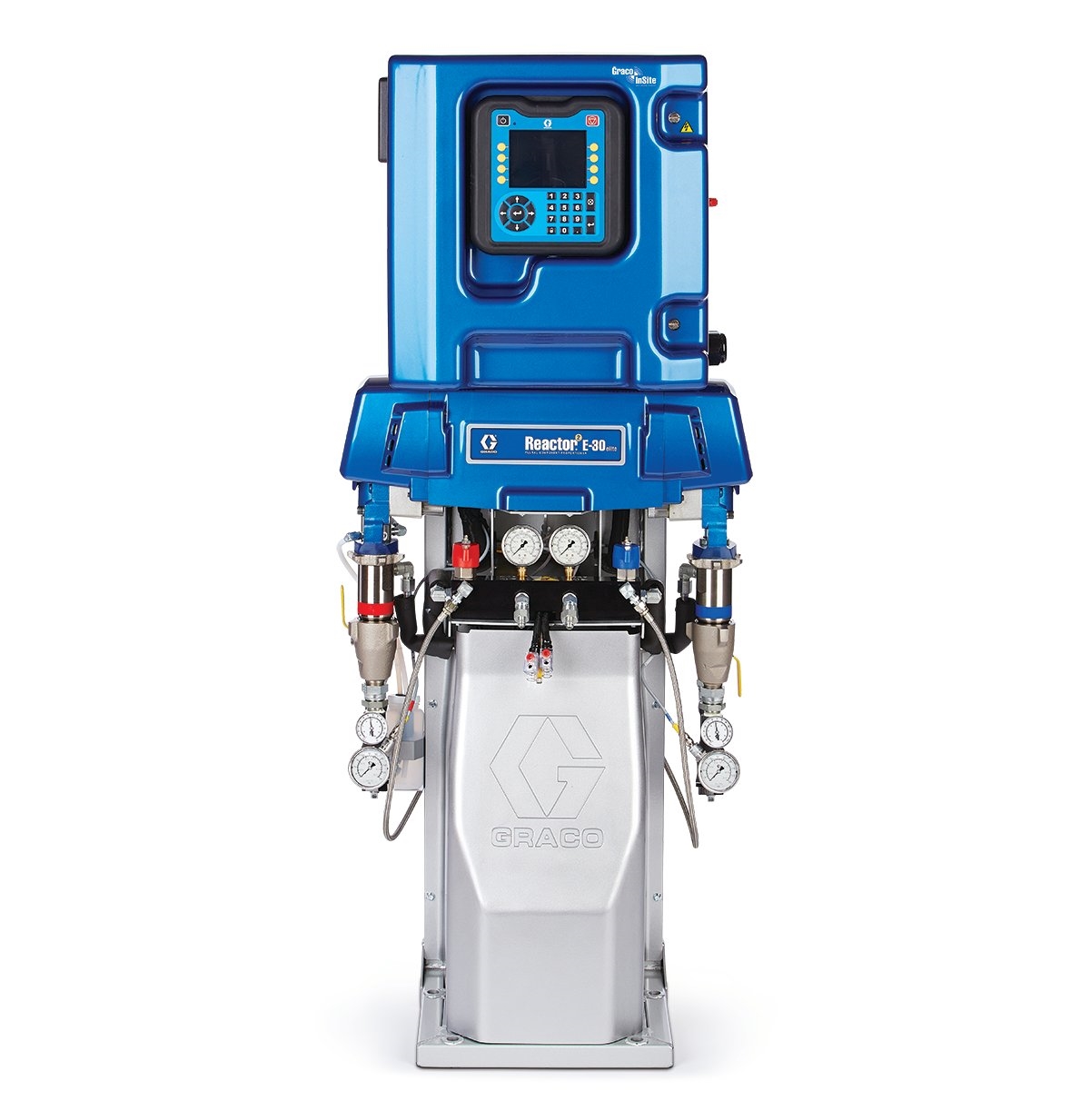

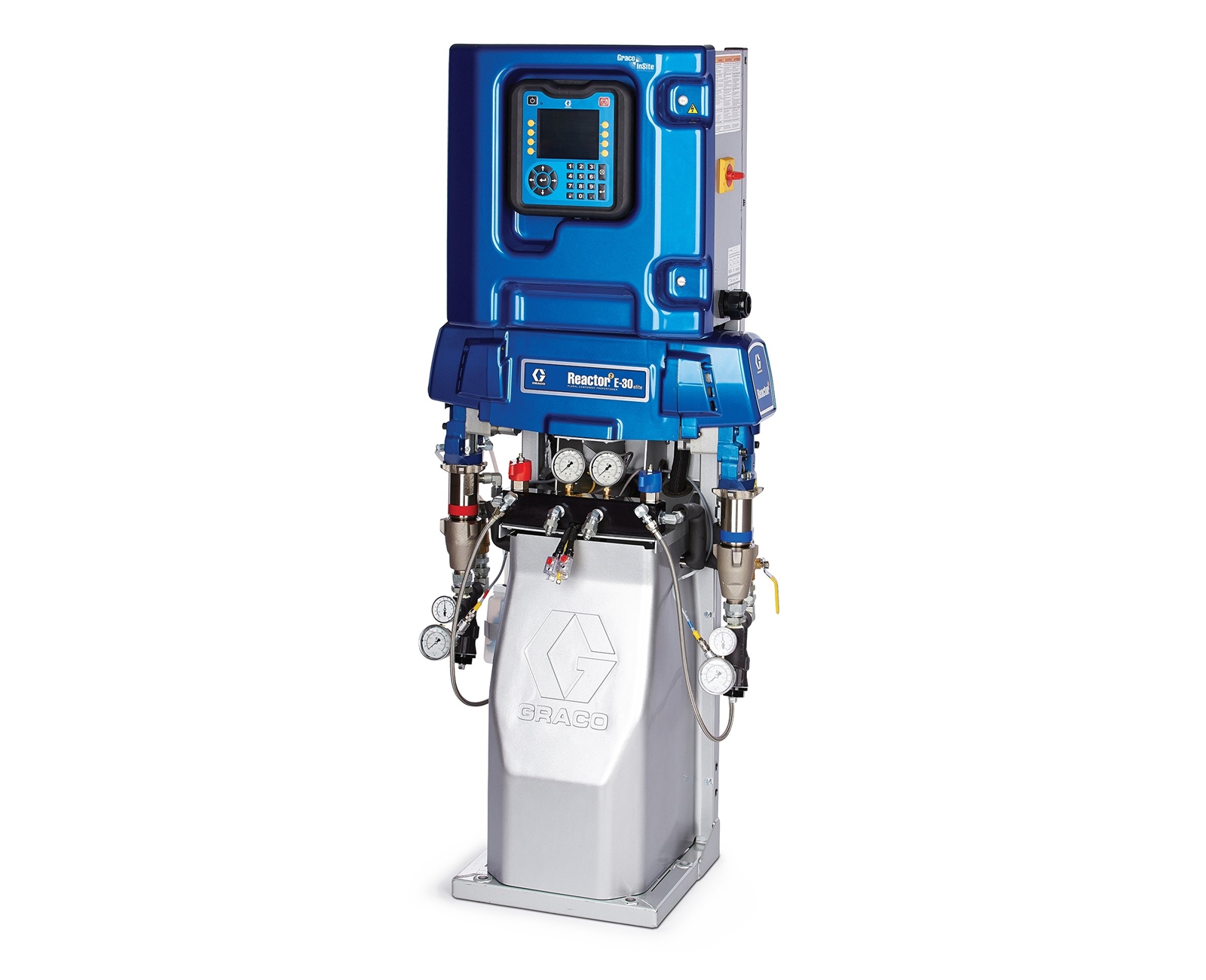

product image product image product image product image product image

Reactor 2 E-XP2

Reactor 2 E-XP2 Proportioner Package with Probler P2 Spray Gun

Part Number: PH2012

Count on the Reactor 2 E-XP2 proportioner for advanced technology in applying fast-curing polyurea coatings. Because it's a Reactor 2 series proportioner, it offers software and hardware enhancements for better spray performance, plus technologies that add to your bottom line. The Reactor 2 E-XP2 is...

More Info

Features

Product Brochure

Count on the Reactor 2 E-XP2 proportioner for advanced technology in applying fast-curing polyurea coatings. Because it's a Reactor 2 series proportioner, it offers software and hardware enhancements for better spray performance, plus technologies that add to your bottom line. The Reactor 2 E-XP2 is engineered to process and spray polyurea and other coatings that require high pressures. The hybrid heater and heated hose condition the materials to the right viscosity prior to mixing. Quick knockdown lower pump for easy maintenance, easy-to-use controls, and rugged design make the Reactor the preferred choice for coatings applications.

Next generation technology for polyurea coatings.

  • Reactor 2 E-XP2 gives you:

    • Compact footprint - more room in your spray rig
    • Ergonomic design - easier to service
    • Advanced control modules
    • Better spraying performance compared to traditional electric Reactor systems
    • Troubleshooting made quick and easy with QR codes
  • Reactor Connect : Communication and Control at your Fingertips

    • Control your Reactor using your phone
    • Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
    • Monitor your rigs/crews using the multi-system dashboard
    • Troubleshoot an issue quickly using real-time data
    • Provide documentation to a customer
    • Use reports to better manage your business
    • Saves all your spray data to the cloud
    • Utilize account management to better manage your equipment and crews
    • Reactor Connect comes standard with all Reactor 2 models
  • Advanced control technology

    • Tracks, monitors and saves project data
    • Data can be saved and downloaded onto a USB drive
    • Stores up to 24 chemical recipes
    • Drum level indicators
  • Quick and easy troubleshooting thanks to QR code shortcuts

    • Results in less downtime
  • Advanced control modules

    • Handles power fluctuations
  • Sacrificial surge protector

    • Protects your electronics against excessive power spikes
  • Smooth, consistent spray performance - similar to hydraulic systems
  • Three-year warranty

    • Covers user display module, control modules and electric motor
    • One of the best in the industry

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 35 @ 350 to 415 V ac (3-Phase WYE), 62 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
Application Protective Coatings
Applicator Type Manual
Compatible Material Plural Components
Component A Inlet Size (in) 1/2
Component A Thread Type JIC
Component B Outlet Size (in) 5/8
Component B Thread Type JIC
Component Type Two Component
Construction Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, UHMWPE
Fluid Inlet Size (in) 3/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Flush Type Solvent
Frequency (Hz) 50/60
Gun Type Probler P2
Hose Length (ft) 50, 10
Hose Package Heated Hose
Includes Proportioner, Probler P2 Gun, Heated Hose with Scuff Guard, Heated Whip Hose
Material Application Polyurea
Maximum Flow Rate (GPM) 2
Maximum Fluid Temperature (°F) 190
Maximum Mix Ratio 1:1
Model Reactor 2
Overall Depth (in) 15
Overall Height (in) 63
Overall Width (in) 26.3
Phase 1, 3
Power Rating (HP) 20.52
Power Rating (W) 15300
Power Rating (kW) 15
Power Source Electric
Pressure Type High Pressure
Product Series Non-Elite
Product Type Plural Component
Resin Inlet Size (in) 3/4
Resin Inlet Thread Gender Female
Resin Inlet Thread Type NPSM
Series E-XP2
Sound Power Level (dB(A)) 83.5
Sound Pressure Level (dB(A)) 73.6
Type Proportioning Package
Voltage (V) 230, 400
Amperage (A) 35 @ 350 to 415 V ac (3-Phase WYE), 62 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
Application Protective Coatings
Applicator Type Manual
Compatible Material Plural Components
Component A Inlet Size (in) 1/2
Component A Inlet Size (mm) 12.7
Component A Thread Type JIC
Component B Inlet Size (mm) #10
Component B Outlet Size (in) 5/8
Component B Outlet Size (mm) 15.875
Component B Thread Type JIC
Component Type Two Component
Construction Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, UHMWPE
Fluid Inlet Size (cm) 1.905
Fluid Inlet Size (in) 3/4
Fluid Inlet Size (mm) 19.05
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Flush Type Solvent
Frequency (Hz) 50/60
Gun Type Probler P2
Hose Length (m) 15.2, 3
Hose Package Heated Hose
Includes Proportioner, Probler P2 Gun, Heated Hose with Scuff Guard, Heated Whip Hose
Material Application Polyurea
Maximum Flow Rate (L/min) 7.57
Maximum Flow Rate (cc/min) 7570
Maximum Fluid Temperature (°C) 88
Maximum Mix Ratio 1:1
Model Reactor 2
Overall Depth (cm) 38.1
Overall Depth (mm) 381
Overall Height (cm) 160
Overall Height (mm) 1600
Overall Width (cm) 66.8
Overall Width (mm) 668
Phase 1, 3
Power Rating (W) 15300
Power Rating (kW) 15
Power Source Electric
Pressure Type High Pressure
Product Series Non-Elite
Product Type Plural Component
Resin Inlet Size (cm) 1.905
Resin Inlet Size (in) 3/4
Resin Inlet Size (mm) 19.05
Resin Inlet Thread Gender Female
Resin Inlet Thread Type NPSM
Series E-XP2
Sound Power Level (dB(A)) 83.5
Sound Pressure Level (dB(A)) 73.6
Type Proportioning Package
Voltage (V) 230, 400

Repair Parts

Part No. Description
24U854 KIT,MODULE,GCA,ADM,REACTOR2
24U050 KIT, MOTOR, BRUSHLESS, 2HP
193031 NUT, RETAINING
15M669 Fluid Outlet Pressure Sensor
GCP2R0 Probler P2 Gun Assembly with 00 Mix Chamber Kit
24K241 50 ft x 3/8 in Heated Hose, 3500 psi, RTD, Mesh Scuff, Reactor 2
24U832 KIT,MODULE,GCA,MCM2200 FIO,R2
