Endurance Chromex

Endurance Chromex Piston Pump

Part Number: 16X414

product image

Endurance Chromex

Endurance Chromex Piston Pump

Part Number: 16X414

Genuine Graco Endurance Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimise downtime in the field.
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure
Genuine Graco Endurance Pumps lead the industry in durability and ease of installation. Keep a spare on hand to minimise downtime in the field.

Replacement pump for GMAX II 3900 Standard Series Lo-Boy sprayers model year 2014 and newer.

  • Lasts 2X longer than the next leading brand
  • Chromex rod and hardened stainless steel cylinder
  • Long Life V-Max Blue Packings
  • Faster cleaning with the QuikAccess intake valve

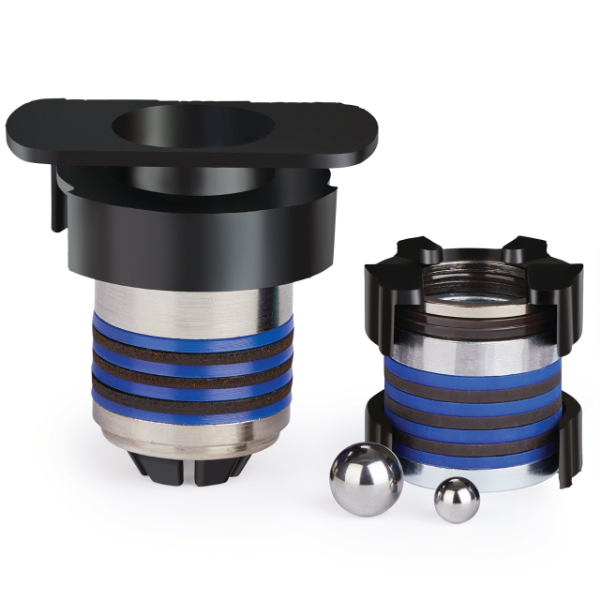

  • Repack the pump in minutes with the new QuikPak Cartridge System

Specifications & Documents

Technical Specifications

Convert to Imperial
Fluid Inlet Size (in) 1 5/16
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type UN
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
For Use With GMAX II 3900 Standard Series Lo-Boy (2014 and newer)
Maximum Working Pressure (psi) 3300
Model Endurance
Series Chromex
Type Replacement Pump
Fluid Inlet Size (in) 1 5/16
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type UN
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
For Use With GMAX II 3900 Standard Series Lo-Boy (2014 and newer)
Maximum Working Pressure (psi) 3300
Model Endurance
Series Chromex
Type Replacement Pump

Repair Parts

Part No. Description
105444 BALL (.31250)
105445 BALL (.5000)
192624 GB GUIDE, BALL
239922 Q KIT, REPAIR
248209 Q KIT, REPAIR, SLEEVE, M1&2
287877 Q KIT, REPAIR,VALVE,PISTON
16X450 Q KIT,REPAIR,CYL,3900 PCII
16X434 Q KIT,REPAIR,ROD,3900 PCII
193046 NUT, PACKING
