Ultra 450

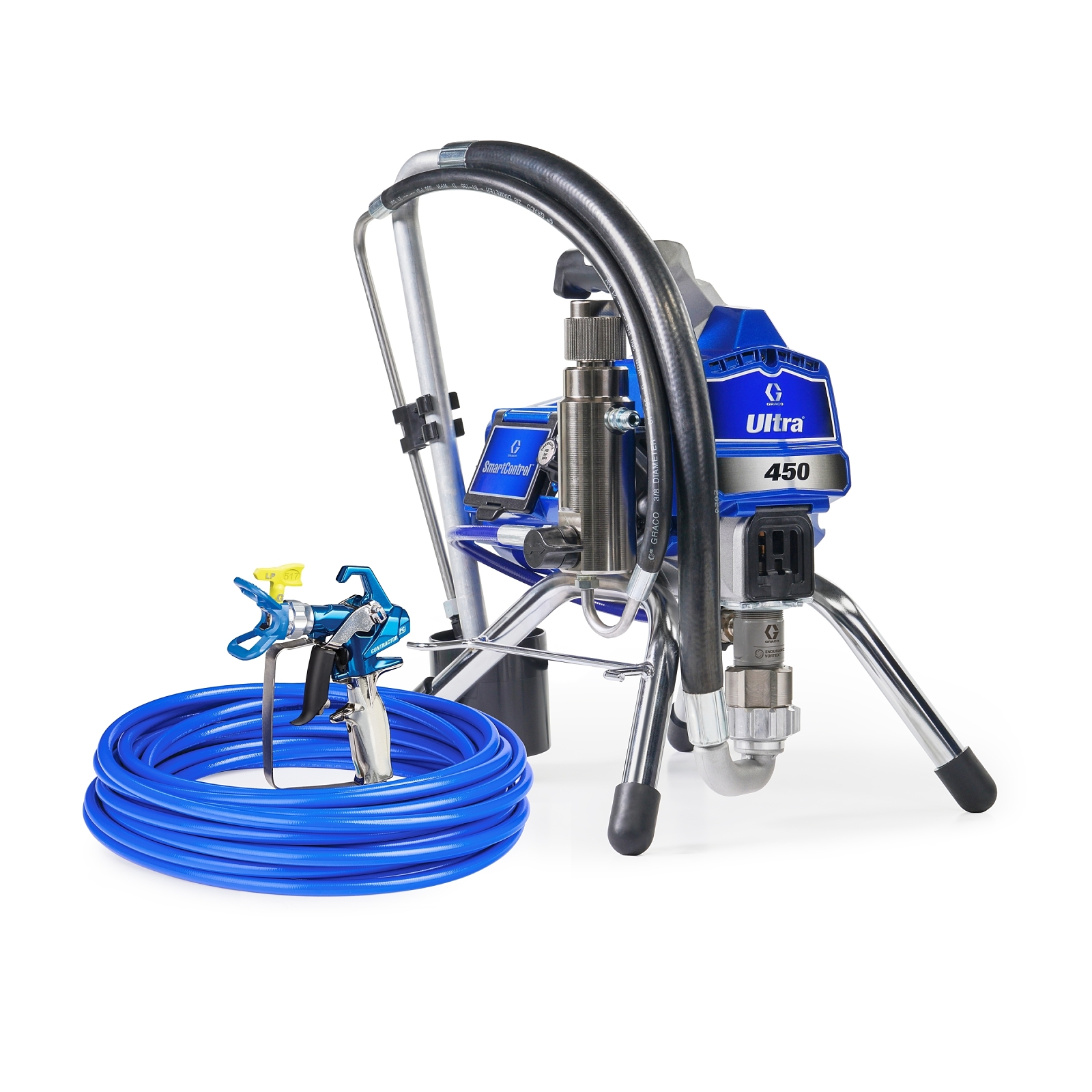

Ultra 450 Electric Airless Sprayer, Stand
Part Number: 25F515
Ultra 450
Ultra 450 Electric Airless Sprayer, Stand
Part Number: 25F515
The Ultra 450 Electric Airless Sprayer is the perfect upgrade for contractors, featuring FastFlush, WatchDog and SmartControl to save time, reduce wear and deliver the perfect airless finish with superior performance.
Features
The Ultra 450 Electric Airless Sprayer is the perfect upgrade for contractors, featuring FastFlush, WatchDog and SmartControl to save time, reduce wear and deliver the perfect airless finish with superior performance.
Lightweight design, unrivalled performance. Designed for increased productivity and unmatched reliability, Graco’s Ultra 450 Electric Airless Sprayers offer features that minimise downtime on a lightweight, powerful platform.
- Our lightest full-performance professional sprayer
- Lightweight design for easy transport on every job site – just 12.7 kg!
- Its compact size frees up valuable space in your vehicle
- Best-in-class performance and durability
- SmartControl monitors and adjusts performance for a perfect airless finish
- Spray 3 times more litres with our Endurance Vortex pump than its closest competitor
- Maintenance-free brushless motor delivers reliable operation with every use
- Maximise uptime, thanks to fastest on-the-job servicing
- Swap pumps on the job site in minutes with the ProConnect replacement system
- Double tip life while reducing overspray by up to 50% with RAC X Low Pressure SwitchTips
- Rebuild the Contractor PC Gun in seconds using the ProConnect® replacement cartridge
- SmartControl with digital display
- Provides real-time pressure, litres, hours and diagnostics — ideal for monitoring performance and maintenance tracking
- WatchDog pump protection
- Prevents damage by shutting off the pump when it is time to refill
- FastFlush cleaning system
- More spraying & less cleaning
- 2X faster cleaning with ½ the water
- Advantage Drive
- Hardened steel gears provide smooth and reliable operation
- Durable filtration and swivel inlet suction hose
- Easy Out Filter provides easy maintenance and less clogging
- Swivel inlet suction hose makes it easy to reach paint buckets
- Rugged Steel Frame
- Thick chrome over steel withstands rugged environments
- 4 Four-leg stand provides greater stability
Gun, hose and tip included
- Contractor PC Gun, RAC X LP 517 SwitchTip and 1/4 in X 15 m BlueMax II hose
Specifications & Documents
Technical Specifications
Convert to Imperial| Cycles per Gallon | 700 |
|---|---|
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Stand |
| Includes | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip, 1/4" x 15m BlueMax II airless hose, RAC X HandTite Tip Guard, TSL Throat Seal Liquid, 118 ml |
| Maximum Flow Rate (GPM) | 0.47 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Tip Size (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3000 |
| Model | Ultra |
| Overall Height (in) | 17.5 |
| Overall Length (in) | 16 |
| Overall Width (in) | 13.5 |
| Series | 450 |
| Sound Power Level (dB(A)) | 100 |
| Sound Pressure Level (dB(A)) | 90 |
| Type | Airless Sprayer |
| Weight (lb) | 28 |
| Wetted Material | Zinc nickel-plated carbon steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane |
| Cycles per Gallon | 700 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Stand |
| Includes | Contractor PC Airless Spray Gun with RAC X LP 517 SwitchTip, 1/4" x 15m BlueMax II airless hose, RAC X HandTite Tip Guard, TSL Throat Seal Liquid, 118 ml |
| Maximum Flow Rate (L/min) | 1.8 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Tip Size (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3000 |
| Model | Ultra |
| Overall Height (cm) | 44.5 |
| Overall Length (cm) | 40.6 |
| Overall Width (cm) | 34.3 |
| Series | 450 |
| Sound Power Level (dB(A)) | 100 |
| Sound Pressure Level (dB(A)) | 90 |
| Type | Airless Sprayer |
| Weight (kg) | 12.7 |
| Wetted Material | Zinc nickel-plated carbon steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminium, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane |
