GH 1017ES

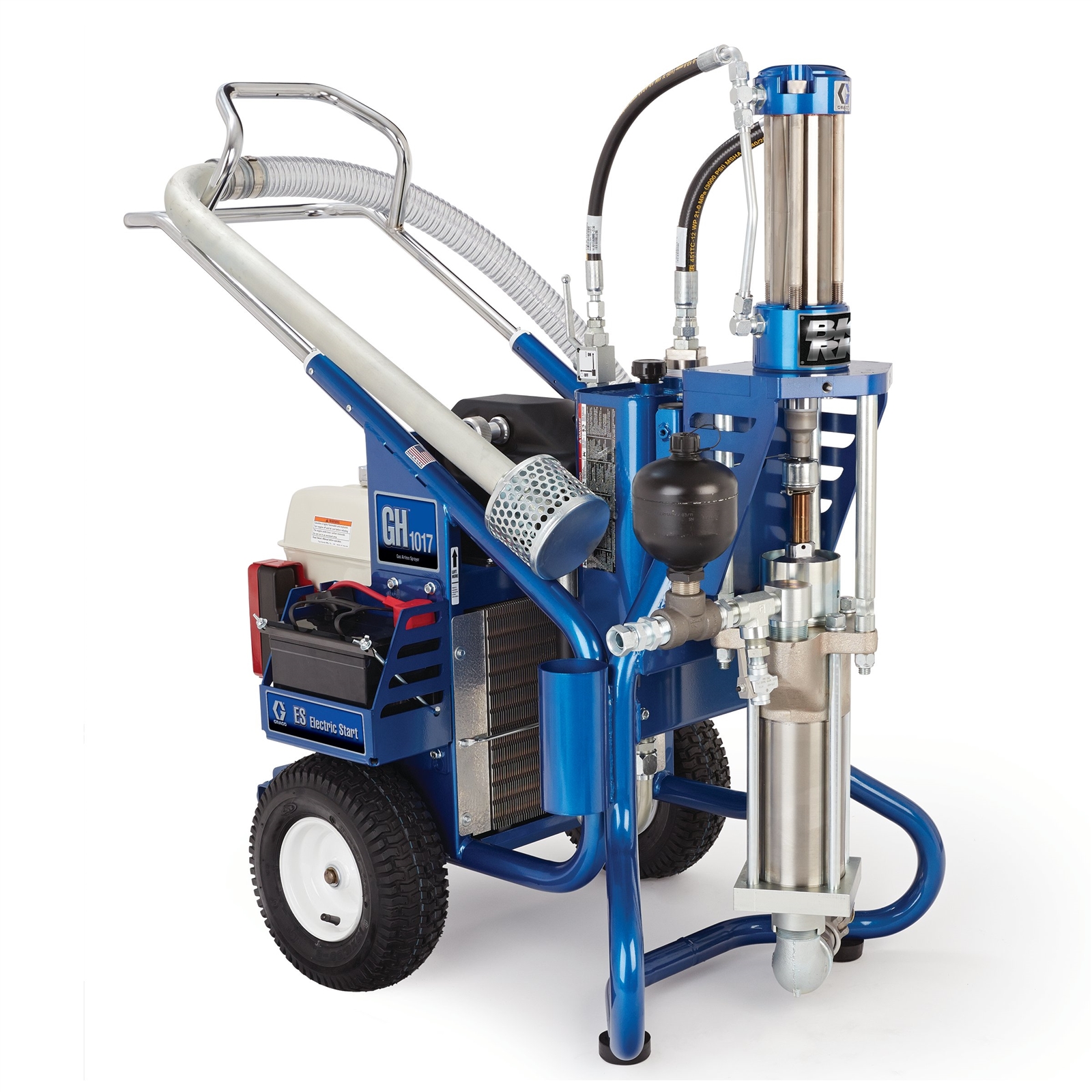

GH 1017ES Big Rig Gas Hydraulic Sprayer, Bare

16U277

16U277_GH_1017_Big_Rig_Sprayer_190319_Main

GH 1017ES

GH 1017ES Big Rig Gas Hydraulic Sprayer, Bare

16U277

For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 1017ES can get the job done.

Features

Product Brochure
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 1017ES can get the job done.

High production architectural coatings, bridges, waterproofing and air barrier, roofing, fire proofing and protective & marine coatings: spray the most aggressive applications, without the need of an expensive air compressor to carry around.

  • Honda® 390cc (13HP) Engine with Electric Start
    • Reliable and easy-to-start
    • Contractor-preferred - excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • High-capacity, 12V/18A charging system
  • Heavy-Duty Hydraulic System
    • Faster, more responsive changeover
    • O-ring sealed to eliminate leaks
    • High-precision pressure control
    • No hydraulic reset button needed
    • Durable hydraulic lines for long life
  • Heavy-Duty Cooling System
    • Large 15 liters hydraulic reservoir reducing downtime
    • Return line hydraulic filter extends life
    • Proven cooler and blower system
    • No special hydraulic fluid needed and easy-to-use drain plug
  • Heavy-Duty Steel Frame
    • Large pneumatic wheels roll over rough terrains
    • Enamel painted, sturdy welded frame protects against corrosion
    • Multi-function design converts into a skid mount in seconds
  • Xtreme Pump
    • Time tested durability and performance
    • Heavy-duty hard chrome piston rod and sleeve for long life
    • Long life XtremeSeal™ and leather packings
    • Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminate downtime
  • Additional Features
    • Hose rack
    • Large diameter 2.0" ID PVC siphon set
    • Pulsation dampener
    • Lockable pressure control knob
    • Grounding wire for safety with solvent materials
16U277_GH_1017_Big_Rig_Sprayer_190319_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Coal Tar, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, MonoForm, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Polyester, Polyurethane
Compatible Replacement Pump 16U751
Control Type N/A
Engine Brand Honda
Engine Size (HP) 13
Engine Size (kW) 9.7
Fluid Inlet Size (in) 2
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Material Application Paints, Primers
Maximum Flow Rate (GPM) 16.5
Maximum Sound Pressure Level (dB(A)) 91
Maximum Working Pressure (psi) 1000
Model GH
Motor Type Hydraulic Motor
Overall Height (in) 49
Overall Length (in) 43
Overall Width (in) 28
Power Rating (HP) 13
Power Rating (kW) 9.7
Power Source Gas Hydraulic
Product Type Single Leg
Pump Mount Type QuikChange
Pump Rod Type Hard Chrome
Pump Type Xtreme
Series 1017ES
Standards Met CE
Type Airless Sprayer
Weight (lb) 473
Wetted Material Steel, Nitralloy, Tungsten Carbide, PTFE, Leather
Compatible Material Acrylics, Coal Tar, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, MonoForm, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Polyester, Polyurethane
Compatible Replacement Pump 16U751
Control Type N/A
Engine Brand Honda
Engine Size (HP) 13
Engine Size (kW) 9.7
Fluid Inlet Size (cm) 5.08
Fluid Inlet Size (mm) 50.8000
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 3.81
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Material Application Paints, Primers
Maximum Flow Rate (L/min) 62.5
Maximum Sound Pressure Level (dB(A)) 91
Maximum Working Pressure (bar) 70
Maximum Working Pressure (kPa) 700
Model GH
Motor Type Hydraulic Motor
Overall Height (cm) 124
Overall Height (mm) 1244.6000
Overall Length (cm) 109
Overall Length (mm) 1092.2
Overall Width (cm) 71
Overall Width (mm) 711.2000
Power Rating (HP) 13
Power Rating (cc) 390
Power Rating (kW) 9.7
Power Source Gas Hydraulic
Product Type Single Leg
Pump Mount Type QuikChange
Pump Rod Type Hard Chrome
Pump Type Xtreme
Series 1017ES
Standards Met CE
Type Airless Sprayer
Weight (kg) 215
Wetted Material Steel, Nitralloy, Tungsten Carbide, PTFE, Leather
