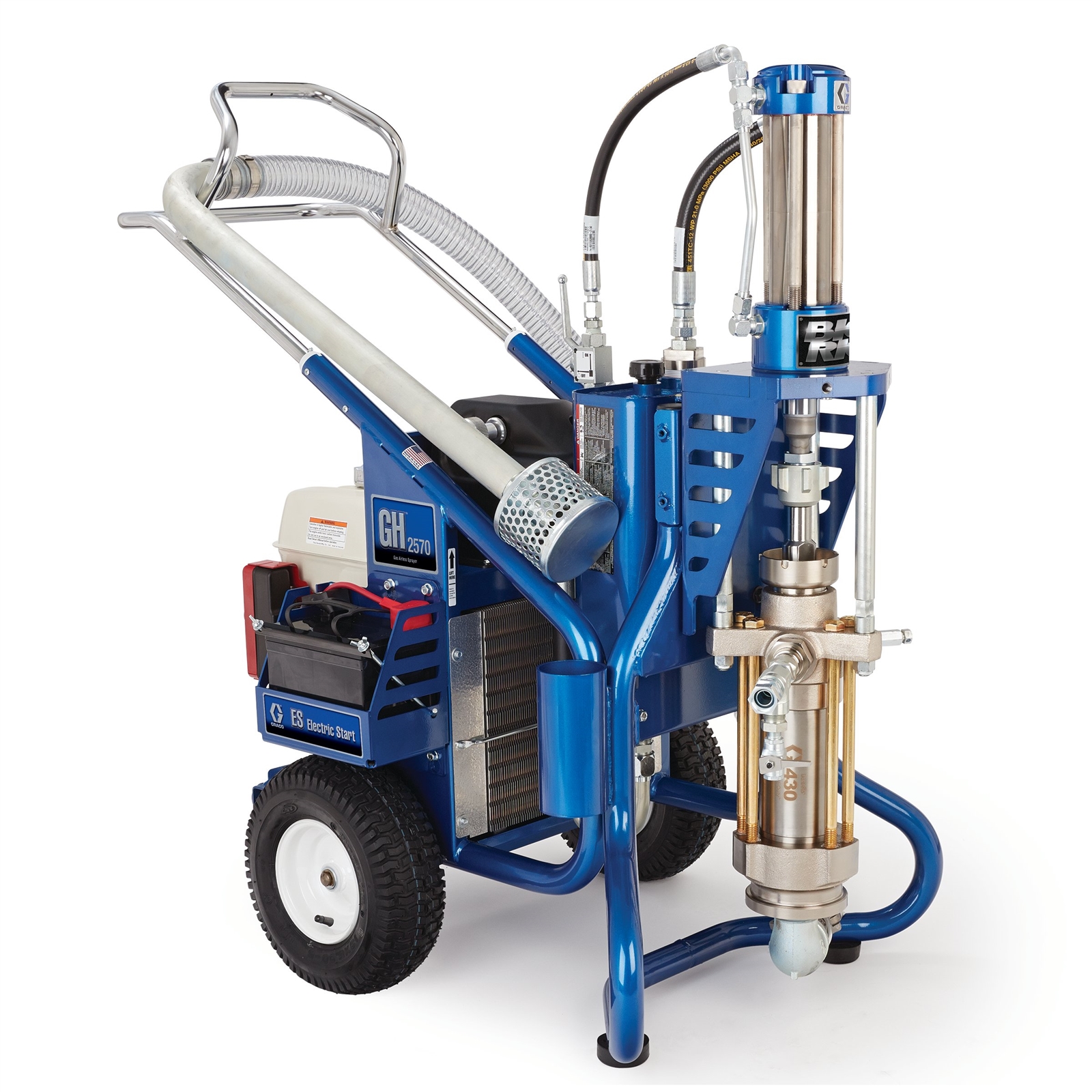

GH 2570ES

GH 2570ES Big Rig Gas Hydraulic Sprayer, Bare

Part Number: 16U278

product image

GH 2570ES

GH 2570ES Big Rig Gas Hydraulic Sprayer, Bare

Part Number: 16U278

For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 2570ES can get the job done.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 2570ES can get the job done.

High production architectural coatings, bridges, waterproofing and air barrier, roofing, fire proofing and protective & marine coatings: spray the most aggressive applications, without the need of an expensive air compressor to carry around.

  • Honda® Engine with Electric Start
    • 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
    • Contractor preferred engine with Oil Alert
    • Back-up Pull Start
    • High-capacity, 12 Volt 18 Amp Charging System
  • Heavy-Duty Graco Hydraulic System
    • Faster, more responsive changeover
    • O-ring sealed to eliminate leaks
    • High-precision pressure control
    • No hydraulic reset button needed
    • Durable hydraulic lines for long life
  • Heavy-Duty Cooling System
    • Large 4 gallon hydraulic reservoir
    • Return line hydraulic filter extends life
    • No special hydraulic fluid needed
    • Proven cooler and blower system
    • Easy to use drain plug
  • Rugged, Heavy-Duty Steel Frame
    • Easy-roll tubed pneumatic tires
    • Enamel painted steel tubing - corrosion protection
    • Multi-function design converts to skid mount in seconds
  • Xtreme Pump
    • QuikChange pump section
    • Time tested durability and performance
    • Long life XtremeSeal™ and leather packings
    • Heavy-duty piston rod for long life
    • QuikAccess intake valve removes easily for fast repairs
  • Additional Features
    • Lockable pressure control knob
    • Grounding wire for safety with solvent materials
    • Large diameter siphon hose

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Block Filler, Coal Tar, Enamel, Elastomerics, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, MonoForm, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer
Compatible Replacement Pump 16U752
Construction Steel, Nitralloy, Tungsten Carbide, PTFE, Leather
Control Type N/A
Engine Brand Honda
Engine Size (HP) 13
Engine Size (kW) 9.7
Fluid Inlet Size (in) 2
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Material Application Paints, Primers
Maximum Flow Rate (GPM) 7.0
Maximum Sound Pressure Level (dB(A)) 91
Maximum Working Pressure (psi) 2500
Model GH
Motor Type Hydraulic Motor
Overall Height (in) 49
Overall Length (in) 43
Overall Width (in) 28
Power Rating (HP) 13
Power Rating (kW) 9.7
Power Source Gas Hydraulic
Product Type Single Leg
Pump Mount Type QuikChange
Pump Rod Type Hard Chrome
Pump Type Xtreme
Series 2570ES
Type Airless Sprayer
Weight (lb) 471
Compatible Material Acrylics, Block Filler, Coal Tar, Enamel, Elastomerics, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Cut-Back, Fibered Asphalt Emulsion, MonoForm, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer
Compatible Replacement Pump 16U752
Construction Steel, Nitralloy, Tungsten Carbide, PTFE, Leather
Control Type N/A
Engine Brand Honda
Engine Size (kW) 9.7
Fluid Inlet Size (in) 2
Fluid Inlet Size (mm) 50.8000
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Material Application Paints, Primers
Maximum Flow Rate (L/min) 26.5
Maximum Sound Pressure Level (dB(A)) 91
Maximum Working Pressure (bar) 172
Maximum Working Pressure (kPa) 1720
Maximum Working Pressure (psi) 2500
Model GH
Motor Type Hydraulic Motor
Overall Height (cm) 124
Overall Height (mm) 1244.6000
Overall Length (cm) 109
Overall Length (mm) 1092.2
Overall Width (cm) 71
Overall Width (mm) 711.2000
Power Rating (cc) 390
Power Rating (kW) 9.7
Power Source Gas Hydraulic
Product Type Single Leg
Pump Mount Type QuikChange
Pump Rod Type Hard Chrome
Pump Type Xtreme
Series 2570ES
Type Airless Sprayer
Weight (kg) 214

Repair Parts

Part No. Description
24Y566 KIT, REPAIR, HYDRAULIC MOTOR
287870 KIT, REPAIR, PACKING, HYDR.
513631 KIT,SUCTION GH ROOF RIG
222796 Dura-Flo 1800 (430 cc) Carbon Steel Lower
187119 STRAINER
224441 VALVE, BALL
