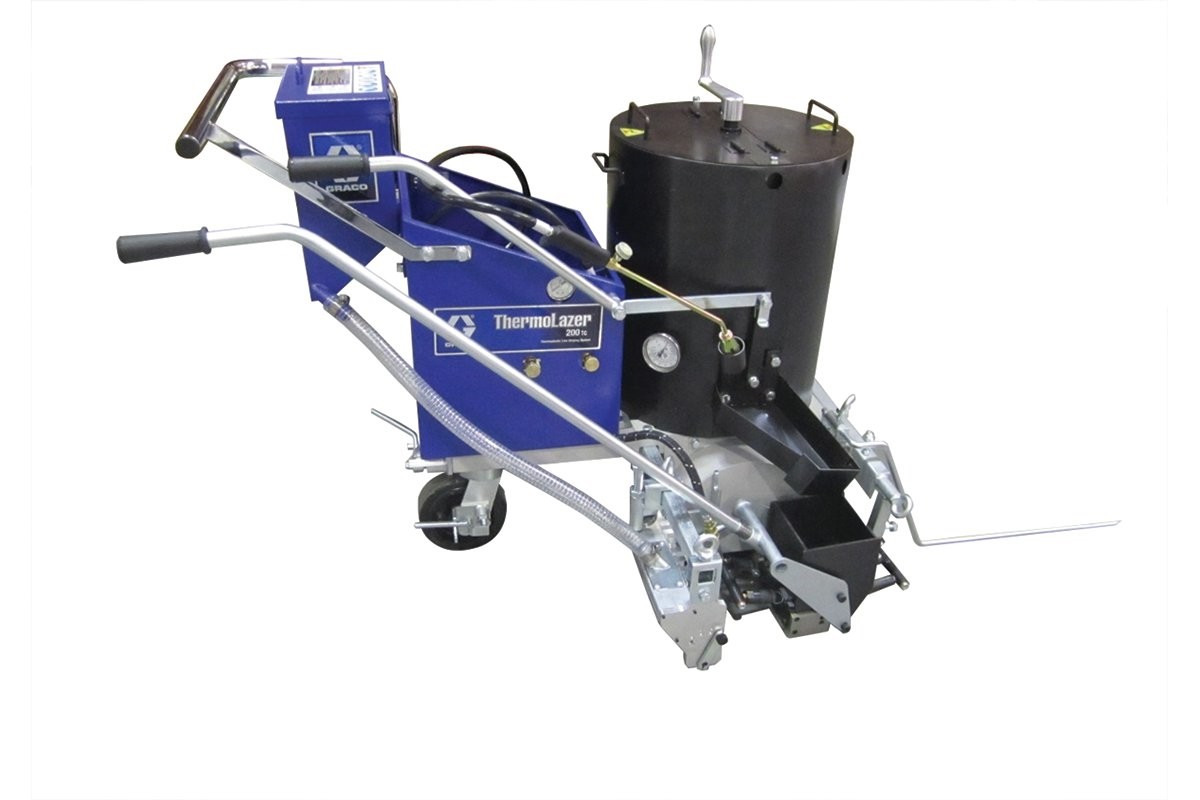

ThermoLazer 200TC
ThermoLazer 200TC Thermoplastic Striping System, 12 in FlexDie
Part Number: 17A340
ThermoLazer 200TC
ThermoLazer 200TC Thermoplastic Striping System, 12 in FlexDie
Part Number: 17A340
Graco changed the world of thermoplastic striping with ThermoLazer, and we've done it again with the ThermoLazer 200TC. The premiere solution for smaller thermoplastic striping jobs. Solid steel construction, built-in die adjustment and direct flames will give you great lines every time.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Graco changed the world of thermoplastic striping with ThermoLazer, and we've done it again with the ThermoLazer 200TC. The premiere solution for smaller thermoplastic striping jobs. Solid steel construction, built-in die adjustment and direct flames will give you great lines every time.
The smaller, more portable ThermoLazer 200TC is ideal for striping contractors who already have premelt kettle systems.
Feature-Packed Kettle
200 lb Material Kettle- Drum-style kettle is easy to fill
- Corkscrew agitation aids in mixing material and improves melt times
- No-tool change out design lets you switch colors in the field
Smooth Handling
Tri-Wheel System- Rear swivel wheel and dual-fixed wheels allow for easy maneuvering
Great Lines Every Time
FlexDie- Delivers excellent line quality with deep-die, all steel construction and built-in adjustability
- Direct flames keep die ready
- Easily adjust to match dies for following marks and creating straight lines
Bead Dispensing
Bead Dispenser- 8.5 or 12.5 in dispenser with toolless adjustments for line width and drop rate
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Thermoplastics |
|---|---|
| Compatible Surfaces | Pavement |
| Includes | 12 in FlexDie |
| Maximum Working Pressure (psi) | 250 |
| Model | ThermoLazer |
| Number of Colors | One Color |
| Number of Hoppers | 1 |
| Series | 200TC |
| Type | Walk-Behind Line Striper |
| Compatible Material | Thermoplastics |
| Compatible Surfaces | Pavement |
| Includes | 12 in FlexDie |
| Maximum Working Pressure (bar) | 17.24 |
| Maximum Working Pressure (kPa) | 172.4 |
| Maximum Working Pressure (psi) | 250 |
| Model | ThermoLazer |
| Number of Colors | One Color |
| Number of Hoppers | 1 |
| Series | 200TC |
| Type | Walk-Behind Line Striper |
