Mark HD V

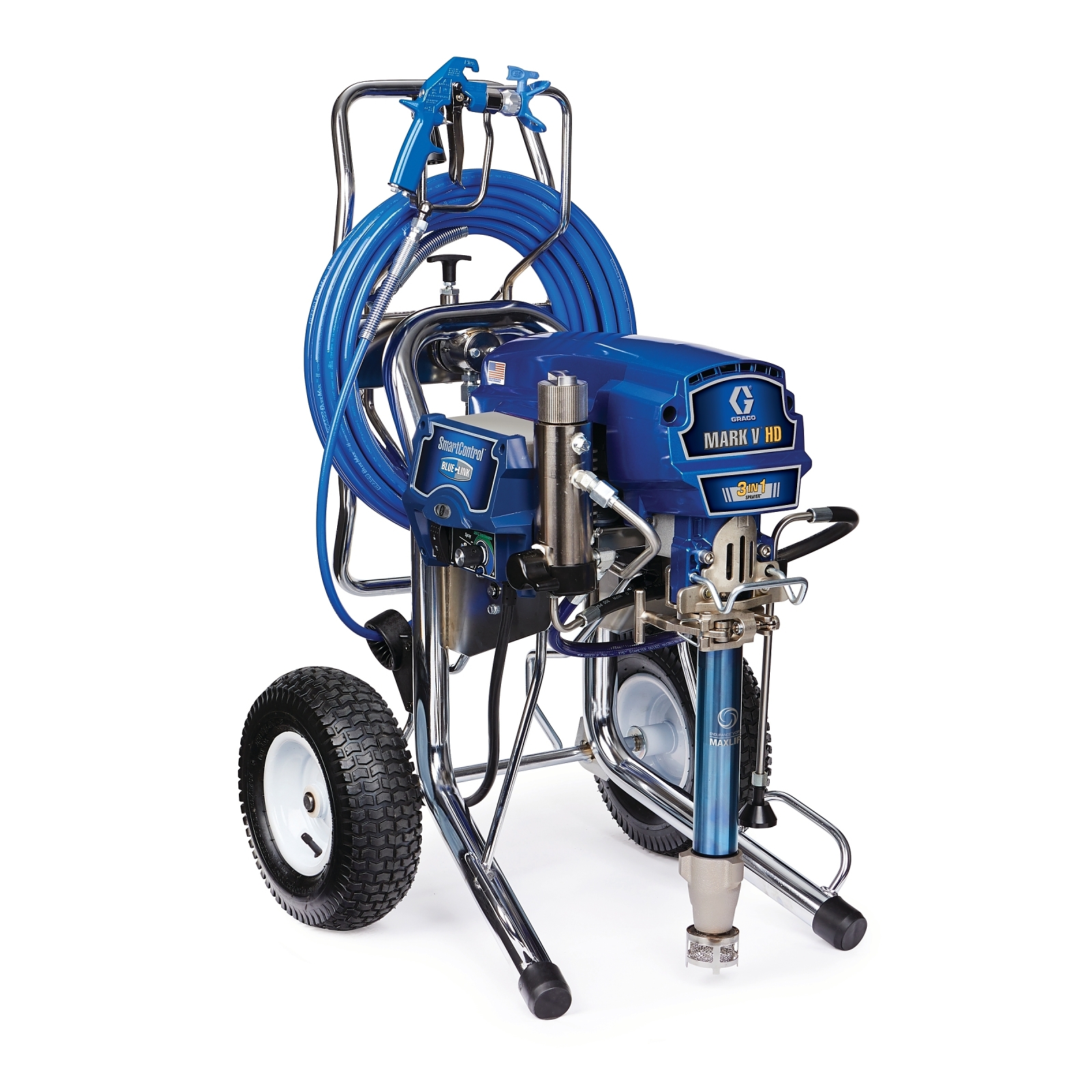

Mark V HD 3-in-1 ProContractor Series Electric Airless Sprayer

Part Number: 17E606

product image product image product image product image

Mark HD V

Mark V HD 3-in-1 ProContractor Series Electric Airless Sprayer

Part Number: 17E606

The Mark V HD delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV HD, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Mark V HD delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV HD, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.

Work Smarter, Finish More Jobs. Mark HD ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.

  • Endurance Vortex MaxLife Piston Pump
    • Superior pump life
    • Breakthrough vortex rotating rod technology
    • Lasts 6X longer between repacks with innovative MaxLife technology
    • Oversized passages for high velocity flow to rotate piston for even wear Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
  • SmartControl 4.0 with ProGuard Protection System
    • Precision Pressure Control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • ProGuard prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
  • QuikReel Hose Management System
    • Easy hose management
    • Deploy and rewind up to 300 feet (90 meters) of hose in seconds
    • No twisting, kinking, and coiling
    • Use only the hose you need — the rest stays on the reel
  • ProConnect 2 Pump Replacement System
    • Eliminate costly downtime
    • Exchange pump in minutes
    • No tools, pins or parts to lose
  • FastFlush 2 System
    • Fast cleaning now even FASTER
    • Clean the pump 6X faster using ½ the water
    • High-velocity fluid flow delivered with 60% higher motor speed
  • Crushproof Inlet Strainer
    • Durable filtration
    • Stands up to harsh impacts to maintain even flow through filter
  • MaxPower Motor & Precision Advantage Drive
    • Proven power and performance for all painting applications
    • High-torque brushless design with a Lifetime Warranty
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation and a lifetime warranty
  • Additional Features:
    • WatchDog Pump Protection System
    • Easy Out Filter Manifold
    • Heavy-Duty Prime Valve
    • Rugged, Durable Cart Design with Kickstand

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 20
Compatible Replacement Pump 17H833
Convertible Non-Convertible
Engine Size (HP) 2.8
Features Endurance Vortex MaxLife Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, QuikReel, ProConnect 2, FastFlush 2, Crushproof Inlet Strainer, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Hose Reel Type QuikReel
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Maximum Flow Rate (GPM) 1.35
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.039
Maximum Tip Size 1 Gun (in) 0.039
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Mark HD
Motor Type MaxPower
Number of Guns 1
Overall Height (in) 39
Overall Length (in) 28
Overall Width (in) 24
Power Rating (HP) 2.8
Power Rating (W) 2088
Power Rating (kW) 2.09
Power Source Electric
Pressure Control Type SmartControl 4.0
Product Series ProContractor
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Recommended Annual Usage 100-200 gallons per week
Series V
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 110
Weight (lb) 151
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
Amperage (A) 20
Compatible Replacement Pump 17H833
Convertible Non-Convertible
Features Endurance Vortex MaxLife Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, QuikReel, ProConnect 2, FastFlush 2, Crushproof Inlet Strainer, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (in) 3/8
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Hose Reel Type QuikReel
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Maximum Flow Rate (L/min) 5.1
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (cm) 0.0991
Maximum Tip Size (in) 0.039
Maximum Tip Size (mm) 0.9906
Maximum Tip Size 1 Gun (cm) 0.0991
Maximum Tip Size 1 Gun (in) 0.039
Maximum Tip Size 1 Gun (mm) 0.9906
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Mark HD
Motor Type MaxPower
Number of Guns 1
Overall Height (cm) 99
Overall Height (mm) 990
Overall Length (cm) 71
Overall Length (mm) 710
Overall Width (cm) 61
Overall Width (mm) 610
Power Rating (W) 2088
Power Rating (kW) 2.09
Power Source Electric
Pressure Control Type SmartControl 4.0
Product Series ProContractor
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Recommended Annual Usage 100-200 gallons per week
Series V
Type Airless Sprayer
Voltage (V) 120
Volume Per Cycle (cycles/gal) 110
Weight (kg) 68
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass

What's Included

Part No. Description Qty Unit
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X 1 ea
LTX427 RAC X SwitchTip, 427 1 ea
LTX531 RAC X SwitchTip, 531 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea

Repair Parts

Part No. Description
244068 Easy Out Pump Manifold Filter, Long, 100 mesh
244069 Easy Out Pump Manifold Filter, Long, 200 mesh
244071 Easy Out Pump Manifold Filter, Long, 30 mesh
244067 Easy Out Pump Manifold Filter, Long, 60 mesh
248215 KIT, REPAIR, INTAKE TUBE
257188 KIT, REPAIR, MOTOR, C104 1595
244240 KIT, REPAIR, RETURN LINE, HI
243222 Pressure Control Transducer Repair Kit
24V029 KIT,REPAIR,HOSE,COUPLED, 1/2"
117285 PACKING, O-RING
118494 PACKING, O-RING
116752 SWITCH, ROCKER
15C766 TUBE, DIFFUSION
24B156 HD Prime Valve
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X
