TexSpray 7900HD

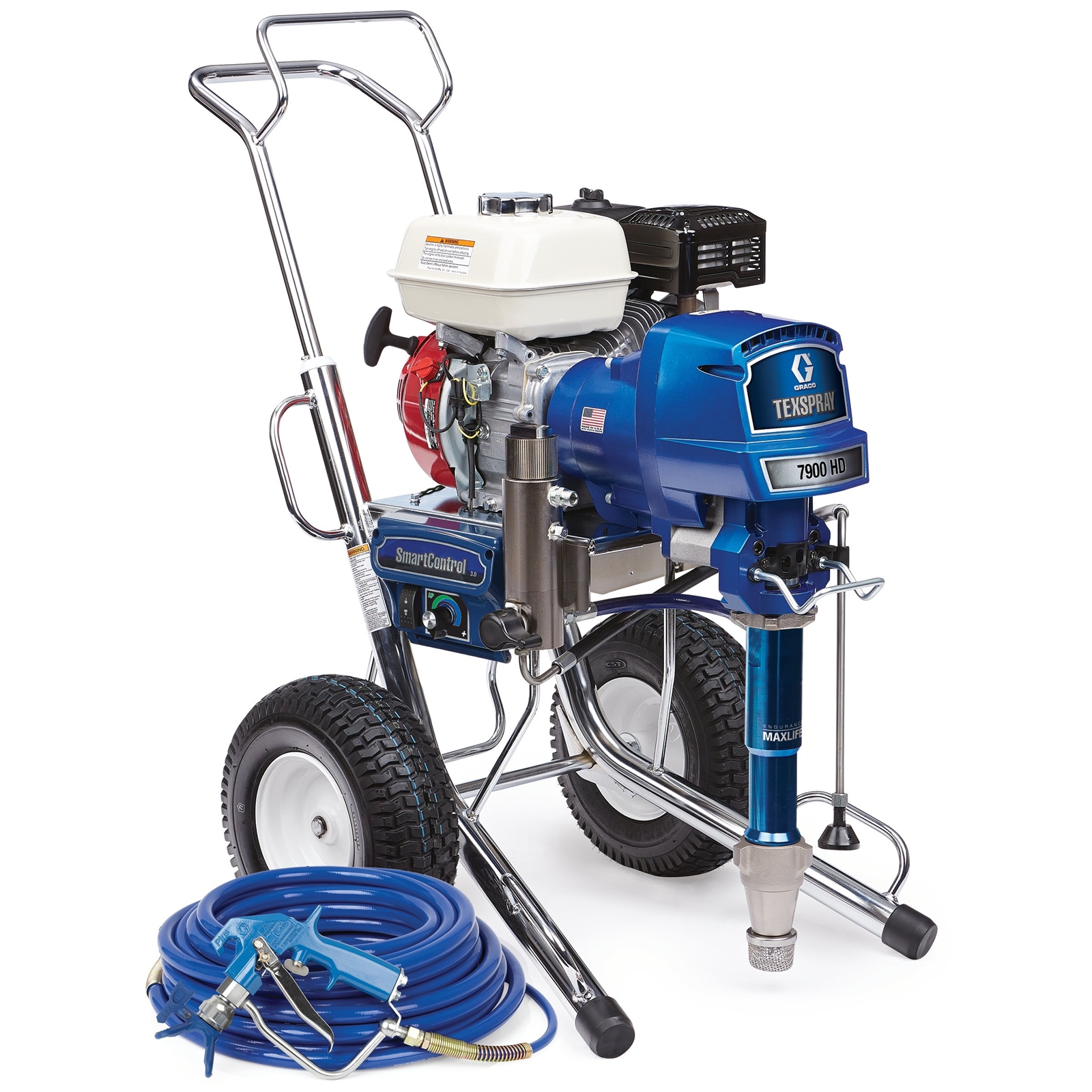

TexSpray 7900 HD Standard Series Gas Airless Sprayer

17E841

17E841_TexSpray_7900_HD_Standard_190520_Main

TexSpray 7900HD

TexSpray 7900 HD Standard Series Gas Airless Sprayer

17E841

The Graco TexSpray 7900 HD airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Level 5 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings.

Features

Product Brochure
The Graco TexSpray 7900 HD airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Level 5 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings.

Everyday Reliability. TexSpray HD Standard Series airless texture sprayers deliver unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.

  • Endurance MaxLife Piston Pump
    • Lasts 6X longer between repacks
    • Features exclusive hardened MaxLife sleeve and rod
    • Oversized clearances ensure minimal pressure drop
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • SmartControl 3.0
    • Consistent spray fan & pressure control
    • Ideal for low overspray applications with the lowest dead band at any pressure
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved jobsite conditions with extremely quiet operation
    • Lifetime Warranty
  • Honda® GX Engine
    • Reliable, Powerful & Easy-to-Start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
  • Rugged, Durable Cart Design
    • Rugged and easy-to-move
    • Withstands tough jobsite conditions while absorbing impacts and vibrations
    • Easy hose storage with integrated hose wrap and telescoping handle
    • Easy loading with built-in lift handles
  • Heavy-Duty Prime Valve
    • Maintenance-free high-pressure dumping capability
17E841_TexSpray_7900_HD_Standard_190520_Main

Specifications

Technical Specifications

Convert to Metric
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Endurance MaxLife Pump, MaxFlo 2
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Includes Heavy-Duty Blue Texture Gun, RAC X 427 Spray Tip, RAC X 531 Spray Tip, RAC X Tip Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 2.2
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.048
Maximum Tip Size 1 Gun (in) 0.048
Maximum Tip Size 2 Guns (in) 0.035
Maximum Tip Size 3 Guns (in) 0.027
Maximum Tip Size 4 Guns (in) 0.023
Maximum Working Pressure (psi) 3300
Model TexSpray
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 40.5
Overall Length (in) 38.1
Overall Width (in) 24.4
Power Rating (HP) 6.5
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Series 7900HD
Type Airless Sprayer
Weight (lb) 153
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Endurance MaxLife Pump, MaxFlo 2
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Includes Heavy-Duty Blue Texture Gun, RAC X 427 Spray Tip, RAC X 531 Spray Tip, RAC X Tip Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 8.33
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.12192
Maximum Tip Size (mm) 1.2192
Maximum Tip Size 1 Gun (cm) 0.12192
Maximum Tip Size 1 Gun (mm) 1.2192
Maximum Tip Size 2 Guns (cm) 0.0889
Maximum Tip Size 2 Guns (mm) 0.889
Maximum Tip Size 3 Guns (cm) 0.06858
Maximum Tip Size 3 Guns (mm) 0.6858
Maximum Tip Size 4 Guns (cm) 0.05842
Maximum Tip Size 4 Guns (mm) 0.5842
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Model TexSpray
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (cm) 102.9
Overall Height (mm) 1029
Overall Length (cm) 96.8
Overall Length (mm) 968
Overall Width (cm) 62
Overall Width (mm) 620
Power Rating (HP) 6.5
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Series 7900HD
Type Airless Sprayer
Weight (kg) 69.5
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

What's Included

Part No. Description Qty Unit
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X 1 ea
LTX427 RAC X SwitchTip, 427 1 ea
LTX531 RAC X SwitchTip, 531 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea
