TexSpray 7900 HD

TexSpray 7900 HD IronMan Series Gas Airless Sprayer

17E843

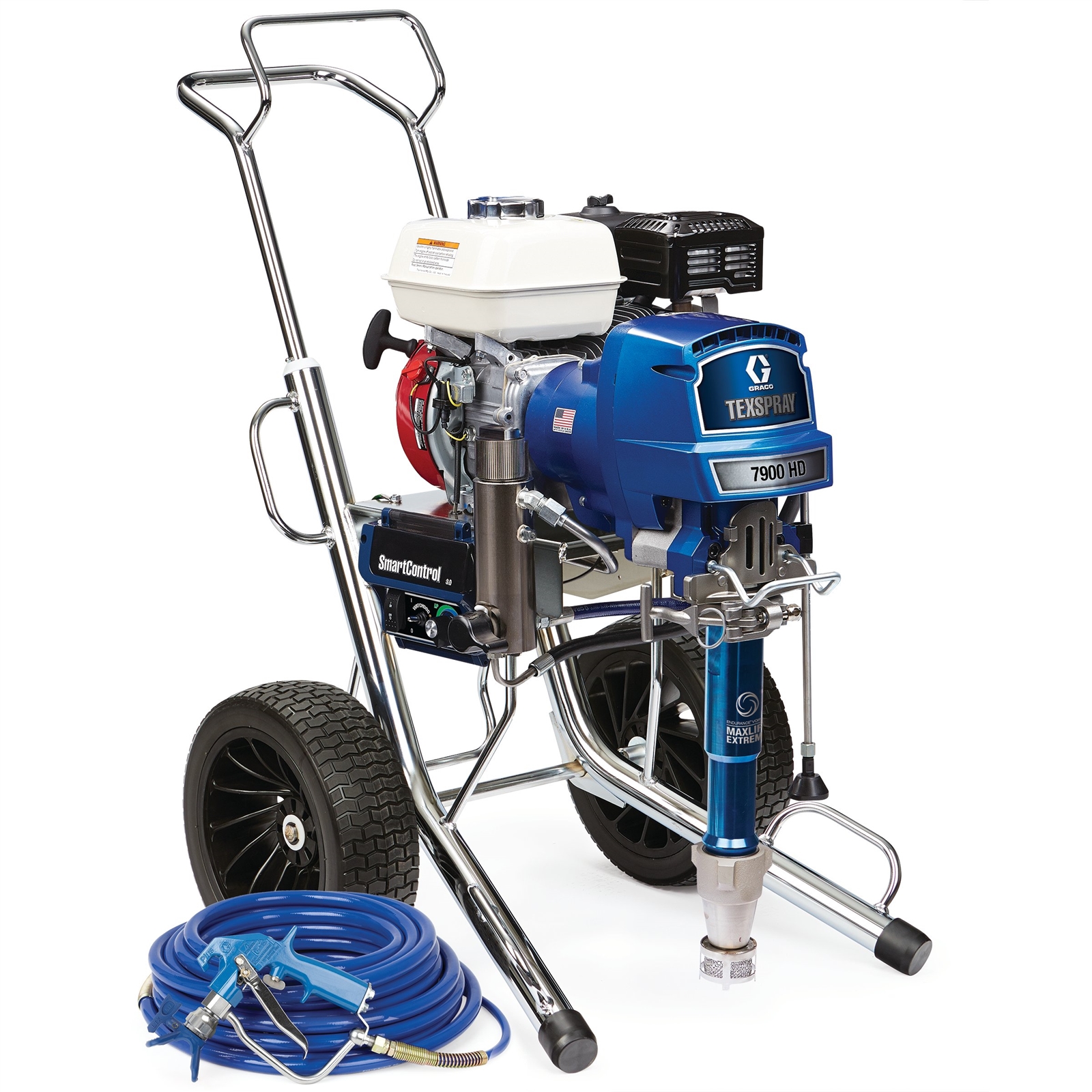

17E843_TexSpray_7900_HD_IronMan_190520_Main

TexSpray 7900 HD

TexSpray 7900 HD IronMan Series Gas Airless Sprayer

17E843

The Graco TexSpray 7900 HD airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Level 5 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings.

Features

Product Brochure
The Graco TexSpray 7900 HD airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Level 5 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings.

Beyond Jobsite Tough. TexSpray HD IronMan Series airless texture sprayers provide superior power & durability to handle the most brutal and demanding conditions typically found on large commercial and industrial job sites.

  • Endurance Vortex MaxLife Extreme Piston Pump
    • The longest durability & life
    • Breakthrough Vortex Rotating Piston Technology
    • Oversized passages for high velocity flow to rotate piston for even wear
    • Longest life packings and piston rod
    • 3X pump rod life
    • Maximum versatility no matter what you’re spraying
    • Long Life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • SmartControl 3.0
    • Consistent spray fan & pressure control
    • Ideal for low overspray applications with the lowest dead band at any pressure
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved joist conditions with extremely quiet operation
    • Lifetime Warranty
  • ProConnect 2 Pump Replacement System
    • Eliminate costly downtime
    • Exchange pump in minutes
    • No tools, pins or parts to lose
  • Flat Proof Tires
    • Never have a flat again
    • Tires can’t be punctured by nails, screws, or any sharp debris
  • LED Display
    • Easy-to-read display provides quick reference to show:
      • Pressure read-out
      • Job/lifetime/gallon counter
      • Self-diagnostics
  • Honda® GX Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Crushproof Inlet Strainer
    • Durable filtration
    • Stands up to harsh impacts to maintain even flow through filter
  • Additional Features:
    • Rugged, Durable Cart Design
    • Heavy-Duty Prime Valve
    • Easy Out Pump Filter
    • WatchDog Pump Protection System
17E843_TexSpray_7900_HD_IronMan_190520_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Replacement Pump 17H837
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Endurance Vortex MaxLife Extreme Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, ProConnect 2, Flat Proof Tires, LED Display, Honda Engine, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, Easy Out Filter, WatchDog
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 2.2
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.048
Maximum Tip Size 1 Gun (in) 0.048
Maximum Tip Size 2 Guns (in) 0.035
Maximum Tip Size 3 Guns (in) 0.027
Maximum Tip Size 4 Guns (in) 0.023
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Model TexSpray
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 38.8
Overall Length (in) 40.4
Overall Width (in) 24.4
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife Extreme
Pump Sleeve Material MaxLife
Recommended Annual Usage 100-200 gallons per week
Series 7900 HD
Type Airless Sprayer
Weight (lb) 175
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Replacement Pump 17H837
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Endurance Vortex MaxLife Extreme Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, ProConnect 2, Flat Proof Tires, LED Display, Honda Engine, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, Easy Out Filter, WatchDog
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 8.33
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.1219
Maximum Tip Size (mm) 1.219
Maximum Tip Size 1 Gun (cm) 0.1219
Maximum Tip Size 1 Gun (mm) 1.219
Maximum Tip Size 2 Guns (cm) 0.0889
Maximum Tip Size 2 Guns (mm) 0.889
Maximum Tip Size 3 Guns (cm) 0.06858
Maximum Tip Size 3 Guns (mm) 0.6858
Maximum Tip Size 4 Guns (cm) 0.05842
Maximum Tip Size 4 Guns (mm) 0.5842
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model TexSpray
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (cm) 98.6
Overall Height (mm) 986
Overall Length (cm) 102.6
Overall Length (mm) 1026
Overall Width (cm) 62.0
Overall Width (mm) 620
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife Extreme
Pump Sleeve Material MaxLife
Recommended Annual Usage 100-200 gallons per week
Series 7900 HD
Type Airless Sprayer
Weight (kg) 80
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

What's Included

Part No. Description Qty Unit
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X 1 ea
LTX427 RAC X SwitchTip, 427 1 ea
LTX531 RAC X SwitchTip, 531 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea
