LineLazer V 3900

LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns

17H453

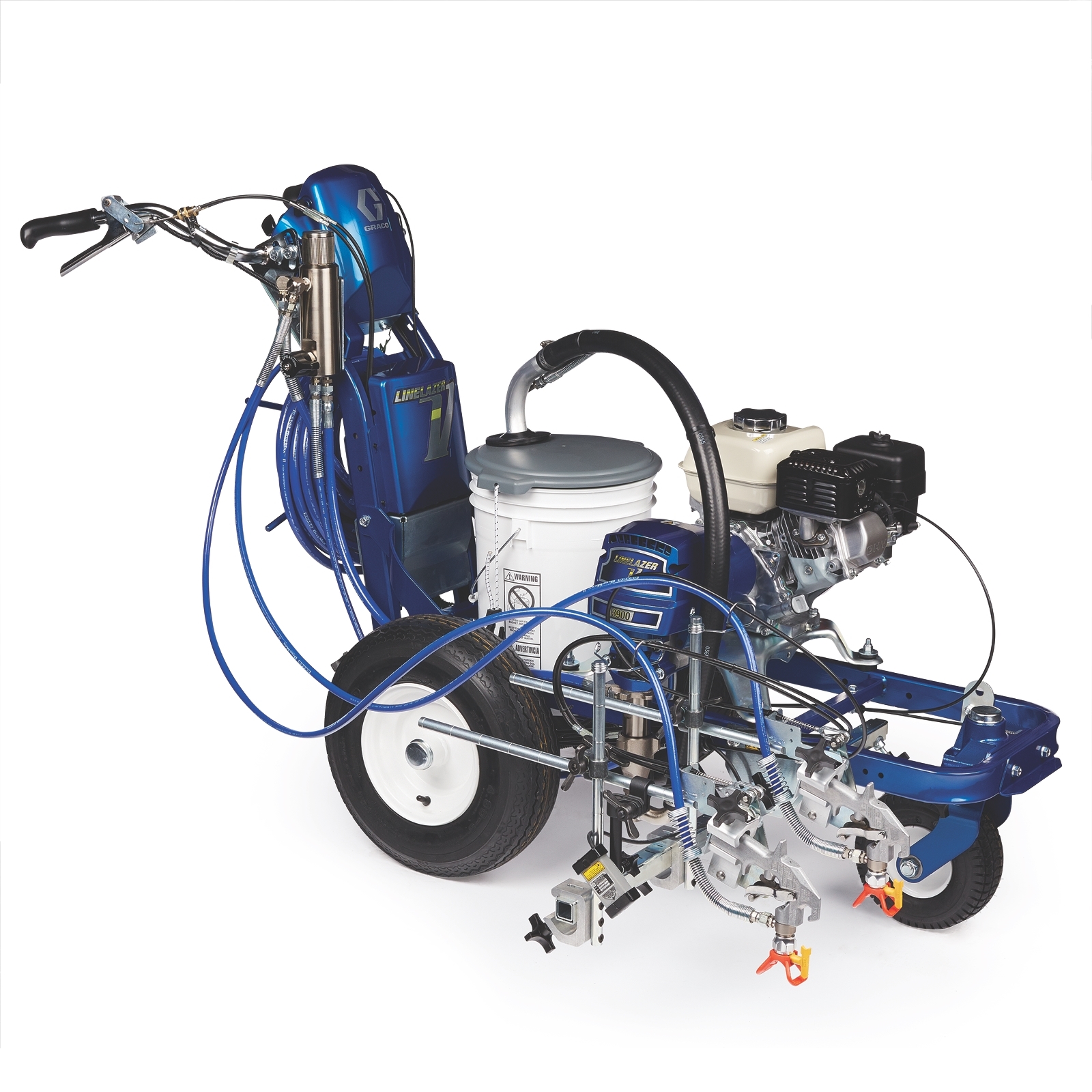

17H452_LineLazer_V_3900_HP_Automatic_2Gun_Main
LineLazer V 3900 HP Automatic, 2 Gun, 3/4 qtr, 17H453

LineLazer V 3900

LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns

17H453

For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster and increase your profitability.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster and increase your profitability.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Auto-Layout II
    • Simplify Parking Lot Layout
    • SmartControl measures while you walk and puts down pre-marks
    • No need for measuring tape, string lines or aerosol cans
    • Cuts your layout time in half
  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • J-Log System with USB Download
    • Valuable Job Information
    • Proof of job = More striping opportunities.
    • USB download capability allows you to capture and save all job data
  • Honda GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Additional Features

    • QuikSelect Gun Selector
    • Easy Out Pump Filter
    • LazerGuide 1700 Start/Stop Laser
17H452_LineLazer_V_3900_HP_Automatic_2Gun_Main

Specifications

Technical Specifications

Convert to Metric
Bead System No Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model Honda GX
Features Auto-Layout II, Automatic Gun, J-Log Data Loggin System, On-Board Power
Fuel Tank Capacity (gal) 0.66
Gun Activation Automatic
Includes Easy Out Filter, Gun, Hose, Switch Tip
Maximum Flow Rate (GPM) 1.25
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (in) 0.025
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Power Rating (HP) 4
Power Rating (W) 2980
Power Rating (kW) 2.98
Power Source Gas
Pump Type QuikChange System
Series 3900
Type Walk-Behind Line Striper
Weight (lb) 240
Bead System No Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model Honda GX
Features Auto-Layout II, Automatic Gun, J-Log Data Loggin System, On-Board Power
Fuel Tank Capacity (L) 2.5
Gun Activation Automatic
Includes Easy Out Filter, Gun, Hose, Switch Tip
Maximum Flow Rate (L/min) 4.73
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (cm) 0.0635
Maximum Tip Size (mm) 0.635
Maximum Working Pressure (bar) 227.5
Maximum Working Pressure (kPa) 22750
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Power Rating (HP) 4
Power Rating (W) 2980
Power Rating (kW) 2.98
Power Source Gas
Pump Type QuikChange System
Series 3900
Type Walk-Behind Line Striper
Weight (kg) 108.9
