LineLazer V 5900

LineLazer V 5900 Standard Series Gas Airless Line Striper, 2 Manual Guns

17H455

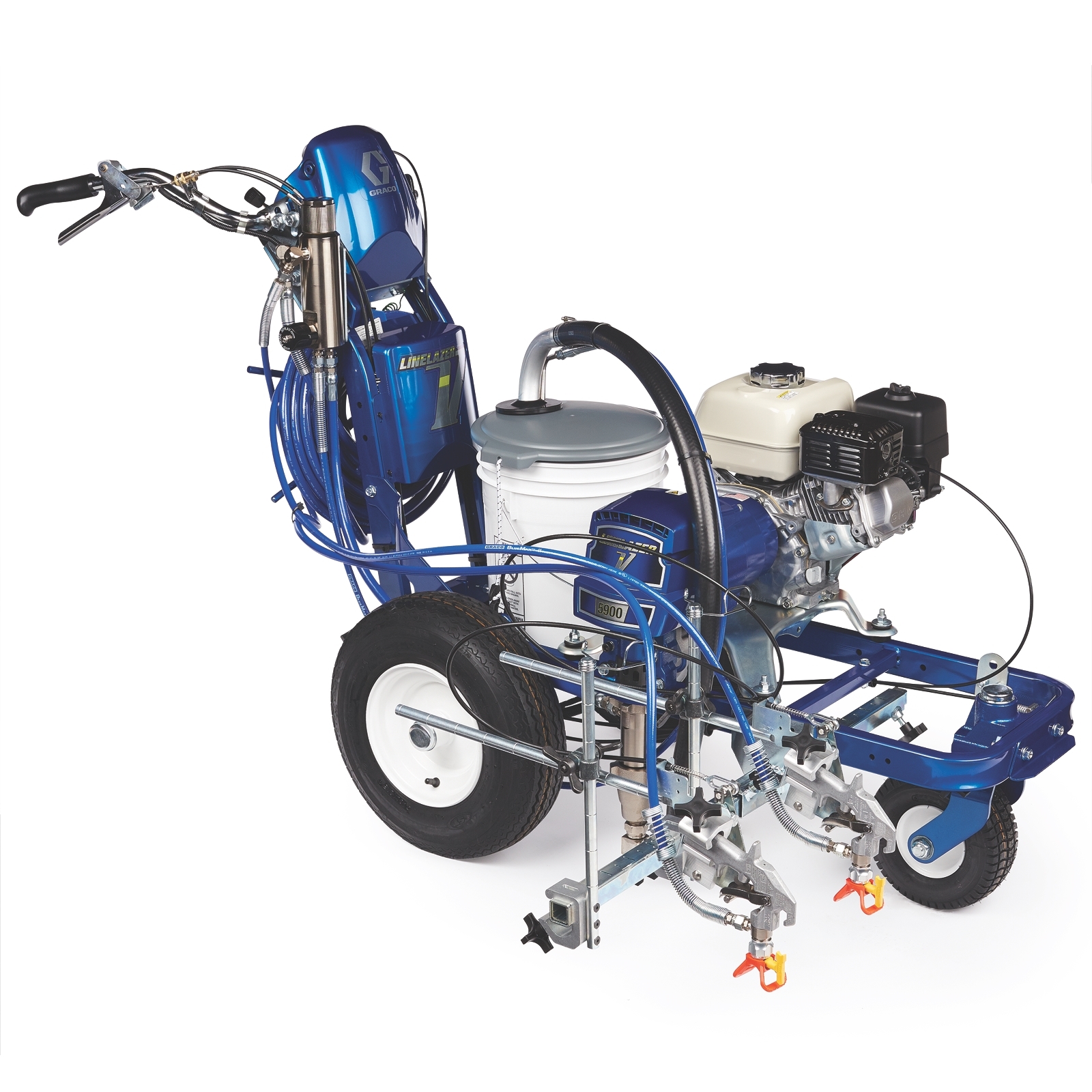

17H455_LineLazer_V_5900_Standard_2Gun_Main
LineLazer V 5900, 2 Gun, 3/4 qtr, 17H455

LineLazer V 5900

LineLazer V 5900 Standard Series Gas Airless Line Striper, 2 Manual Guns

17H455

When it’s time for 1 or 2-gun airless line striping performance with extra power, the LineLazer V 5900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
When it’s time for 1 or 2-gun airless line striping performance with extra power, the LineLazer V 5900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.

The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.

  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • Honda GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • QuikSelect Gun Selector
    • Simple Gun Control
    • Independently control of two guns with one lever — solid/skip
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
17H455_LineLazer_V_5900_Standard_2Gun_Main

Specifications

Technical Specifications

Convert to Metric
Bead System No Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model Honda GX
Features Dual Handle Bar System, Front Wheel Align System, Gun Adjustment System, SmartControl
Fuel Tank Capacity (gal) 0.95
Gun Activation Manual
Includes Easy Out Filter, Gun, Hose, Switch Tip
Maximum Flow Rate (GPM) 1.6
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (in) 0.029
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Power Rating (HP) 5
Power Rating (W) 3730
Power Rating (kW) 3.73
Power Source Gas
Pump Type QuikChange System
Series 5900
Standards Met CE
Type Walk-Behind Line Striper
Weight (lb) 250
Bead System No Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model Honda GX
Features Dual Handle Bar System, Front Wheel Align System, Gun Adjustment System, SmartControl
Fuel Tank Capacity (L) 3.6
Gun Activation Manual
Includes Easy Out Filter, Gun, Hose, Switch Tip
Maximum Flow Rate (L/min) 6.06
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (cm) 0.0737
Maximum Tip Size (mm) 0.737
Maximum Working Pressure (bar) 227.5
Maximum Working Pressure (kPa) 22750
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Power Rating (HP) 5
Power Rating (W) 3730
Power Rating (kW) 3.73
Power Source Gas
Pump Type QuikChange System
Series 5900
Standards Met CE
Type Walk-Behind Line Striper
Weight (kg) 113.4
