LineLazer V 200HS

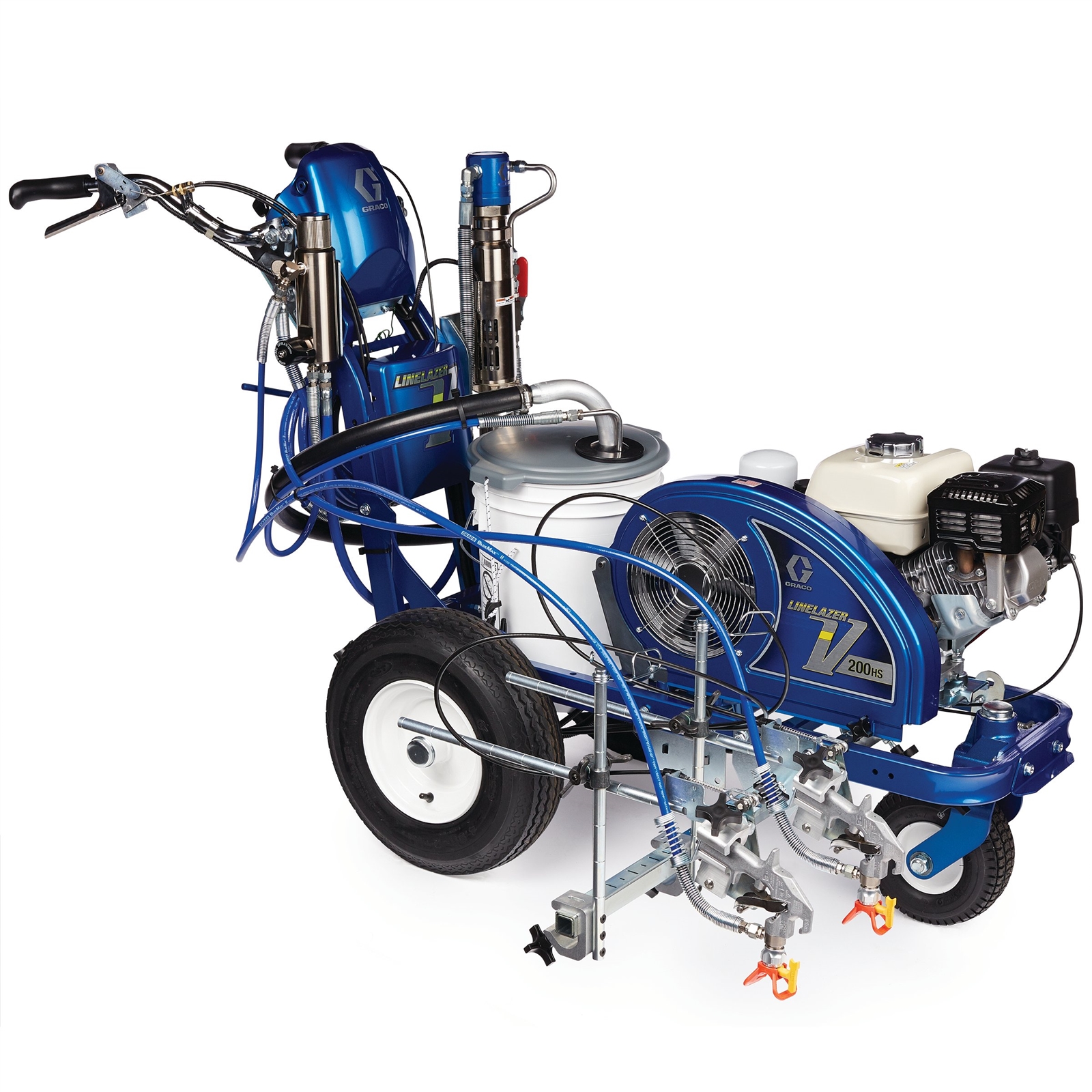

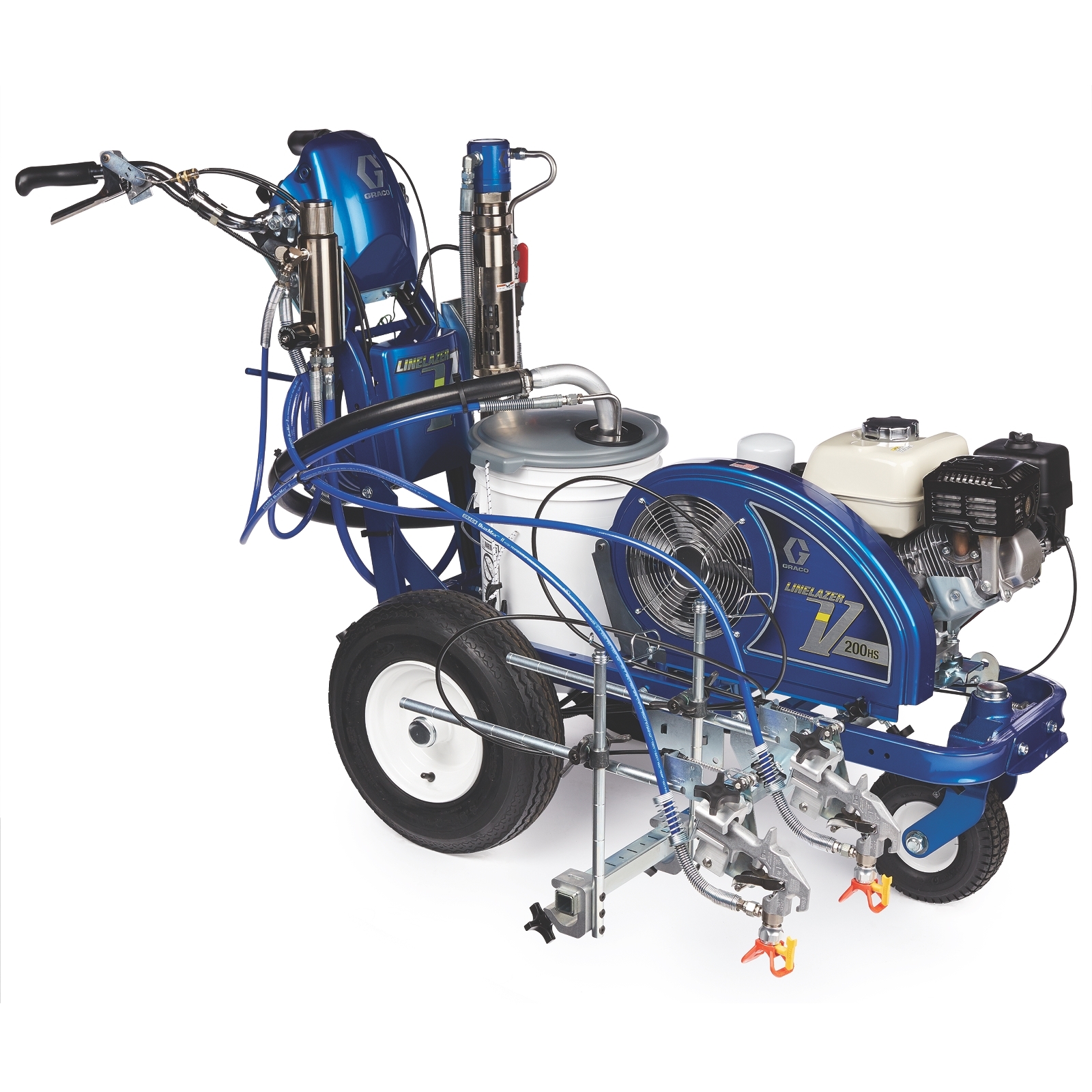

LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 2 Manual Guns

Part Number: 17H461

product image

LineLazer V 200HS

LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 2 Manual Guns

Part Number: 17H461

The LineLazer V 200HS Standard Series is a true workhorse designed for high performance striping on demanding jobs like large parking lots, airports, and city jobs that require precise lines.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The LineLazer V 200HS Standard Series is a true workhorse designed for high performance striping on demanding jobs like large parking lots, airports, and city jobs that require precise lines.

The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.

  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • High-Efficiency Hydraulic Motor
    • Uninterrupted Performance
    • No-Stall design
  • High-Capacity Cooling System
    • Reduced Downtime
    • Innovative design allows the pump to run cooler and more efficiently
    • Easier and more thorough fluid changes
    • Reservoir cooling fins deflect more heat
    • No special hydraulic fluid needed
  • QuikSelect Gun Selector
    • Simple Gun Control
    • Independently control of two guns with one lever — solid/skip
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs

Specifications & Documents

Technical Specifications

Convert to Metric
Attachments None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX200
Fuel Tank Capacity (gal) 0.95
Gun Activation 2 Manual
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (GPM) 2.15
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (in) 0.033
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Overall Height (in) 44.5
Overall Length (in) 68.75
Overall Width (in) 34.25
Power Rating (HP) 6.5
Power Rating (kW) 4.85
Power Source Gas Hydraulic
Product Series Standard
Pump Type Endurance
Recommended Annual Usage Up to 1,000 gallons per week
Series 200HS
Type Walk-Behind Line Striper
Weight (lb) 306
Attachments None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX200
Fuel Tank Capacity (L) 3.6
Gun Activation 2 Manual
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (L/min) 8.14
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (cm) 0.0838
Maximum Tip Size (in) 0.033
Maximum Tip Size (mm) 0.8382
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Overall Height (cm) 113.03
Overall Height (mm) 1130.3
Overall Length (cm) 174.63
Overall Length (mm) 1746.25
Overall Width (cm) 87.0
Overall Width (mm) 870
Power Rating (kW) 4.85
Power Source Gas Hydraulic
Product Series Standard
Pump Type Endurance
Recommended Annual Usage Up to 1,000 gallons per week
Series 200HS
Type Walk-Behind Line Striper
Weight (kg) 139

What's Included

Part No. Description Qty Unit
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 2 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
124884 HOSE, CPLD, 3/8" X 22' 1 ea
245226 HOSE, CPLD, 3/8" X 3' 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea

Repair Parts

Part No. Description
245103 Q KIT REPAIR, DRAIN VALVE
277068 Q GB KIT, REPAIR, PUMP
