LineLazer V 200DC

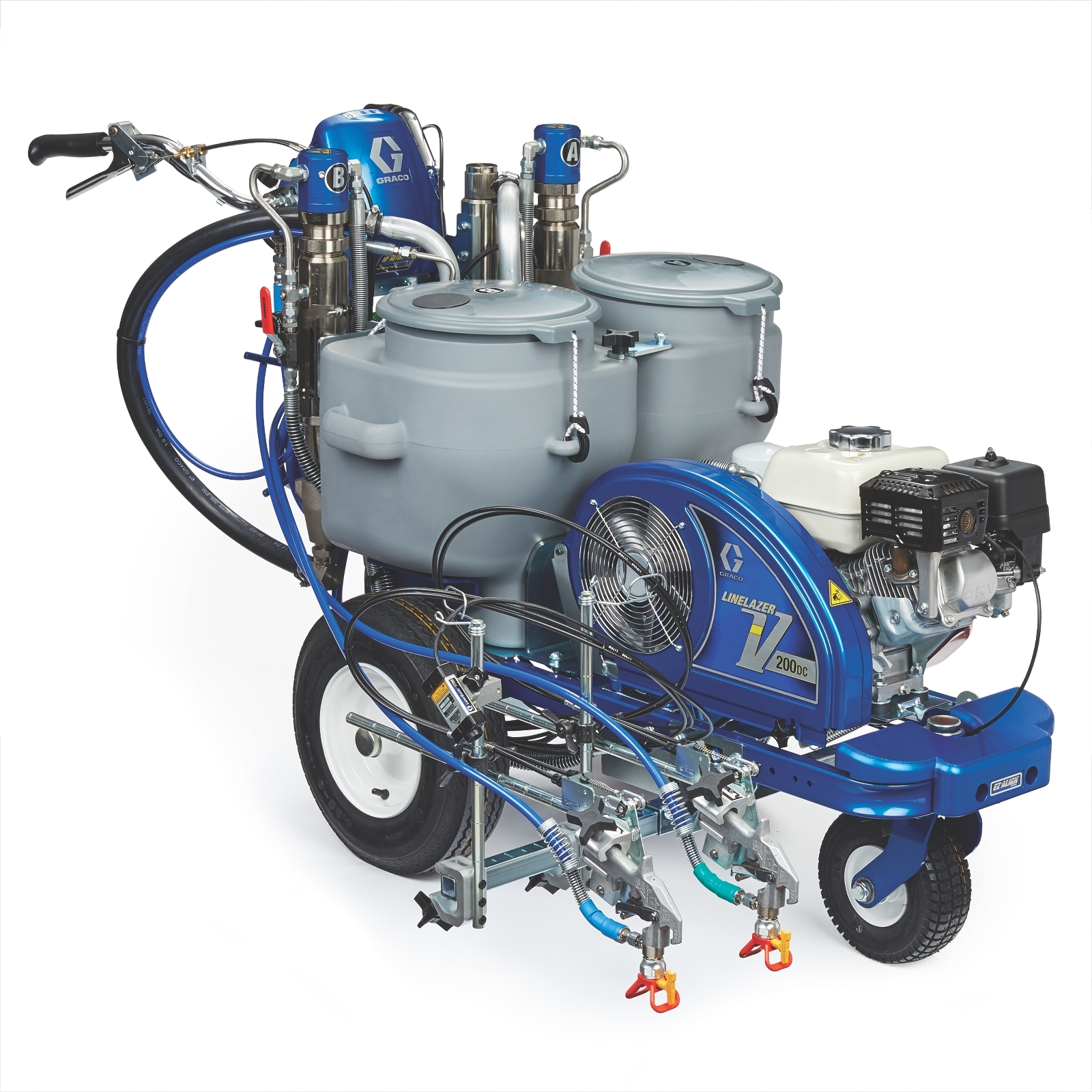

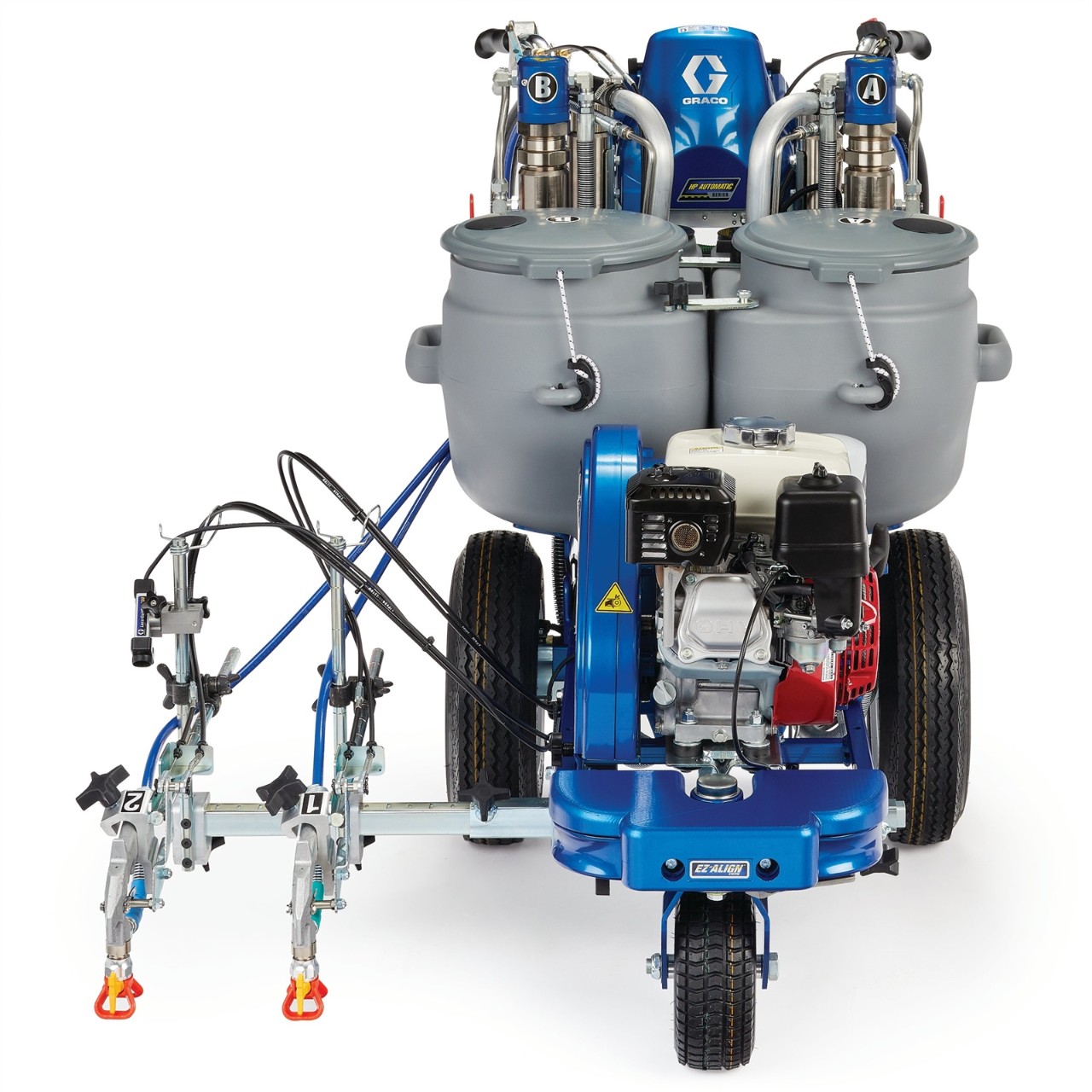

LineLazer V 200DC HP Automatic Series Airless Line Striper, 2 Auto Guns

17Y269

17Y269_LineLazer_V_200DC_HP_Automatic_190604_Main 17Y269_LineLazer_V_200DC_HP_Automatic_190604_Alt_1 17Y269_LineLazer_V_200DC_HP_Automatic_190604_Alt_2 17Y269_LineLazer_V_200DC_HP_Automatic_190604_Alt_3 17Y269_LineLazer_V_200DC_HP_Automatic_190604_Alt_4

LineLazer V 200DC

LineLazer V 200DC HP Automatic Series Airless Line Striper, 2 Auto Guns

17Y269

Ideal for smaller dual color jobs, the new LineLazer V 200DC simplifies the 2-color application process. Striping contractors can improve their efficiency and profitability by eliminating the need for separate “yellow” and “white” machines and spending less time refilling materials.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Ideal for smaller dual color jobs, the new LineLazer V 200DC simplifies the 2-color application process. Striping contractors can improve their efficiency and profitability by eliminating the need for separate “yellow” and “white” machines and spending less time refilling materials.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Auto-Layout II
    • Simplify Parking Lot Layout
    • SmartControl measures while you walk and puts down pre-marks
    • No need for measuring tape, string lines or aerosol cans
    • Cuts your layout time in half
  • J-Log System with USB Download
    • Valuable Job Information
    • Proof of job = More striping opportunities.
    • USB download capability allows you to capture and save all job data
  • Dual Color Capable
    • Two Units in One
    • No need for separate “yellow” and “white” machines
  • Large, Dual 10-Gallon Hoppers
    • Less Refilling
  • Dual High-Efficiency Hydraulic Motors
    • Uninterrupted Performance
    • Proven no-stall design
  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • Honda GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • Additional Features
    • EZ Align Wheel System
    • DualComfort Handlebar System
    • Endurance Chromex Pump
    • High-Capacity Cooling System
    • QuikSelect Gun Selector
    • Easy Out Pump Filter
    • LazerGuide 1700 Start/Stop Laser
17Y269_LineLazer_V_200DC_HP_Automatic_190604_Alt_2

Specifications

Technical Specifications

Convert to Metric
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX200
Features SmartControl
Fuel Tank Capacity (gal) 0.95
Gun Activation Automatic
Hopper Volume Capacity (gal) 10
Includes LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft BlueMax II Airless Hose (2), 3/8 in x 3 ft BlueMax II Airless Whip Hose (2), TSL, 4 oz
Maximum Flow Rate (GPM) 2.15
Maximum Tip Size (in) 0.047
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Guns 2
Number of Hoppers 2
Number of Pumps 2
Power Rating (HP) 6.5
Power Rating (W) 4850
Power Rating (kW) 4.85
Power Source Gas Hydraulic
Pump Type Endurance
Series 200DC
Type Walk-Behind Line Striper
Weight (lb) 397
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX200
Features SmartControl
Fuel Tank Capacity (L) 3.6
Gun Activation Automatic
Hopper Volume Capacity (L) 38
Includes LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft BlueMax II Airless Hose (2), 3/8 in x 3 ft BlueMax II Airless Whip Hose (2), TSL, 4 oz
Maximum Flow Rate (L/min) 8.14
Maximum Tip Size (cm) 0.1194
Maximum Tip Size (mm) 1.194
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model LineLazer V
Number of Guns 2
Number of Hoppers 2
Number of Pumps 2
Power Rating (HP) 6.5
Power Rating (W) 4850
Power Rating (kW) 4.85
Power Source Gas Hydraulic
Pump Type Endurance
Series 200DC
Type Walk-Behind Line Striper
Weight (kg) 180

What's Included

Part No. Description Qty Unit
25A530 KIT, ACCESSORY, LAZERGUIDE 1700 1 ea
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 2 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
245226 HOSE, CPLD, 3/8" X 3' 2 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea
