LineLazer V 200DC

LineLazer V 200DC HP Reflective Series Airless Line Striper, 1 Auto Guns, 1 Tank

17Y270

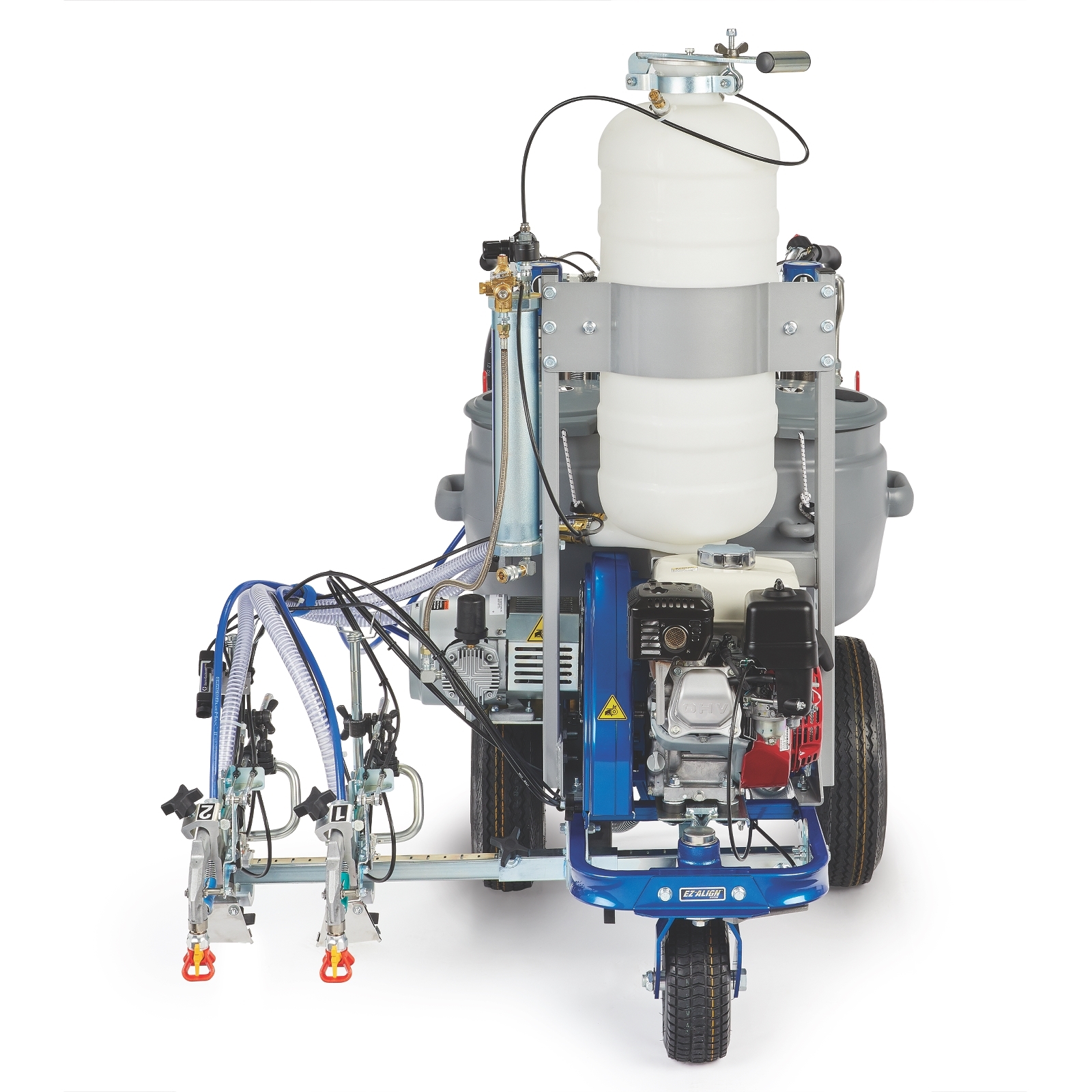

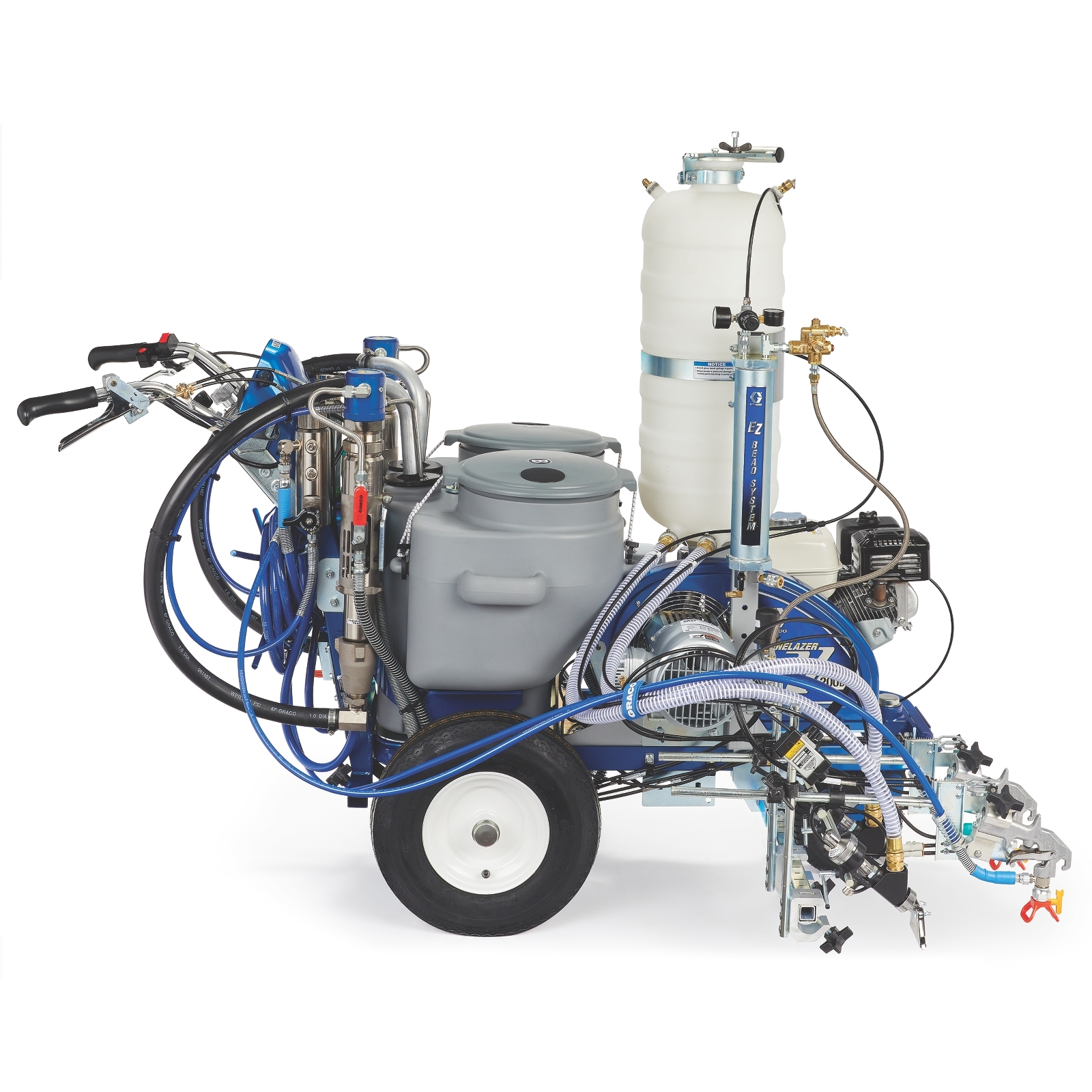

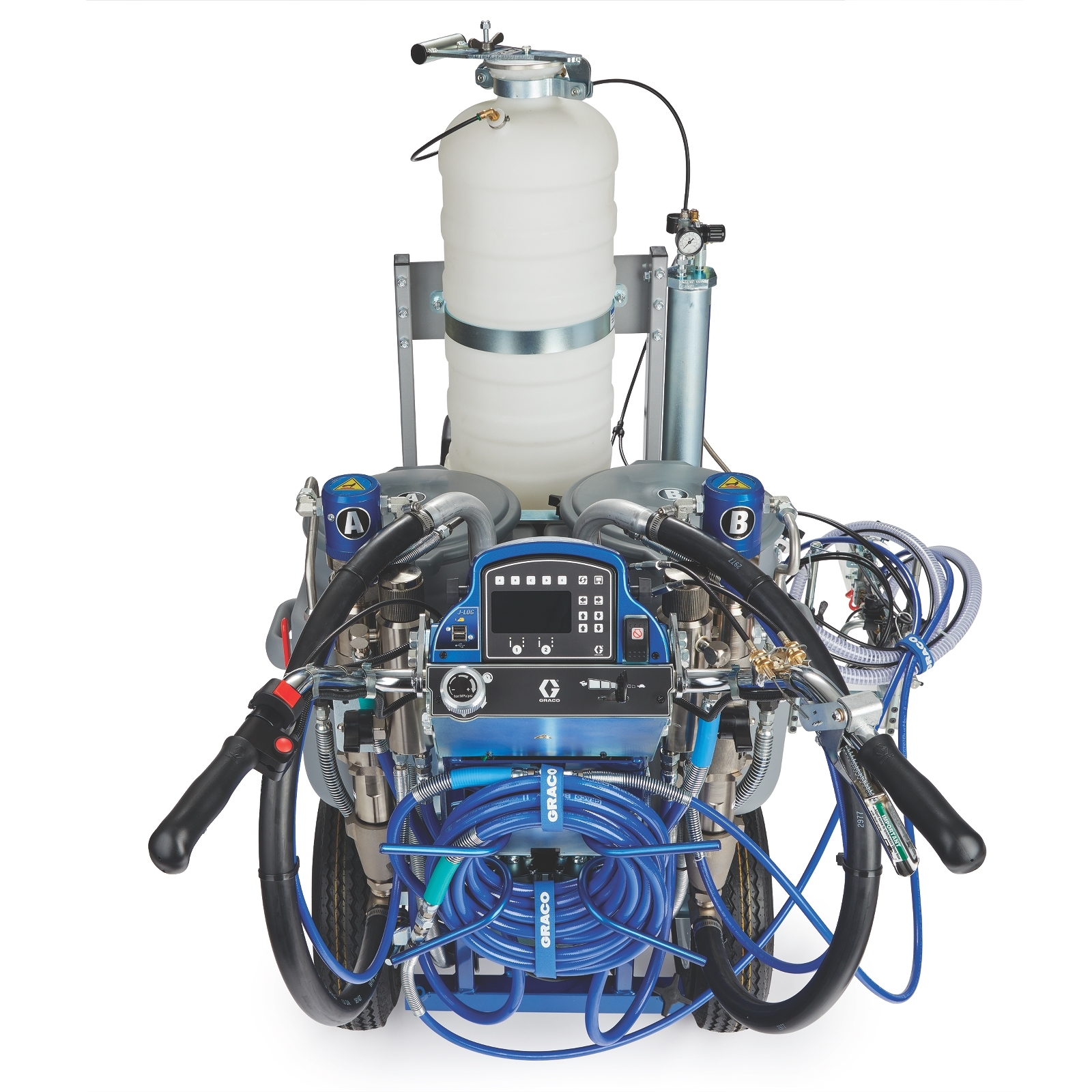

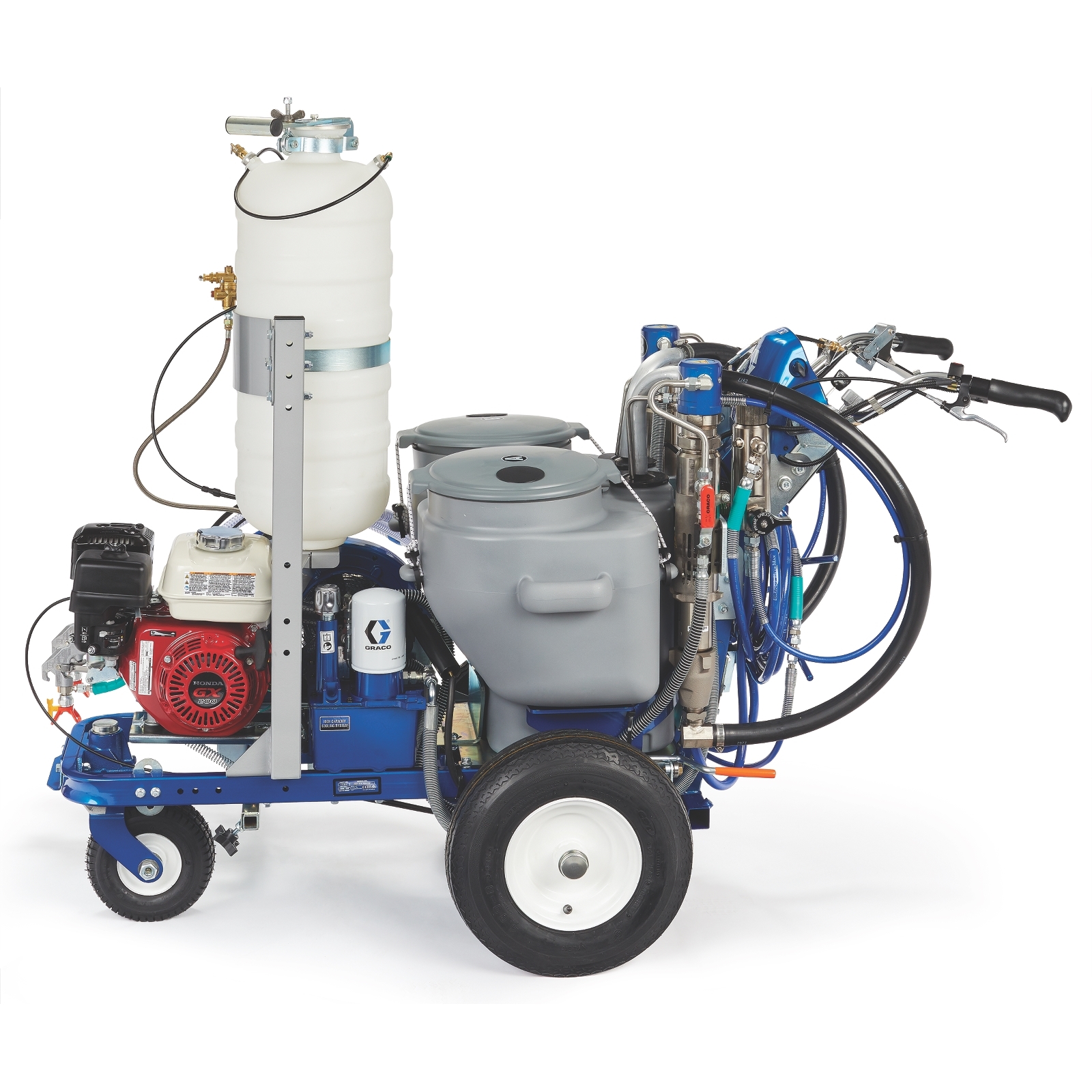

17Y270_LineLazer_V_200DC_HP_Reflective_Main 17Y270_LineLazer_V_200DC_HP_Reflective_Alt_1 17Y270_LineLazer_V_200DC_HP_Reflective_Alt_2 17Y270_LineLazer_V_200DC_HP_Reflective_Alt_3 17Y270_LineLazer_V_200DC_HP_Reflective_Alt_4

LineLazer V 200DC

LineLazer V 200DC HP Reflective Series Airless Line Striper, 1 Auto Guns, 1 Tank

17Y270

Ideal for smaller dual color jobs, the new LineLazer V 200DC simplifies the 2-color application process. Striping contractors can improve their efficiency and profitability by eliminating the need for separate “yellow” and “white” machines, while spending less time refilling materials.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Ideal for smaller dual color jobs, the new LineLazer V 200DC simplifies the 2-color application process. Striping contractors can improve their efficiency and profitability by eliminating the need for separate “yellow” and “white” machines, while spending less time refilling materials.

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Pressurized EZ Bead System
    • Superior bead application performance
    • Ensures proper bead flow and paint penetration
    • Hose clogging eliminated — desiccant air filter removes moisture
    • Large volume bead tank holds up to 120lbs
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Auto-Layout II
    • Simplify Parking Lot Layout
    • SmartControl measures while you walk and puts down pre-marks
    • No need for measuring tape, string lines or aerosol cans
    • Cuts your layout time in half
  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • J-Log System with USB Download
    • Valuable Job Information
    • Proof of job = More striping opportunities.
    • USB download capability allows you to capture and save all job data
  • Dual Color Capable
    • Two Units in One
    • No need for separate “yellow” and “white” machines
  • Large, Dual 10-Gallon Hoppers
    • Less Refilling
  • Dual High-Efficiency Hydraulic Motors
    • Uninterrupted Performance
    • Proven no-stall design
  • Honda GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Additional Features
    • EasyMark Gun Adjustment System
    • EZ Align Wheel System
    • DualComfort Handlebar System
    • Endurance Chromex Pump
    • High-Capacity Cooling System
    • QuikSelect Gun Selector
    • Easy Out Pump Filter
    • LazerGuide 1700 Start/Stop Laser

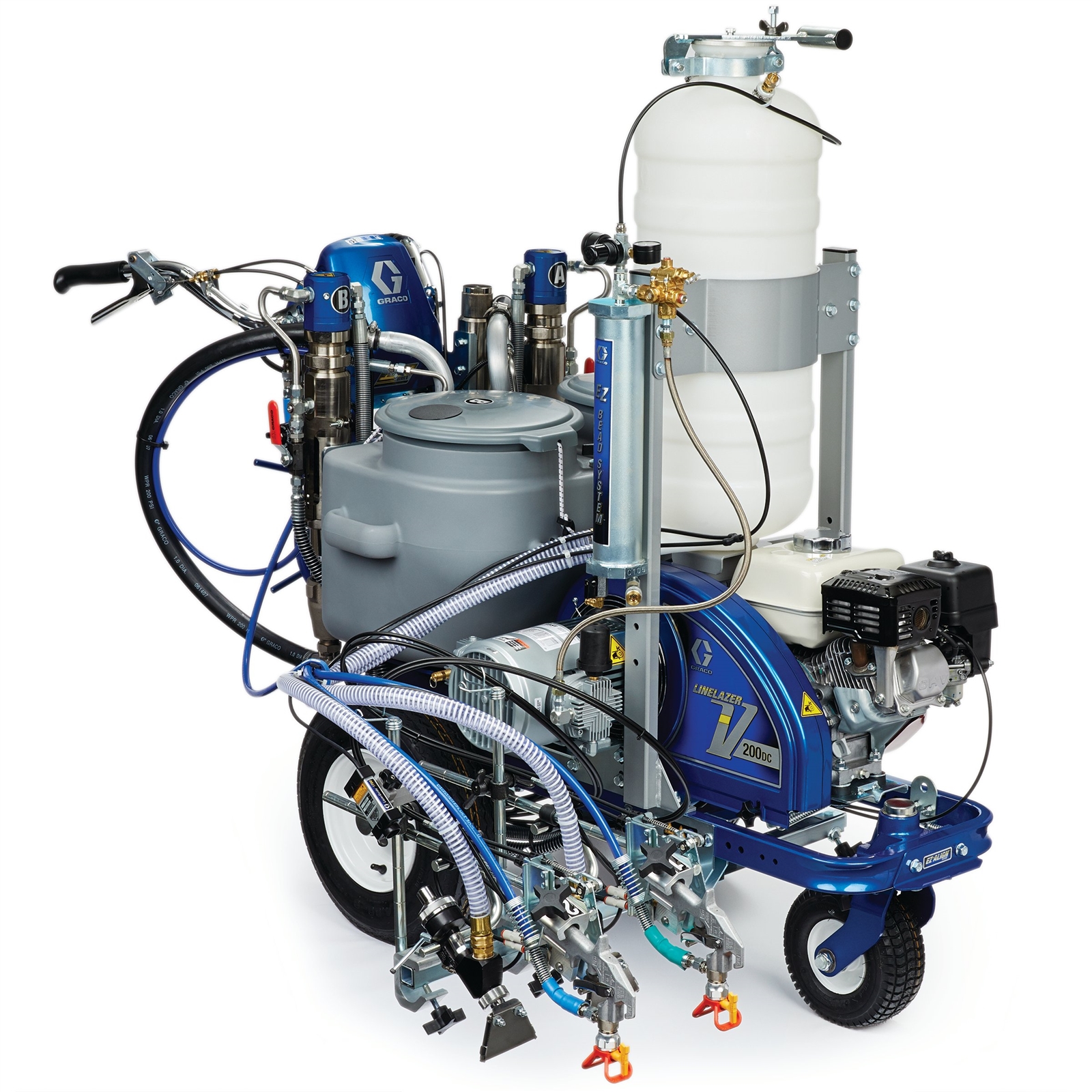

17Y270_LineLazer_V_200DC_HP_Reflective_Main

Specifications

Technical Specifications

Convert to Metric
Bead System Included
Bead Tank Size (lb) 120
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX200
Features SmartControl
Fuel Tank Capacity (gal) 0.95
Gun Activation Automatic
Includes Flex Plus Guns, One Bead Tank, (2) 3/8 in x 12 ft BlueMax II Airless Hose, LineLazer RAC 5 SwitchTip, 50 Mesh Filter, LazerGuide 1700 Start/Stop Laser
Maximum Flow Rate (GPM) 2.15
Maximum Tip Size (in) 0.047
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Guns 1
Number of Pumps 1
Power Rating (HP) 6.5
Power Source Gas
Pump Type QuikChange System
Series 200DC
Type Walk-Behind Line Striper
Weight (lb) 492
Bead System Included
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX200
Features SmartControl
Fuel Tank Capacity (L) 3.6
Gun Activation Automatic
Includes Flex Plus Guns, One Bead Tank, (2) 3/8 in x 12 ft BlueMax II Airless Hose, LineLazer RAC 5 SwitchTip, 50 Mesh Filter, LazerGuide 1700 Start/Stop Laser
Maximum Flow Rate (L/min) 8.1
Maximum Tip Size (cm) 0.1194
Maximum Tip Size (mm) 1.194
Maximum Working Pressure (bar) 227.5
Maximum Working Pressure (kPa) 22750
Model LineLazer V
Number of Guns 1
Number of Pumps 1
Power Rating (HP) 6.5
Power Source Gas
Pump Type QuikChange System
Series 200DC
Type Walk-Behind Line Striper
Weight (kg) 223
