President 10:1

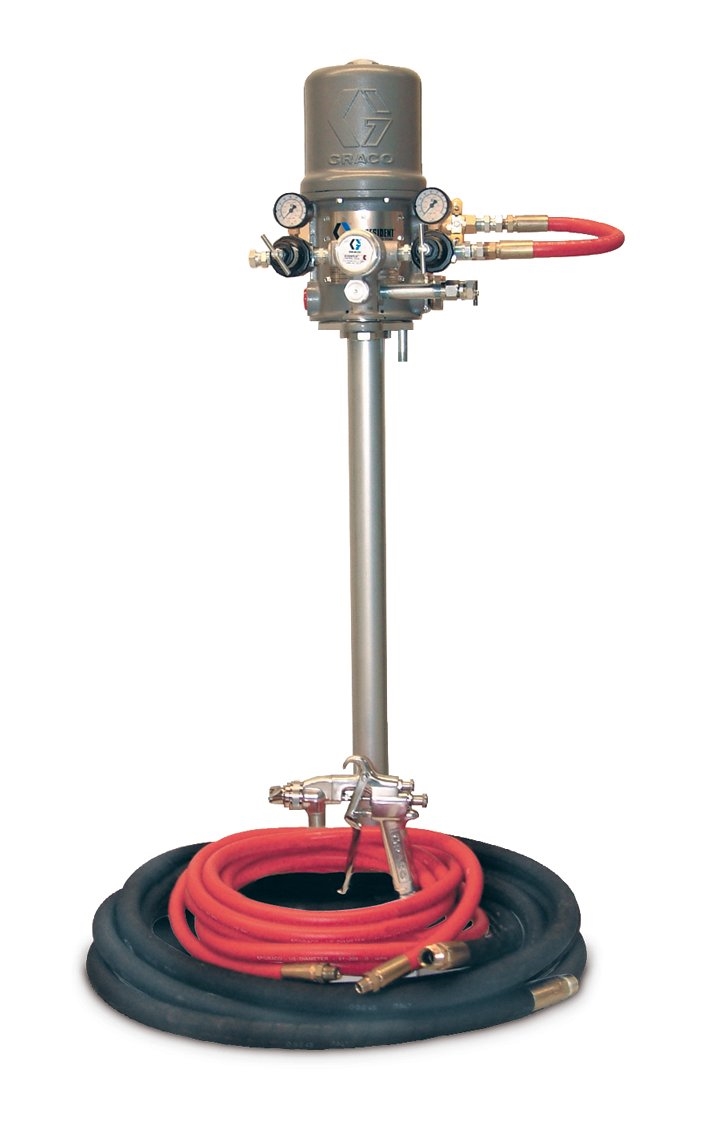

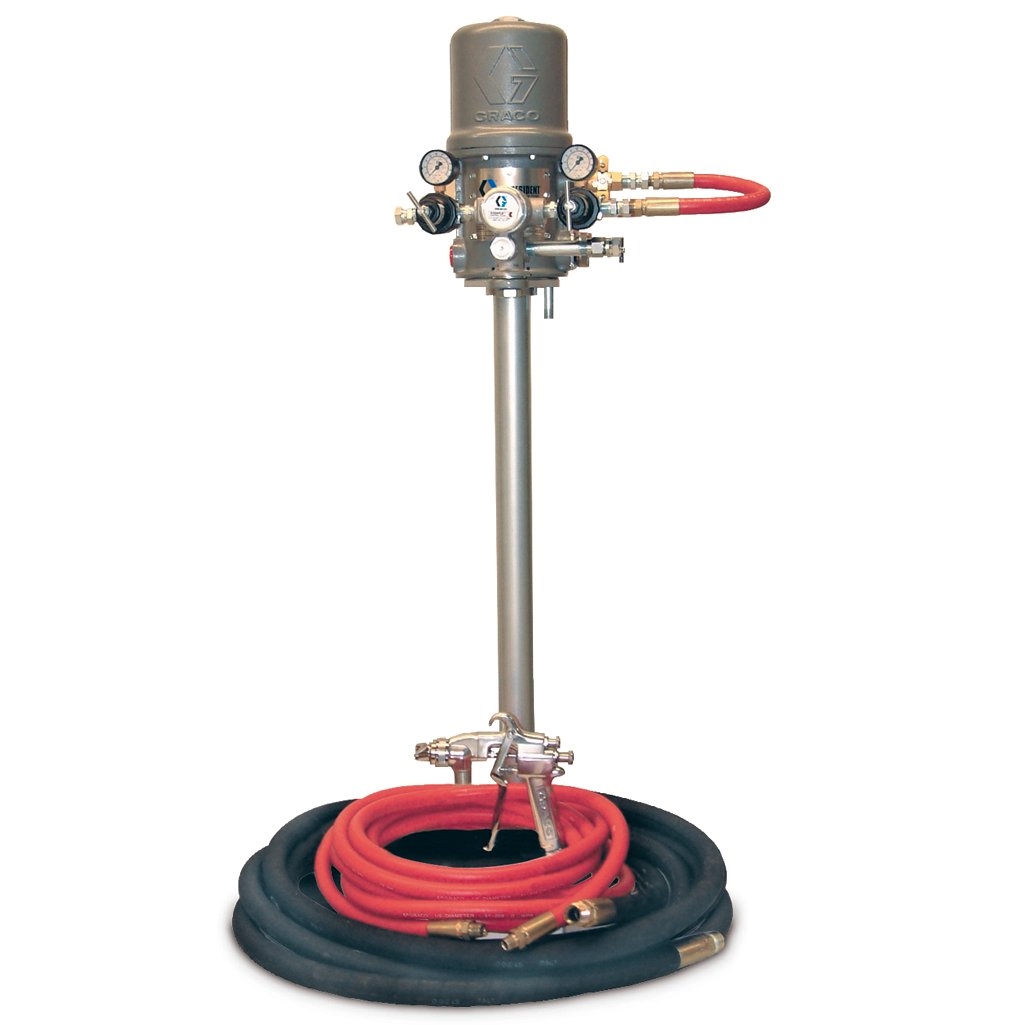

President 10:1 Carbon Steel Complete Air Spray System
Part Number: 225886
President 10:1
President 10:1 Carbon Steel Complete Air Spray System
Part Number: 225886
The President 10:1 is ideal for locations when pumping directly from the drum is required. The proven configuration is ideal for smooth to heavily aggregated materials containing silica sand, perlite, vermiculite or polystyrene.
Product is Discontinued
Replacement Product Not Available
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The President 10:1 is ideal for locations when pumping directly from the drum is required. The proven configuration is ideal for smooth to heavily aggregated materials containing silica sand, perlite, vermiculite or polystyrene.
Ideal for truck, trailer, or inplant locations, it features a high-output piston pump and EvenFlow Valve for consistent spray delivery.
- EvenFlow Valve
- Easy Set-up & Operation
- Smooth, even material flow with air regulators and pressure gauges
- Relax-A-Valve
- Consistent Finish Quality
- Eliminates the material blast and ensures a soft start with easy trigger pull
- High-Output Piston Pump
- Time-Saving Production Ratios
- Pump is preloaded with material from lower submerged foot valve position
- Texture delivery rates to 3.0 gpm (11 lpm) at 1000 psi (69 bar)
- Available in both carbon steel and stainless steel
- Heavy-Duty Graco Air Motor
- Maintenance-Free Design
- Proven air motor delivers years of reliable, dependable operation
- Convenient Drum Mount Set-Up
- Easy Drum Mounting
- Save space in your truck or on the job by mounting directly to material containers
- Use in open or closed head drums
Specifications & Documents
Technical Specifications
Convert to Metric| Construction | Stainless Steel, Nitralloy, Tungsten Carbide, Steel, Aluminum, Copper, Buna-N, Nitrile Rubber Leather |
|---|---|
| Includes | Pump, Evenflo Control, Air Supply Hose, Spray Gun, 25 ft (8 m) Air Atomizing and Fluid Hoses |
| Material Application | Liquid Waterproofing |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Flow Rate (GPM) | 3 |
| Maximum Hose Length (ft) | 200 |
| Maximum Working Pressure (psi) | 1800 |
| Model | President 10:1 |
| Power Source | Air |
| Spray Gun Type | Block Filler, Drywall Mud, Elastomeric Coating |
| Sprayer Type | Air Spray |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
| Weight (lb) | 95 |
| Construction | Stainless Steel, Nitralloy, Tungsten Carbide, Steel, Aluminum, Copper, Buna-N, Nitrile Rubber Leather |
| Includes | Pump, Evenflo Control, Air Supply Hose, Spray Gun, 25 ft (8 m) Air Atomizing and Fluid Hoses |
| Material Application | Liquid Waterproofing |
| Maximum Air Inlet Pressure (bar) | 13 |
| Maximum Air Inlet Pressure (kPa) | 130 |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Flow Rate (L/min) | 11.0 |
| Maximum Hose Length (m) | 7.5 |
| Maximum Working Pressure (bar) | 126 |
| Maximum Working Pressure (kPa) | 12600 |
| Maximum Working Pressure (psi) | 1800 |
| Model | President 10:1 |
| Power Source | Air |
| Spray Gun Type | Block Filler, Drywall Mud, Elastomeric Coating |
| Sprayer Type | Air Spray |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
| Weight (kg) | 43.1 |
Product Manuals
306479E, Evenflo Automatic Pressure Control Instructions-Parts Manual, English
(176 KB)
(English Only)
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
