Merkur merkur-es

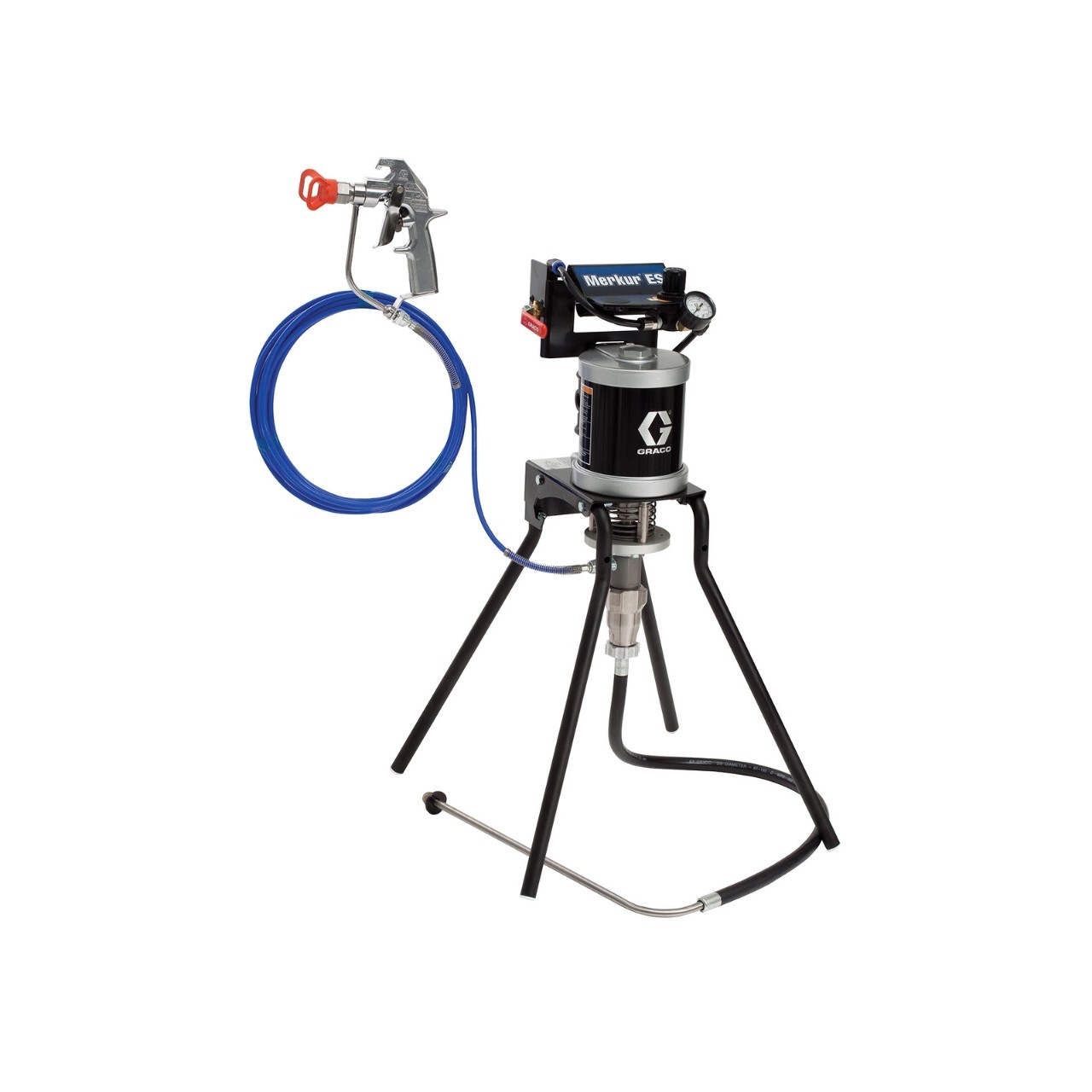

30:1 Merkur ES Airless Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with Silver Plus gun, suction hose, and plated steel
24F155
Merkur merkur-es
30:1 Merkur ES Airless Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with Silver Plus gun, suction hose, and plated steel
24F155
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
- Quick flush system requires less than 1 minute to flush
- 45% less material to fill the system than the leading competitors
- Delivers a superior, consistent spray finish
- Low profile spray package makes it easy to transport
- Easily set and monitor air control, plus an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leaves less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
Specifications
Technical Specifications
Convert to Metric| Convertible | Non-Convertible |
|---|---|
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | Silver Plus Gun |
| Gun Technology | Airless |
| Gun Type | Airless |
| Hose Inlet Diameter (in) | 1/8 |
| Includes | Silver Plus Gun, Suction Hose, Stand Mount |
| Maximum Flow Rate (GPM) | 0.40 |
| Maximum Hose Length (ft) | 25 |
| Maximum Sound Pressure Level (dB(A)) | 77.9 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 30:1 |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Airless |
| Standards Met | ATEX, CE |
| Type | Airless Sprayer |
| Weight (lb) | 25 |
| Wetted Material | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Polyethylene, Polyurethane, Nylon, Fluoroelastomer |
| Convertible | Non-Convertible |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | Silver Plus Gun |
| Gun Technology | Airless |
| Gun Type | Airless |
| Hose Inlet Diameter (cm) | 0.3175 |
| Hose Inlet Diameter (mm) | 3.175 |
| Includes | Silver Plus Gun, Suction Hose, Stand Mount |
| Maximum Flow Rate (L/min) | 1.5 |
| Maximum Hose Length (m) | 7.5 |
| Maximum Sound Pressure Level (dB(A)) | 77.9 |
| Maximum Tip Size (cm) | 0.0483 |
| Maximum Tip Size (mm) | 0.4826 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (kg/cm²) | 210.9 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 30:1 |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Airless |
| Standards Met | ATEX, CE |
| Type | Airless Sprayer |
| Weight (kg) | 11 |
| Wetted Material | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Polyethylene, Polyurethane, Nylon, Fluoroelastomer |
Product Manuals
CAD Drawings
24F152-3D-EN.zip
(6 MB)
Repair Parts
| Part No. | Description |
|---|---|
| 24G694 | Complete 3.5 in (88.9 mm) Merkur ES Air Motor Repair Kit |
| 24G701 | Complete Plated Steel Pump Replacement Kit for Merkur ES Packages |
| 24H665 | Alternate U-Cup Pump Packing Kit (UHMWPE) for Merkur ES Packages |
| 256426 | Package of 10 strainers for Kits 24F149 and 256420 |
| 24A537 | Air Valve Repair Kit, for Air Valve Models 24A351 and 24A353 |
| 17A493 | Hopper Kit, 2 liter (0.5 gal), attaches to wall or stand mount |
| 24A360 | Air Valve End Cap Kit, Standard, for systems with no DataTrak or with DataTrak with Cycle Count |
| 24A535 | Air Valve Seal Kit, for Air Valve Models 24A351 and 24A353 |
| 24F160 | Standard Push-on Strainer Kit |
| 17C166 | Bungee cord for attaching hopper lid |
| 24F161 | Airless to Air-Assisted Conversion Kit |
| 17B208 | Hopper O-Ring Kit |
