TexSpray DutyMax GH 300DI

TexSpray DutyMax GH 300DI Standard Series Gas Hydraulic Airless Sprayer

24W967

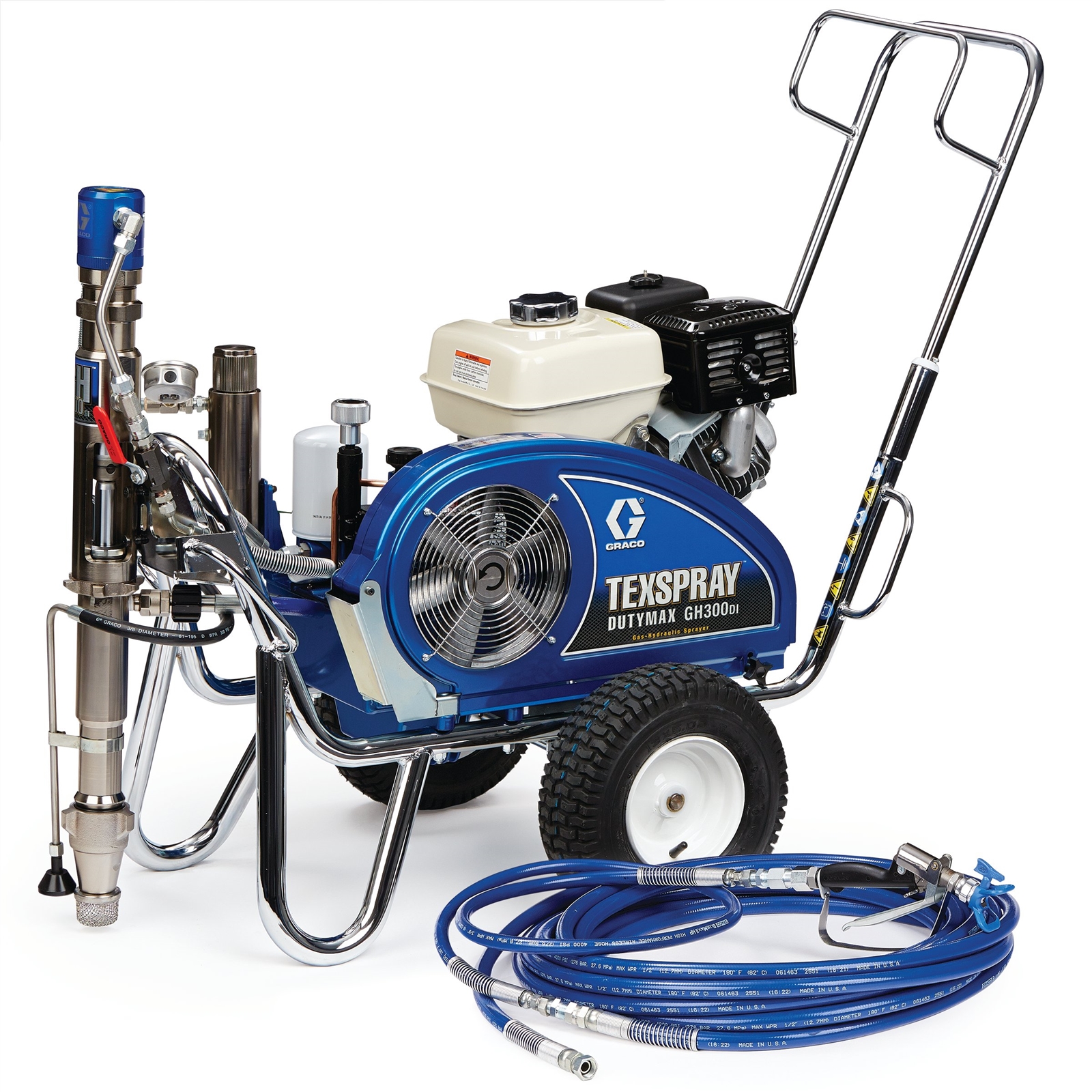

24W967_TexSpray_DutyMax_GH_300DI_Standard_190711_Main

TexSpray DutyMax GH 300DI

TexSpray DutyMax GH 300DI Standard Series Gas Hydraulic Airless Sprayer

24W967

When your job requires maximum productivity and versatility, turn to the TexSpray DutyMax 300DI sprayer to get the job done—fast! Equipped with more power and a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

Features

Product Brochure
When your job requires maximum productivity and versatility, turn to the TexSpray DutyMax 300DI sprayer to get the job done—fast! Equipped with more power and a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

Graco’s Standard Series of DutyMax gas hydraulic direct-immersion sprayers deliver everyday reliability and performance while easily handling the widest range of tip sizes, longer hose lengths more heavy duty materials such as plasters, elastomerics, fire retardants and liquid roofing solutions.

  • Endurance Pump
    • The Most Reliable Pump
    • Lasts 2X longer than the next brand
    • Better spraying performance and fast cleaning
    • Long Life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less Pack-Out, More Productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • High-Efficiency Hydraulic Motor
    • Finish Jobs Faster
    • Fast, responsive changeover
    • Less maintenance and longer life with fewer moving parts
    • 100% O-ring sealed fittings prevent leaks
  • High-Capacity Cooling System
    • Reduced Downtime
    • Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
    • Easier and more thorough fluid changes
    • Reservoir cooling fins deflect more heat
  • Honda® GX Engine
    • Reliable, Powerful & Easy-to-Start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Easy Out Pump Filter
    • Easy Maintenance & Less Clogging
    • Large filtering area for easier cleaning & fewer tip clogs ensure a quality finish
    • Won’t collapse or get stuck with inside out filtering process
  • Heavy-Duty Prime Valve
    • High-Pressure Dumping Capability
    • Maintenance-free design
  • Durable Cart Design
    • Rugged and Easy-to-Maneuver
    • Withstands the tough jobsite conditions while absorbing impacts and vibrations
    • Retractable handle doubles as coiled hose storage
24W967_TexSpray_DutyMax_GH_300DI_Standard_190711_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating
Convertible No
Engine Brand Honda
Engine Size (HP) 9
Engine Size (kW) 6.7
Features Endurance Pump, MaxFlo 2, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Includes Inline Heavy-Duty Texture Gun, RAC X LTX 643 Spray Tip, RAC X WideRAC 1239 Spray Tip, RAC X Guard, 1/2 in x 50 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in BlueMax II Airless Whip Hose, TSL 4 oz
Material Application Paints, Primers
Maximum Flow Rate (GPM) 3.0
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.057
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Model TexSpray DutyMax
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 35.5
Overall Length (in) 47.7
Overall Width (in) 26.5
Power Source Gas Hydraulic
Pump Mount Type QuikChange
Pump Rod Type Hard Chrome
Pump Sleeve Material Hardened SST
Pump Type Endurance
Recommended Annual Usage 100-200 gallons per week
Series GH 300DI
Standards Met CE Certified
Type Airless Sprayer
Weight (lb) 218
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, PTFE, Acetal, Chrome Plating, Leather, UHMWPE, Stainless Steel, Tungsten Carbide, Ceramics, Nylon, Aluminum
Compatible Material Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating
Convertible No
Engine Brand Honda
Engine Size (HP) 9
Engine Size (kW) 6.7
Features Endurance Pump, MaxFlo 2, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Includes Inline Heavy-Duty Texture Gun, RAC X LTX 643 Spray Tip, RAC X WideRAC 1239 Spray Tip, RAC X Guard, 1/2 in x 50 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in BlueMax II Airless Whip Hose, TSL 4 oz
Material Application Paints, Primers
Maximum Flow Rate (L/min) 11.3
Maximum Hose Length (m) 15
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.1448
Maximum Tip Size (mm) 1.4478
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Maximum Working Pressure (kg/cm²) 232
Model TexSpray DutyMax
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (cm) 90
Overall Height (mm) 900
Overall Length (cm) 121
Overall Length (mm) 1210
Overall Width (cm) 67
Overall Width (mm) 670
Power Rating (cc) 270
Power Source Gas Hydraulic
Pump Mount Type QuikChange
Pump Rod Type Hard Chrome
Pump Sleeve Material Hardened SST
Pump Type Endurance
Recommended Annual Usage 100-200 gallons per week
Series GH 300DI
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 99
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, PTFE, Acetal, Chrome Plating, Leather, UHMWPE, Stainless Steel, Tungsten Carbide, Ceramics, Nylon, Aluminum

What's Included

Part No. Description Qty Unit
245820 Inline Heavy-Duty Texture Airless Spray Gun, 4 Finger Trigger 1 ea
LTX643 RAC X SwitchTip, 643 1 ea
WR1239 RAC X WideRAC SwitchTip, 1239 1 ea
246215 RAC X HandTite Tip Guard 1 ea
278499 HOSE, CPLD, 1/2 IN X 50 FT 1 ea
