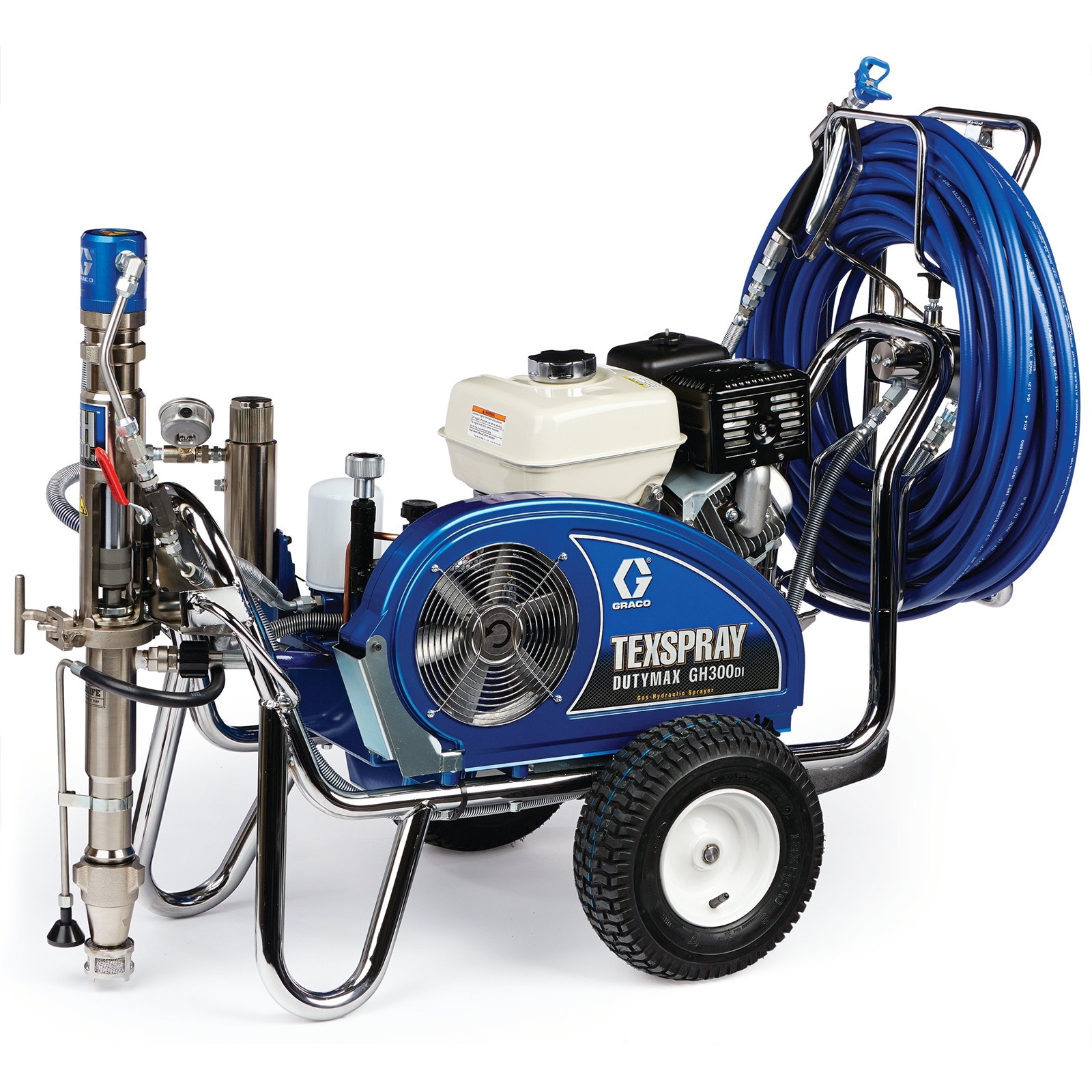

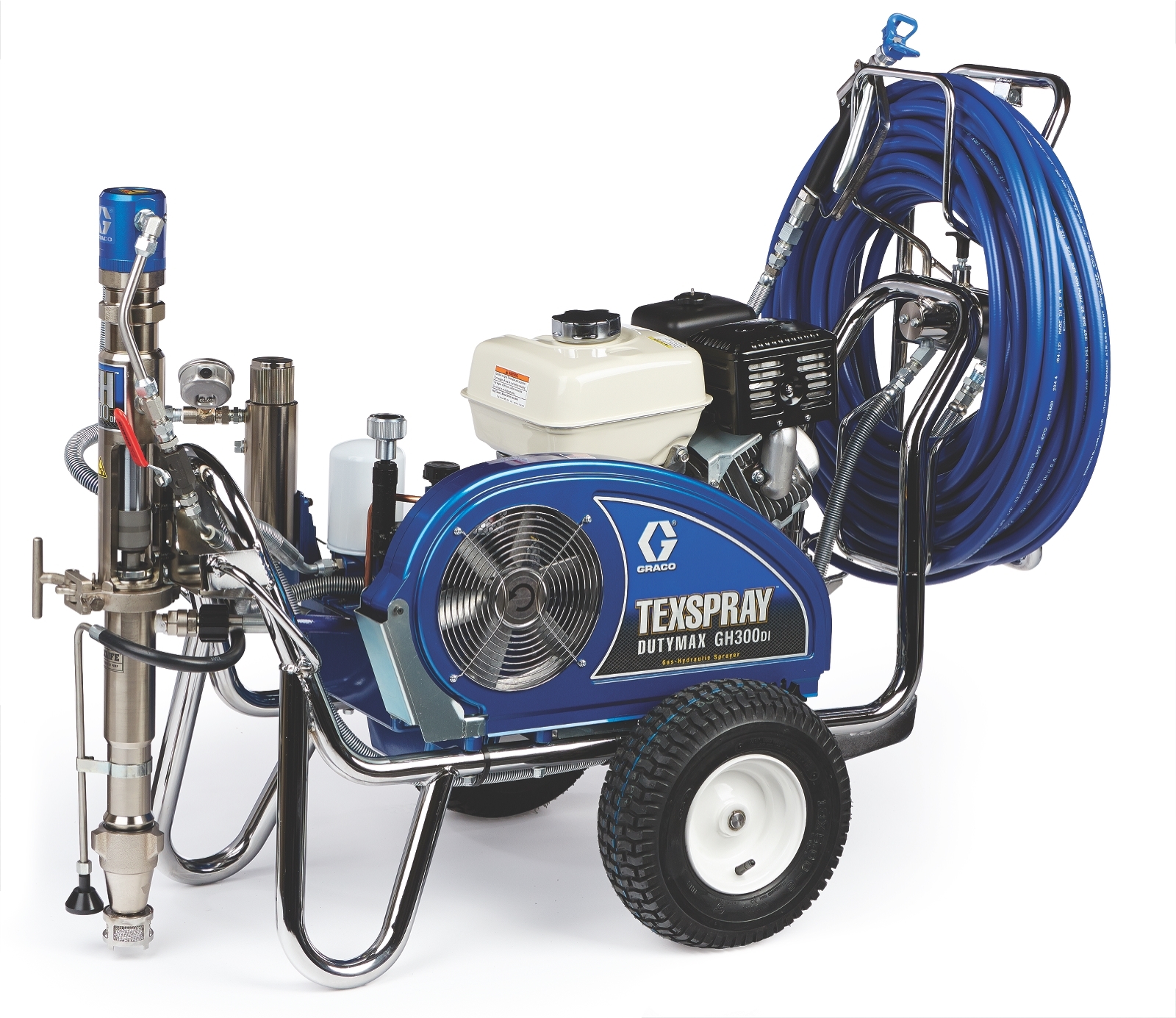

TexSpray DutyMax GH 300DI

TexSpray DutyMax GH 300DI ProContractor Series Gas Hydraulic Airless Sprayer

24W968

24W968_TexSpray_DutyMax_GH_300DI_ProContractor_190711_Main

TexSpray DutyMax GH 300DI

TexSpray DutyMax GH 300DI ProContractor Series Gas Hydraulic Airless Sprayer

24W968

When your job requires maximum productivity and versatility, turn to the TexSpray DutyMax 300DI sprayer to get the job done—fast! Equipped with more power and a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

Features

Product Brochure
When your job requires maximum productivity and versatility, turn to the TexSpray DutyMax 300DI sprayer to get the job done—fast! Equipped with more power and a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

With features that enable you to work more efficiently and finish jobs faster, DutyMax ProContractor Series gas hydraulic airless sprayers spray a wide range of materials – from latex and acrylics to more heavy duty materials like plasters, elastomerics, fire retardants and liquid roofing solutions.

  • Extreme-Duty Endurance MaxLife Pump
    • Lasts 6X longer between repacks
    • Better spraying performance and fast cleaning
    • Long Life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less Pack-Out, More Productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • High-Efficiency Hydraulic Motor
    • Finish Jobs Faster
    • Fast, responsive changeover
    • Less maintenance and longer life with fewer moving parts
    • 100% O-ring sealed fittings prevent leaks
  • High-Capacity Cooling System
    • Reduced Downtime
    • Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
    • Easier and more thorough fluid changes
    • Reservoir cooling fins deflect more heat
  • Honda® GX Engine
    • Reliable, Powerful & Easy-to-Start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • ProConnect 2 One-Part Pump Replacement System
    • Eliminate Costly Downtime
    • Swap your pump in less than 1 minute – with no tools, pins or parts to lose
  • QuikReel Hose Management System
    • Easy Hose Management
    • Deploy and rewind up to 300 feet of hose in seconds
    • No twisting, kinking, and coiling
  • Crushproof Inlet Strainer
    • Improved Filtration
    • Stands up to harsh impacts
  • Easy Out Pump Filter
    • Easy Maintenance & Less Clogging
    • Large filtering area for easier cleaning & fewer tip clogs ensure a quality finish
    • Won’t collapse or get stuck with inside out filtering process
  • Additional Features
    • Heavy-Duty Prime Valve
    • Durable Cart Design
24W968_TexSpray_DutyMax_GH_300DI_ProContractor_190711_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Coating, Drywall Mud, Elastomer, Enamel, Epoxies, Latex
Convertible No
Engine Brand Honda
Engine Size (HP) 9
Engine Size (kW) 6.7
Features Extreme-Duty MaxLife Pump, MaxFlo 2, High-Capacity Cooling System, Honda Engine, ProConnect 2, QuikReel, Crushproof Inlet Strainer, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Hose Reel Type QuikReel
Includes Inline Heavy-Duty Texture Gun, RAC X LTX 643 Spray Tip, RAC X WideRAC 1239 Spray Tip, RAC X Guard, 1/2 in x 100 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in BlueMax II Airless Whip Hose, TSL 4 oz
Material Application Paints, Primers
Maximum Flow Rate (GPM) 3.0
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.057
Maximum Tip Size 1 Gun (in) 0.057
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Model TexSpray DutyMax
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 39
Overall Length (in) 52
Overall Width (in) 26.5
Power Rating (HP) 9.0
Power Rating (W) 6711.3
Power Rating (kW) 6.71
Power Source Gas Hydraulic
Pressure Control Type Pressure Control Knob
Pump Mount Type ProConnect
Pump Rod Type Hard Chrome
Pump Sleeve Material MaxLife
Pump Type Endurance
Recommended Annual Usage 100-200 gallons per week
Series GH 300DI
Standards Met CE Certified
Type Airless Sprayer
Volume Per Cycle (cycles/gal) 80
Weight (lb) 199
Wetted Material Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Coating, Drywall Mud, Elastomer, Enamel, Epoxies, Latex
Convertible No
Engine Brand Honda
Engine Size (HP) 9
Engine Size (kW) 6.7
Features Extreme-Duty MaxLife Pump, MaxFlo 2, High-Capacity Cooling System, Honda Engine, ProConnect 2, QuikReel, Crushproof Inlet Strainer, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Hose Reel Type QuikReel
Includes Inline Heavy-Duty Texture Gun, RAC X LTX 643 Spray Tip, RAC X WideRAC 1239 Spray Tip, RAC X Guard, 1/2 in x 100 ft BlueMax II Airless Hose, 3/8 in x 11 ft 10 in BlueMax II Airless Whip Hose, TSL 4 oz
Material Application Paints, Primers
Maximum Flow Rate (L/min) 11.3
Maximum Hose Length (m) 15
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.1448
Maximum Tip Size (mm) 1.4478
Maximum Tip Size 1 Gun (cm) 0.1448
Maximum Tip Size 1 Gun (mm) 1.4478
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Maximum Working Pressure (kg/cm²) 232
Model TexSpray DutyMax
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (cm) 99
Overall Height (mm) 990
Overall Length (cm) 132
Overall Length (mm) 1320
Overall Width (cm) 67
Overall Width (mm) 670
Power Rating (HP) 9.0
Power Rating (W) 6711.3
Power Rating (cc) 270
Power Rating (kW) 6.71
Power Source Gas Hydraulic
Pressure Control Type Pressure Control Knob
Pump Mount Type ProConnect
Pump Rod Type Hard Chrome
Pump Sleeve Material MaxLife
Pump Type Endurance
Recommended Annual Usage 100-200 gallons per week
Series GH 300DI
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 90
Wetted Material Acetal, Aluminum, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

What's Included

Part No. Description Qty Unit
245820 Inline Heavy-Duty Texture Airless Spray Gun, 4 Finger Trigger 1 ea
LTX643 RAC X SwitchTip, 643 1 ea
WR1239 RAC X WideRAC SwitchTip, 1239 1 ea
246215 RAC X HandTite Tip Guard 1 ea
278499 HOSE, CPLD, 1/2 IN X 50 FT 2 ea
