TexSpray T-MAX 6912

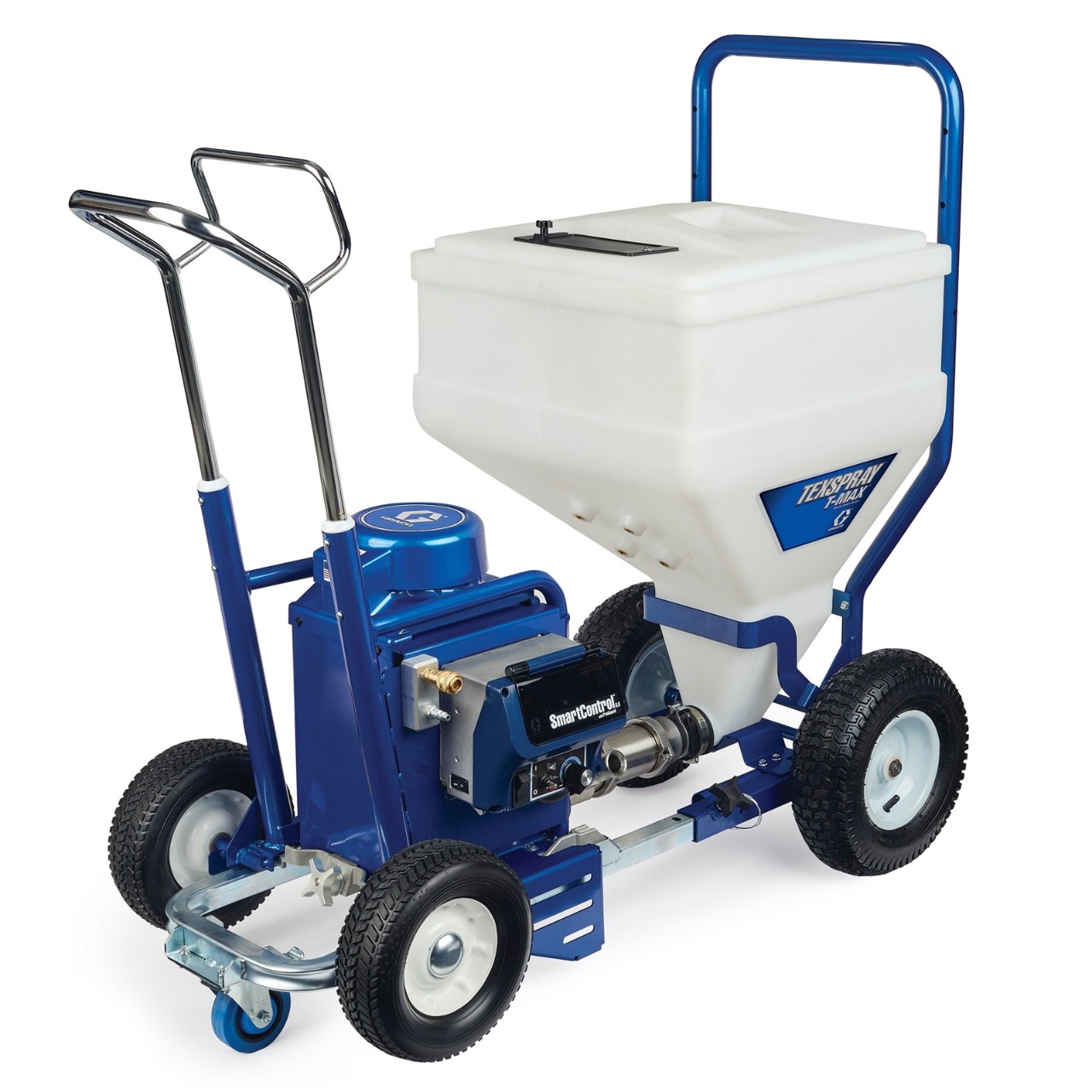

TexSpray T-MAX 6912 Electric Air-Assisted Texture Sprayer, 110V, UK
Part Number: 17X992
TexSpray T-MAX 6912
TexSpray T-MAX 6912 Electric Air-Assisted Texture Sprayer, 110V, UK
Part Number: 17X992
The Graco T-MAX 6912 provides the capability and performance to spray almost all interior and exterior texture applications – whether you're spraying smooth compounds for interior skim coats and decorative finishes or aggregate-based materials for exterior jobs. Superior versatility to spray nearly ...
More Info
Features
Product Brochure
The Graco T-MAX 6912 provides the capability and performance to spray almost all interior and exterior texture applications – whether you're spraying smooth compounds for interior skim coats and decorative finishes or aggregate-based materials for exterior jobs. Superior versatility to spray nearly all your texture applications & materials with even material flow and minimal pack-out. Airless spraying to easily apply skimcoats and decorative finishes. Air-Assisted spraying to spray heavy aggregates up to 2mm (separate air compressor required).
TEXSPRAY T-MAX 6912, the newest, easiest way to spray smooth and aggregate materials on exterior and interior texture jobs. From textured acrylics, synthetic stucco, EIFS, acoustics, joint compound and more. Easily apply spray plasters without a compressor or switch to air-assisted mode to spray decorative finishes and heavy aggregates up to 2 mm.
- Graco’s finest in modular designs Modularity from your doorstep to a multitude of simultaneous jobsites, up and down floors, all the way to the heart of the pump on the jobsite. Graco’s brand new T-MAX provides you with an unseen modular and versatile design without any need for tools
- SmartControl 3.0
- Delivers smooth, consistent material flow
- Provides Airless or Flow mode
- LED Display shows pressure, litres/gallons, and more
- Heavy-Duty Modular Frame
- Steel construction withstands jobsite abuse
- Easy, no-tools connect and disconnect
- Small, compact and balanced design for easy manoeuvring – even when full
- Locking front swivel caster wheel
- Oversized Hopper with Lid
- 6 Bags
- 90 Litres (25 Gallons) for less refilling
- Steep-sided design keeps material flowing
T-Max FreeFlo Lance Gun
- Ergonomic design for more comfort
- Oversized passages & live swivel
- “Stay-Open” design allows effortless spray with less fatigue
- Proven construction withstands jobsite abuse
- Industry-Proven Endurance Pump
- Lasts 2X longer than competing pumps
- 69 bar (1000 psi) and 12 lpm (3.2 gpm)
- Quick-Access design: access any part of the pump in seconds without tools, even with a full hopper of material
- Precision Advantage Drive
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Hoses & Applicators
- Flexible hose sets available in various lengths
- Choose between Inline Lance for airless application, or STX and Pole applicators for air-assisted decorative finishes
- 230V MaxPower DC Motor
- Use with standard 16/20 amp circuits
- No-maintenance, brushless design keeps debris out
- Heavy Duty Drivetrain
- Remote Control, to switch of /on pump, avoiding material clogs in gun and hose
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Textured acrylics, Synthetic stucco, EIFS, Acoustics, Joint Compound, Plaster, Decorative finish, Heavy aggregates |
|---|---|
| Convertible | Non-Convertible |
| Engine Size (HP) | 2.8 Brushless DC |
| Engine Size (kW) | 2 |
| Features | Endurance Pump, SmartControl 3.0, LED Display, Modular split frame, Flow and pressure selector |
| Fluid Hose Inside Diameter (in) | 1 |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Type | Camlock |
| Frame Configuration | Cart with integrated hopper |
| Frequency (Hz) | 60 |
| Hopper Capacity (gal) | 12.1440 |
| Hose Diameter (in) | 1 |
| Includes | All units shipped complete and ready to spray: with 6 Bags Hopper, 17Z128 Free Flo Inline-Gun, Set of 5 Nozzles & WideTex Tips, 289961 Material Hose 1 in. x 10 m + 289960 Material Hose 1 in. x 5 m, 289959 3/4 in. x 3 m Whip Hose, Build in Toolbox and scraper. |
| Inlet Paint Strainer | None |
| Maximum Flow Rate (GPM) | 3.17 |
| Maximum Fluid Working Pressure (psi) | 1000 |
| Maximum Sound Pressure Level (dB(A)) | 80.7 |
| Maximum Tip Size (in) | 0.071 |
| Maximum Tip Size 1 Gun (in) | 0.071 |
| Maximum Working Pressure (MPa) | 6.9 |
| Maximum Working Pressure (psi) | 1000 |
| Minimum Generator Power (W) | 7000 |
| Minimum generator power (kW) | 0 |
| Model | TexSpray |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Overall Height (in) | 46 |
| Overall Length (in) | 46 |
| Overall Width (in) | 23 |
| Phase | 1 |
| Power Rating (HP) | 2.8 |
| Power Rating (kW) | 2.0 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 3.0 |
| Pump Rod Type | Hard Chrome |
| Pump Sleeve Material | Hard Chrome |
| Pump Type | Displacement Pump |
| Series | T-MAX 6912 |
| Spray Gun Type | Free flow applicator |
| Spray Type | Airless, Air-Assisted Airless |
| Type | Air-assisted sprayer |
| Voltage (V) | 110 |
| Weight (lb) | 190 |
| Wetted Material | Buna-N, Aluminium, Brass, Polyethylene, Neoprene, Stainless Steel, Chrome-Plated Carbon Steel, Nickel-Plated Carbon Steel, Viton, Nickel-Plated Iron, Wool Felt, Tungsten Carbide, PTFE |
| Compatible Material | Textured acrylics, Synthetic stucco, EIFS, Acoustics, Joint Compound, Plaster, Decorative finish, Heavy aggregates |
| Convertible | Non-Convertible |
| Engine Size (kW) | 2 |
| Features | Endurance Pump, SmartControl 3.0, LED Display, Modular split frame, Flow and pressure selector |
| Fluid Hose Inside Diameter (in) | 1 |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4000 |
| Fluid Outlet Thread Type | Camlock |
| Frame Configuration | Cart with integrated hopper |
| Frequency (Hz) | 60 |
| Hopper Capacity (L) | 46 |
| Hose Diameter (in) | 1 |
| Includes | All units shipped complete and ready to spray: with 6 Bags Hopper, 17Z128 Free Flo Inline-Gun, Set of 5 Nozzles & WideTex Tips, 289961 Material Hose 1 in. x 10 m + 289960 Material Hose 1 in. x 5 m, 289959 3/4 in. x 3 m Whip Hose, Build in Toolbox and scraper. |
| Inlet Paint Strainer | None |
| Maximum Flow Rate (L/min) | 12 |
| Maximum Fluid Working Pressure (psi) | 1000 |
| Maximum Sound Pressure Level (dB(A)) | 80.7 |
| Maximum Tip Size (in) | 0.071 |
| Maximum Tip Size 1 Gun (in) | 0.071 |
| Maximum Working Pressure (MPa) | 6.9 |
| Maximum Working Pressure (bar) | 69 |
| Maximum Working Pressure (kPa) | 6900 |
| Maximum Working Pressure (kg/cm²) | 6.9 |
| Maximum Working Pressure (psi) | 1000 |
| Minimum Generator Power (W) | 7000 |
| Minimum generator power (kW) | 0 |
| Model | TexSpray |
| Motor Type | Brushless DC |
| Number of Guns | 1 |
| Overall Height (cm) | 117 |
| Overall Height (mm) | 1168.4000 |
| Overall Length (cm) | 117 |
| Overall Length (mm) | 1168.4 |
| Overall Width (cm) | 58 |
| Overall Width (mm) | 584.2000 |
| Phase | 1 |
| Power Rating (kW) | 2.0 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 3.0 |
| Pump Rod Type | Hard Chrome |
| Pump Sleeve Material | Hard Chrome |
| Pump Type | Displacement Pump |
| Series | T-MAX 6912 |
| Spray Gun Type | Free flow applicator |
| Spray Type | Airless, Air-Assisted Airless |
| Type | Air-assisted sprayer |
| Voltage (V) | 110 |
| Weight (kg) | 86 |
| Wetted Material | Buna-N, Aluminium, Brass, Polyethylene, Neoprene, Stainless Steel, Chrome-Plated Carbon Steel, Nickel-Plated Carbon Steel, Viton, Nickel-Plated Iron, Wool Felt, Tungsten Carbide, PTFE |
Product Manuals
3A6839B, Manual, Air Manifold Kit for T-Max 6912 and HTX 2030, Instructions, English
(1 MB)
(English Only)
