TexSpray DutyMax EH 230DI

TexSpray DutyMax EH230DI Standard Series Electric Hydraulic Airless Sprayer

24W941

TexSpray DutyMax EH 230DI

TexSpray DutyMax EH230DI Standard Series Electric Hydraulic Airless Sprayer

24W941

When your job requires maximum productivity and versatility, turn to the TexSpray DutyMax EH230 sprayer to get the job done quickly! Equipped with a long stroke and a direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure
When your job requires maximum productivity and versatility, turn to the TexSpray DutyMax EH230 sprayer to get the job done quickly! Equipped with a long stroke and a direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

Graco’s Standard Series of DutyMax Electric Hydraulic direct-immersion sprayers deliver everyday reliability and performance while easily handling the widest range of tip sizes, longer hose lengths and more heavy-duty materials such as plasters, elastomerics, fire retardants and liquid roofing solutions.

  • Endurance Chromex Pump
    • Industry-best, reliable pump performance with field-proven, long-life design
    • Handle the most demanding materials with long-life rod treatment
    • Long-life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning vibra-seal technology eliminates material build-up
    • Continuous spraying with true pack-out protection for more productivity
    • Optimised fluid passageways for the heaviest coatings
  • High-Efficiency Hydraulic Motor
    • Finish jobs faster
    • Fast, responsive changeover
    • O-ring sealed fittings prevent leaks
    • Less maintenance and longer life with fewer moving parts
  • High-Capacity Cooling System
    • Reduced downtime
    • Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
    • Easier and more thorough fluid changes
    • Reservoir cooling fins deflect more heat

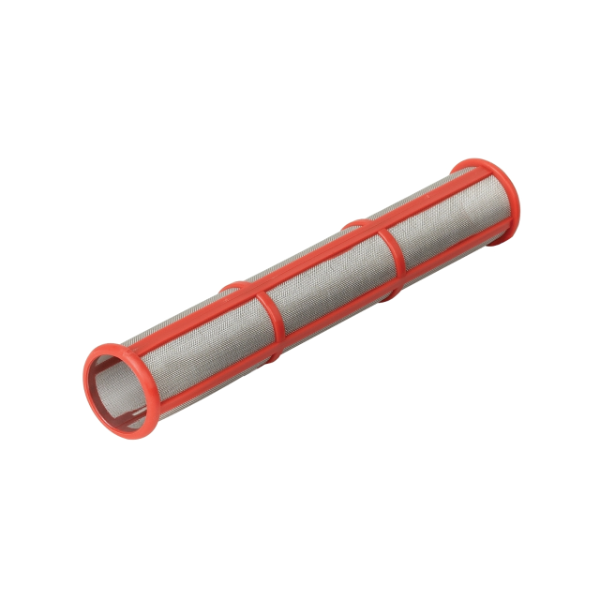

  • Easy Out Pump Filter
    • Easy pump maintenance and less clogging
    • Inside-out design means less mess with fewer tip clogs ensuring a quality finish
  • Heavy-Duty Prime Valve
    • High-pressure dumping capability
    • Maintenance-free design
  • Durable Cart Design
    • Rugged and easy-to-manoeuvre
    • Withstands tough jobsite conditions while absorbing impacts and vibrations
    • Retractable handle doubles as coiled hose storage

Specifications & Documents

Technical Specifications

Convert to Imperial
Compatible Material Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating
Control Type N/A
Convertible Yes
Engine Size (HP) 3.0
Engine Size (kW) 2.2
Fluid Inlet Size (in) 1
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Material Application Paints, Primers
Maximum Flow Rate (GPM) 1.56
Maximum Sound Pressure Level (dB(A)) 80
Maximum Tip Size (in) 0.039
Maximum Working Pressure (psi) 3300
Model TexSpray
Number of Guns 1
Overall Height (in) 35.5
Overall Length (in) 47.7
Overall Width (in) 26.5
Phase 1
Power Rating (HP) 3.0
Power Rating (kW) 2.2
Power Source Gas, Electric
Product Type Single Leg
Series DutyMax EH 230DI
Standards Met CE
Type Airless Sprayer
Volume per Cycle (cycles/gal) 80
Weight (lb) 197
Compatible Material Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating
Control Type N/A
Convertible Yes
Engine Size (HP) 3.0
Engine Size (kW) 2.2
Fluid Inlet Size (cm) 2.54
Fluid Inlet Size (mm) 25.4000
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.95
Material Application Paints, Primers
Maximum Flow Rate (L/min) 5.9
Maximum Sound Pressure Level (dB(A)) 80
Maximum Tip Size (cm) 0.0991
Maximum Tip Size (mm) 0.9906
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Model TexSpray
Number of Guns 1
Overall Height (cm) 90
Overall Height (mm) 901.7000
Overall Length (cm) 121
Overall Length (mm) 1211.58
Overall Width (cm) 67
Overall Width (mm) 673.1000
Phase 1
Power Rating (HP) 3.0
Power Rating (cc) 200
Power Rating (kW) 2.2
Power Source Gas, Electric
Product Type Single Leg
Series DutyMax EH 230DI
Standards Met CE
Type Airless Sprayer
Weight (kg) 89
