Benefits the RoadLazer™ Roadpak™ airport line marking unit brings

When line marking airport taxiways and runways you need a high-mileage, heavy-duty solution. Performance, durability and ease of use are key. Discover what Graco offers you on top of these essentials with the RoadLazer RoadPak System.

Taxiways and runways need long stretches of single or double straight or curved lines on edges, centred, with or without reflective markers and in different colours. On top of that, you sometimes need to spray specific patterns to indicate thresholds, touchdown zones and similar areas. You need robust line marking units to carry out the work, and that’s where the RoadLazer RoadPak system comes in.

A modular truck-mounted line marking system that fits your needs

When you say RoadPak System, you’re talking about a complete modular setup to suit your specific airport line marking situation. Based on a RoadPak Module with one or two pumps, the RoadPak System is offered in 12 options to begin with, and can be customised further according to your needs.

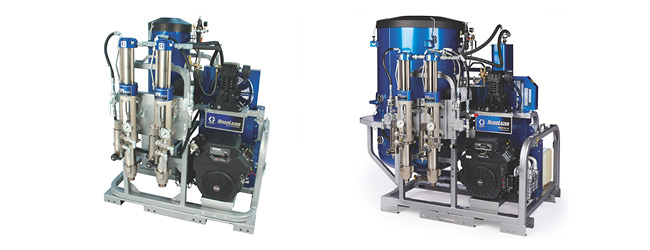

A step up from the RoadPak is the RoadPak HD System, which offers double output capacity and the ability to stripe with up to five paint and five bead guns. This high-productivity striping machine is delivered in four options and can be tailored to fulfil your specific striping needs

Powerful features

RoadPak and RoadPak HD exude robustness and high performance. But what does this mean for you?

• Heavy-duty hydraulic system
  The heavy-duty hydraulic system with no-stall design ensures the high productivity you need.

• Displacement pump system for outstanding results
  The prime valve allows you to recirculate paint, keeping it mixed and ready to go.

• A robust modular frame
  RoadPak has a compact frame made of heavy-duty steel that’s built to last. Complete it with all the accessories you need to optimise your line marking experience.

• Heavy-duty compressor
  With 6.9 bar at 13.1 cfm, you can be sure of getting the best possible starts and stops for your paint lines. It also comes with an accumulation tank for paint and bead guns.

• A strong, reliable Kohler engine
  With a 19 hp Kohler engine for the RoadPak and a 26.5 hp Kohler engine for the RoadPak HD, you get the power you need for your most intense and long-lasting line marking needs.

• A pump system that fits your needs
  Coming as a one- or two-pump system, RoadPak allows for single or dual colour option. RoadPak HD comes with two pumps as standard and guarantees a double output of up to 37.8 lpm. Further pumps can be added for applying extra colours.

Interesting options and accessories

The RoadPak and RoadPak HD system can be completed with some interesting options and accessories to make airport line marking even easier and more comfortable.

• Camera system for single operation
  Optimised for line marking, the RoadView HD camera System allows single users to do the job without the need for an operator on the back of the vehicle.

• Advanced controller with joystick control
  The versatile controller offers an operator simple-to-use controls that make the line marking job easier. It has built-in airport patterns for quick recall, as well as preview options that show you the pattern before you start marking. The joystick control increases the level of accuracy.

• Easy-to-install mount systems
  You can install your RoadPak on almost any vehicle using one of the available mounting frames. They allow you to attach the gun arm to your vehicle for easy left- or right-side spraying.

• Ergonomical rear seat with steerable carrier
  A comfortable rear seat, with safety belt included, can be mounted on the back of the vehicle and completed with a steerable carriage controller, gun arm actuator and mounting brackets.

A solution worth considering when you need high-volume airport line marking

Line marking units come in different shapes and sizes. Most are quite versatile, but the RoadLazer RoadPak system is a category of its own, due to its size, capacity and the huge distance it can cover in one go. On top of this undisputed power and robustness, it has the advantage of being modular and customisable to fit any airport’s specific needs. Throw in all the extra accessories you can add to make this an easy-to-handle, comfortable line marking unit, and you know you’ve made the right choice.
