LineLazer 130HS

LineLazer 130HS Standard Series Gas Hydraulic Airless Line Striper, 2 Manual Guns

Part Number: 17H448

product image product image

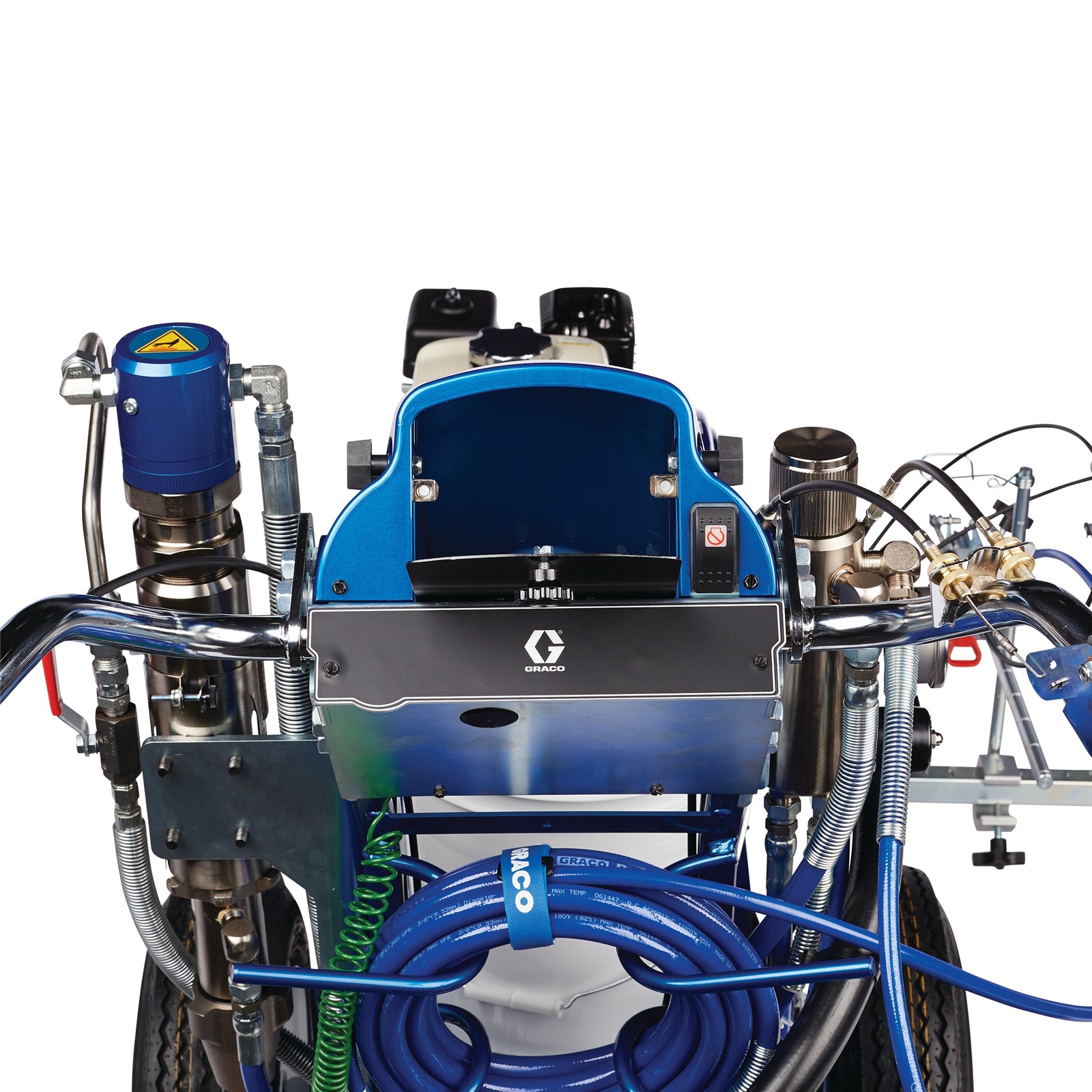

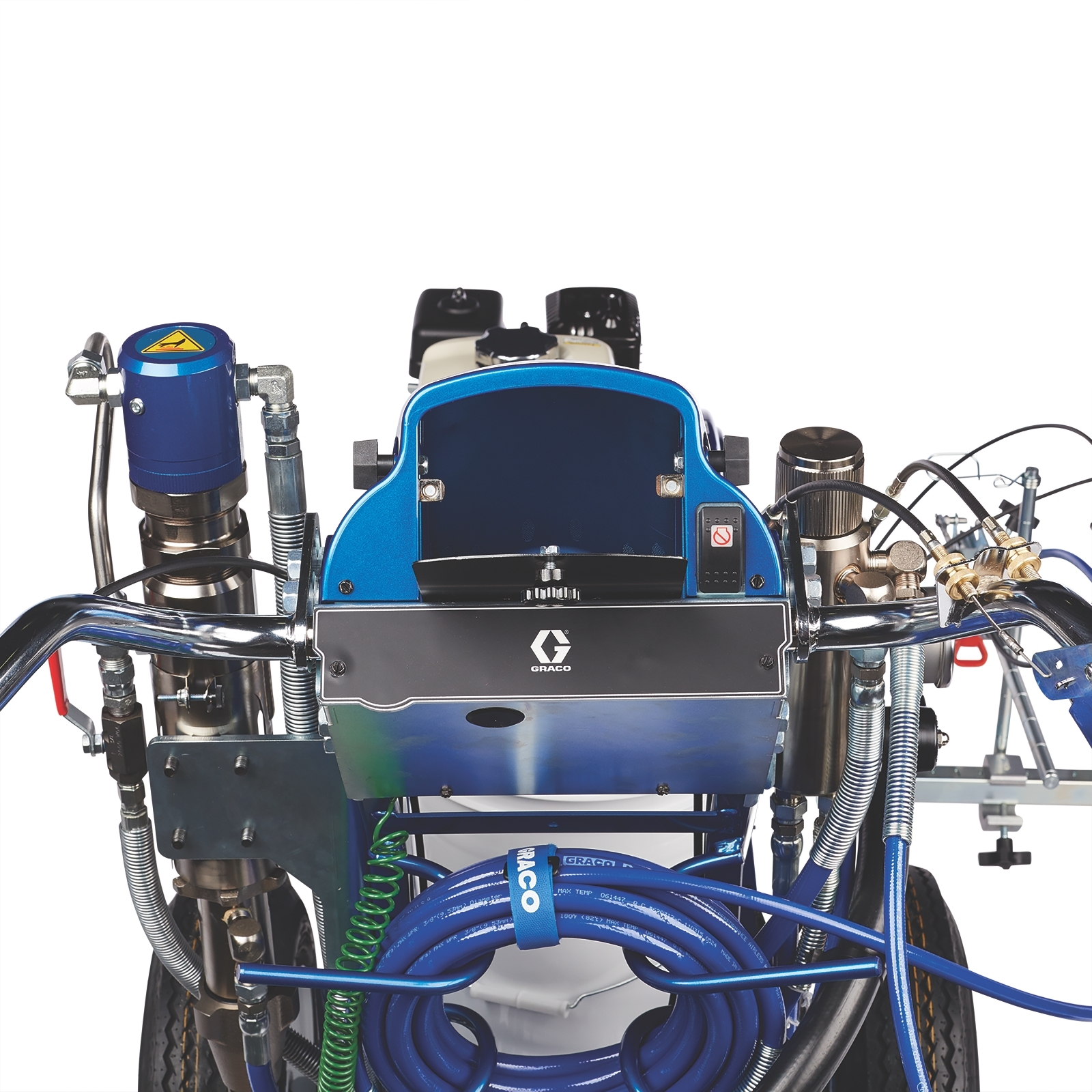

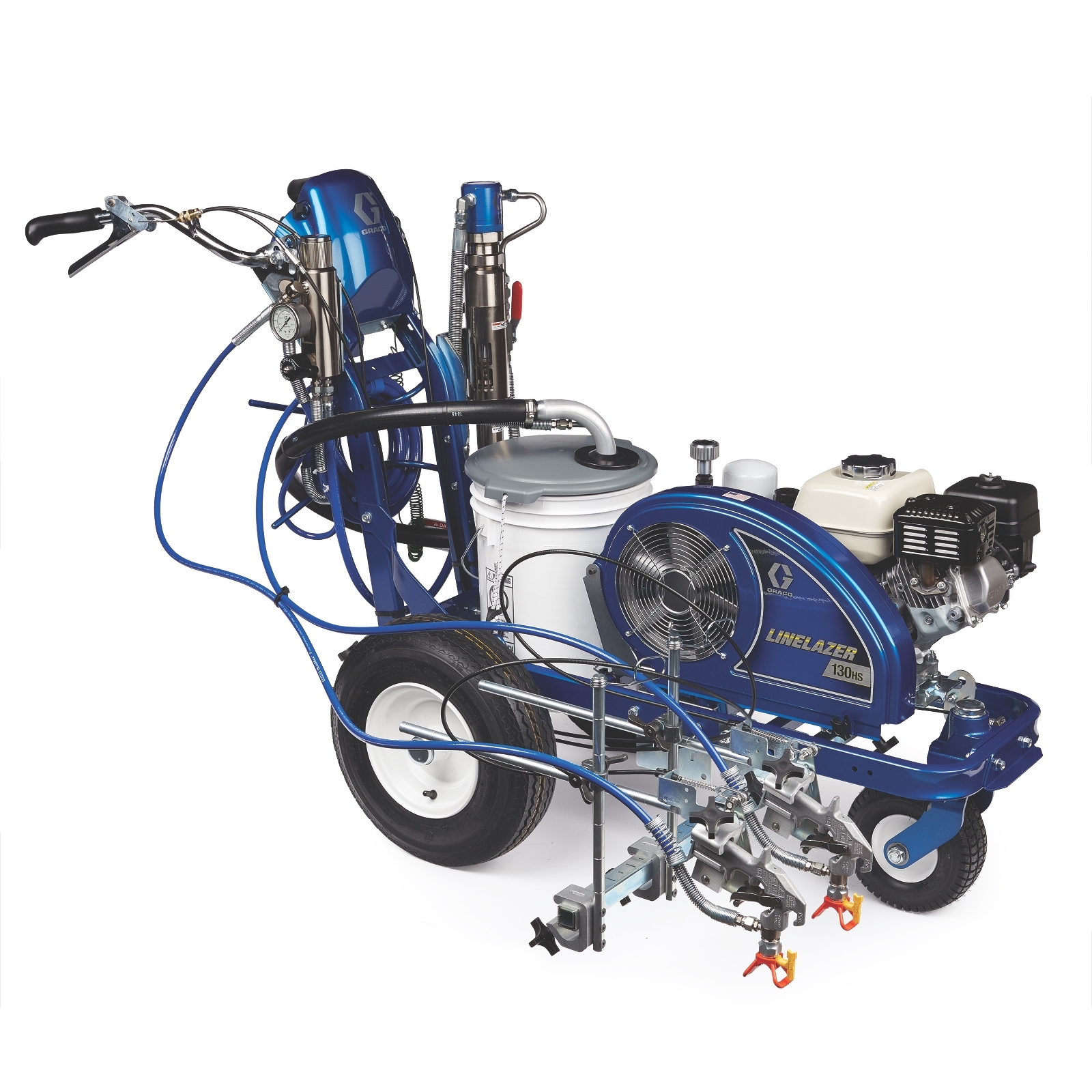

LineLazer 130HS

LineLazer 130HS Standard Series Gas Hydraulic Airless Line Striper, 2 Manual Guns

Part Number: 17H448

The LineLazer 130HS is the preferred hydraulic airless striping unit that consistently delivers everyday striping performance with proven power, day in and day out.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The LineLazer 130HS is the preferred hydraulic airless striping unit that consistently delivers everyday striping performance with proven power, day in and day out.
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • QuikSelect Gun Selector
    • Simple Gun Control
    • Independently control of two guns with one lever — solid/skip
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • High-Efficiency Hydraulic Motor
    • Uninterrupted Performance
    • No-Stall design
  • High-Capacity Cooling System
    • Reduced Downtime
    • Innovative design allows the pump to run cooler and more efficiently
    • Easier and more thorough fluid changes
    • Reservoir cooling fins deflect more heat
    • No special hydraulic fluid needed
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
  • Storage Compartment
    • New compartment for tips, guards and miscellaneous items

Specifications & Documents

Technical Specifications

Convert to Metric
Attachments None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX120
Fuel Tank Capacity (gal) 0.66
Gun Activation 2 Manual
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (GPM) 1.3
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.029
Maximum Working Pressure (psi) 3300
Model LineLazer
Number of Colors One Color
Number of Guns 2
Number of Hoppers 1
Number of Pumps 1
Overall Height (in) 44.5
Overall Length (in) 68.25
Overall Width (in) 34.25
Power Rating (HP) 4
Power Rating (kW) 2.98
Power Source Gas Hydraulic
Product Series Standard
Pump Type Endurance
Recommended Annual Usage Up to 500 gallons per week
Series 130HS
Type Walk-Behind Line Striper
Weight (lb) 263
Attachments None
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX120
Fuel Tank Capacity (L) 2.5
Gun Activation 2 Manual
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (L/min) 4.9
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.0737
Maximum Tip Size (in) 0.029
Maximum Tip Size (mm) 0.7366
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Maximum Working Pressure (psi) 3300
Model LineLazer
Number of Colors One Color
Number of Guns 2
Number of Hoppers 1
Number of Pumps 1
Overall Height (cm) 113.03
Overall Height (mm) 1130.3
Overall Length (cm) 173.36
Overall Length (mm) 1733.55
Overall Width (cm) 87.0
Overall Width (mm) 870
Power Rating (kW) 2.98
Power Source Gas Hydraulic
Product Series Standard
Pump Type Endurance
Recommended Annual Usage Up to 500 gallons per week
Series 130HS
Type Walk-Behind Line Striper
Weight (kg) 119

What's Included

Part No. Description Qty Unit
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 2 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
124884 HOSE, CPLD, 3/8" X 22' 1 ea
245226 HOSE, CPLD, 3/8" X 3' 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea

Repair Parts

Part No. Description
245103 Q KIT REPAIR, DRAIN VALVE
24B748 Endurance Chromex Piston Pump
288758 KIT, REPAIR,HYDR MOTOR,GH130
