LineLazer V 3900

LineLazer V 3900 Standard Series Gas Airless Line Striper, 2 Manual Guns

17H450

17H450_LineLazer_V_3900_Standard_2Gun_190604_Main

LineLazer V 3900

LineLazer V 3900 Standard Series Gas Airless Line Striper, 2 Manual Guns

17H450

When it’s time for 1 or 2-gun airless line striping performance, the LineLazer V 3900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
When it’s time for 1 or 2-gun airless line striping performance, the LineLazer V 3900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.

The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.

  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • Honda GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • QuikSelect Gun Selector
    • Simple Gun Control
    • Independently control of two guns with one lever — solid/skip
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
17H450_LineLazer_V_3900_Standard_2Gun_190604_Main

Specifications

Technical Specifications

Convert to Metric
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX120
Features Dual Handle Bar System, Front Wheel Align System, Gun Adjustment System, SmartControl
Fuel Tank Capacity (gal) 0.66
Gun Activation Manual
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (GPM) 1.25
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (in) 0.025
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Overall Height (in) 44.5
Overall Length (in) 68.75
Overall Width (in) 34.25
Power Rating (HP) 4
Power Rating (W) 2980
Power Rating (kW) 2.98
Power Source Gas
Pump Type Endurance
Recommended Annual Usage Up to 500 gallons per week
Series 3900
Standards Met CE
Type Walk-Behind Line Striper
Weight (lb) 230
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX120
Features Dual Handle Bar System, Front Wheel Align System, Gun Adjustment System, SmartControl
Fuel Tank Capacity (L) 2.5
Gun Activation Manual
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (L/min) 4.73
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (cm) 0.0635
Maximum Tip Size (mm) 0.635
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Overall Height (cm) 113.03
Overall Height (mm) 1130.3
Overall Length (cm) 174.63
Overall Length (mm) 1746.3
Overall Width (cm) 86.99
Overall Width (mm) 869.9
Power Rating (HP) 4
Power Rating (W) 2980
Power Rating (kW) 2.98
Power Source Gas
Pump Type Endurance
Recommended Annual Usage Up to 500 gallons per week
Series 3900
Standards Met CE
Type Walk-Behind Line Striper
Weight (kg) 104.3

What's Included

Part No. Description Qty Unit
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 2 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
245226 HOSE, CPLD, 3/8" X 3' 1 ea

Recommended Accessories

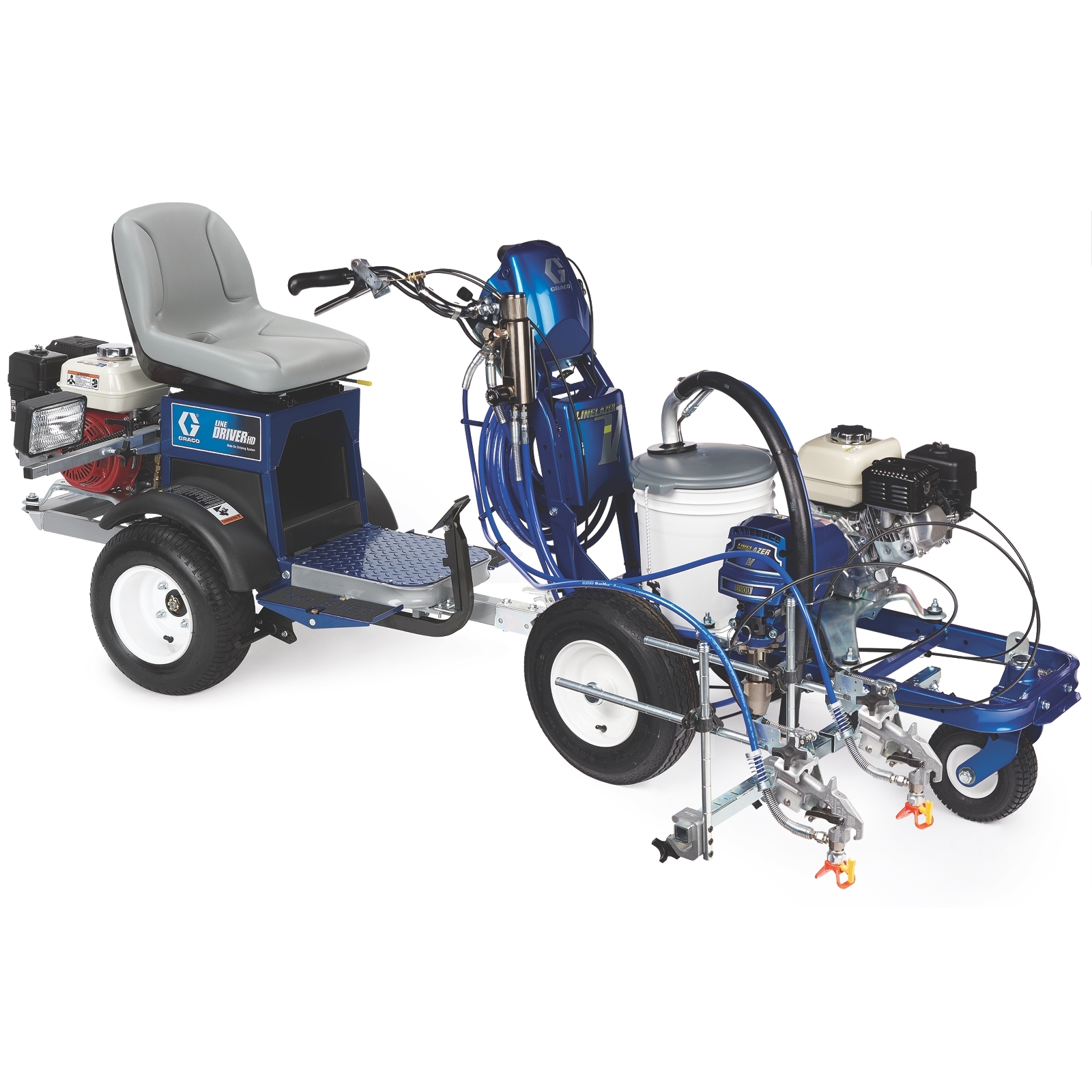

262005_LineDriverHD_190404_Main
