Triton 308

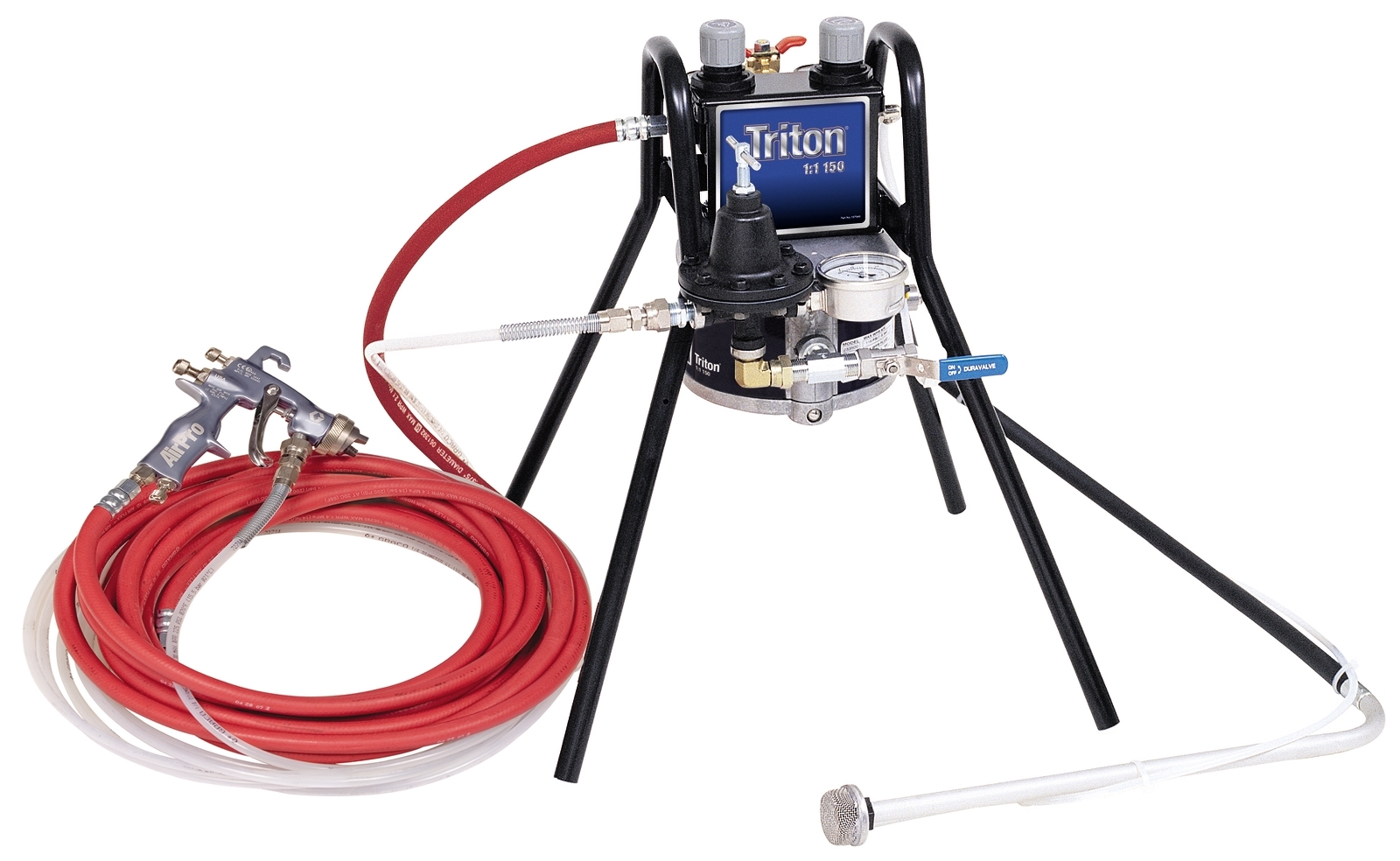

Triton Alum Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055 in (1.4 mm) Nozzle for Metal Applications

233475

Triton 308

Triton Alum Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055 in (1.4 mm) Nozzle for Metal Applications

233475

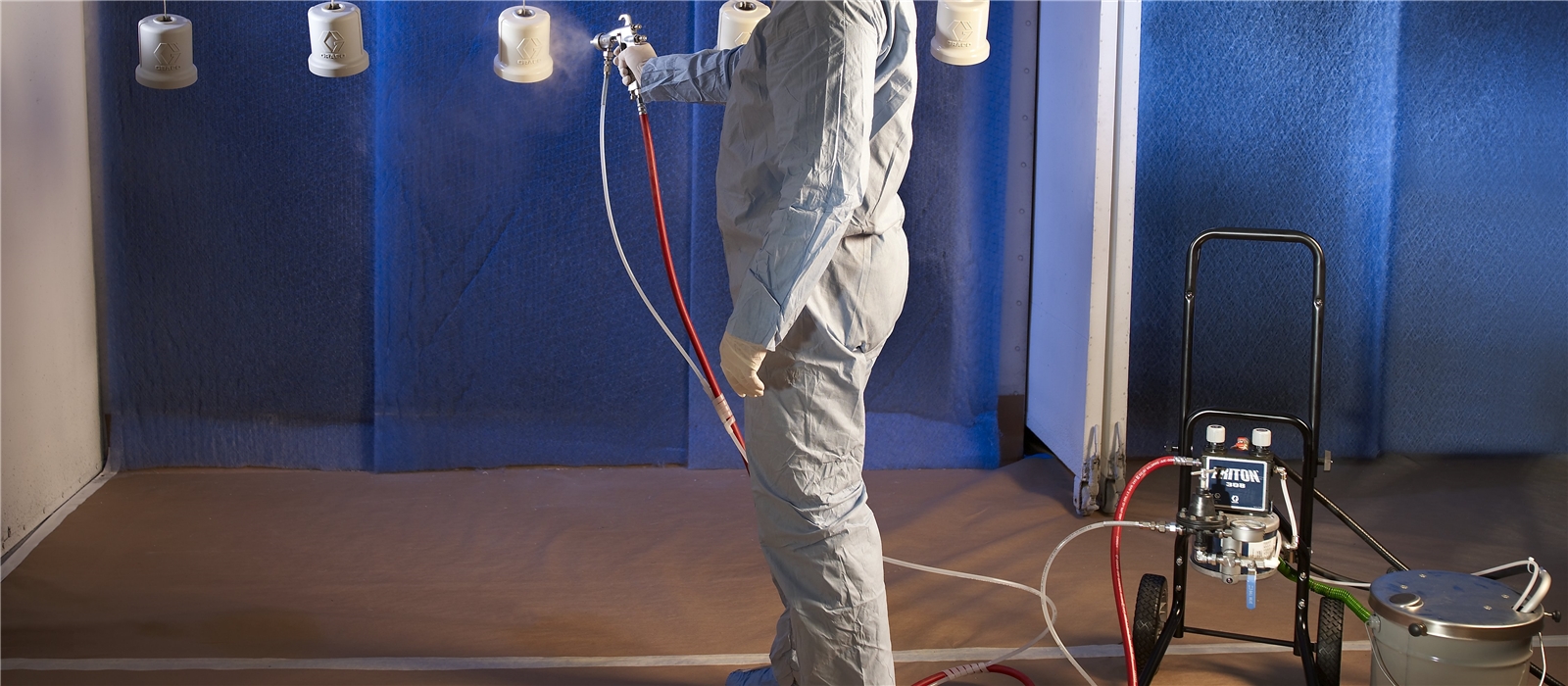

Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.

  • Superior finish quality for conventional, HVLP and compliant or electrostatic applications
  • Supplies up to 35% extra air flow to gun for superior atomization
  • Saves material and time during flushing, priming and color changes
  • Delivers a consistent spray pattern and uniform film thickness
  • Quick color changes and fast material refills save time and money
  • Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
  • Quick color changes and fast material refills save time and money
  • Rugged, aluminum construction pump handles a wide variety of fluids

Specifications

Technical Specifications

Convert to Metric
Application Metal
Compatible Material CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers
Feed Type Suction Hose
Fluid Inlet Size (in) 3/4
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPT
Gun Included 1
Gun Model AirPro
Gun Technology Conventional
Gun Type Air Spray
Includes 25 ft Air Hose, 25 ft Fluid Hose, Applicator
Maximum Air Inlet Pressure (psi) 100
Maximum Flow Rate (GPM) 8.5
Maximum Working Pressure (psi) 100
Mount Location Stand Mount
Mount Type Stand Mount
Power Source Air
Pressure Type Low Pressure
Product Type Spray Package
Pump Ratio 1:1
Pump Type Pneumatic Diaphragm Pump
Series 308
Spray Type Air-Powered
Sprayer Type Air Spray
Technology Type Conventional
Type Air-Powered Sprayer
Weight (lb) 19.84
Application Metal
Compatible Material CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers
Feed Type Suction Hose
Fluid Inlet Size (cm) 1.905
Fluid Inlet Size (mm) 19.05
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPT
Gun Included 1
Gun Model AirPro
Gun Technology Conventional
Gun Type Air Spray
Includes 25 ft Air Hose, 25 ft Fluid Hose, Applicator
Maximum Air Inlet Pressure (bar) 7
Maximum Air Inlet Pressure (kPa) 700
Maximum Flow Rate (L/min) 32.0
Maximum Working Pressure (bar) 7
Maximum Working Pressure (kPa) 700
Maximum Working Pressure (kg/cm²) 7.03
Mount Location Stand Mount
Mount Type Stand Mount
Power Source Air
Pressure Type Low Pressure
Product Type Spray Package
Pump Ratio 1:1
Pump Type Pneumatic Diaphragm Pump
Series 308
Spray Type Air-Powered
Sprayer Type Air Spray
Technology Type Conventional
Type Air-Powered Sprayer
Weight (kg) 9

Repair Parts

Part No. Description
245123 Miscellaneous Triton Parts Repair Kit
233500 Triton Air-Operated Diaphragm Pump, Bare, Aluminum, NPT
233501 Triton Air-Operated Diaphragm Pump, Bare, SST, NPT
245065 PTFE Diaphragm Repair Kit for Triton 308
245066 Triton 3D 150 Air Valve Repair Kit
24A155 Shaft and Bearing Repair Kit- for Triton 308 Diaphragm Pumps
245067 Triton 3D 150 Acetal Balls and Stainless Seats Kit
245081 SST Pail Agitator Kit for Triton Packages
245068 Shaft Repair Kit for Triton Pumps
238909 Ground wire and clamp
