Merkur ES

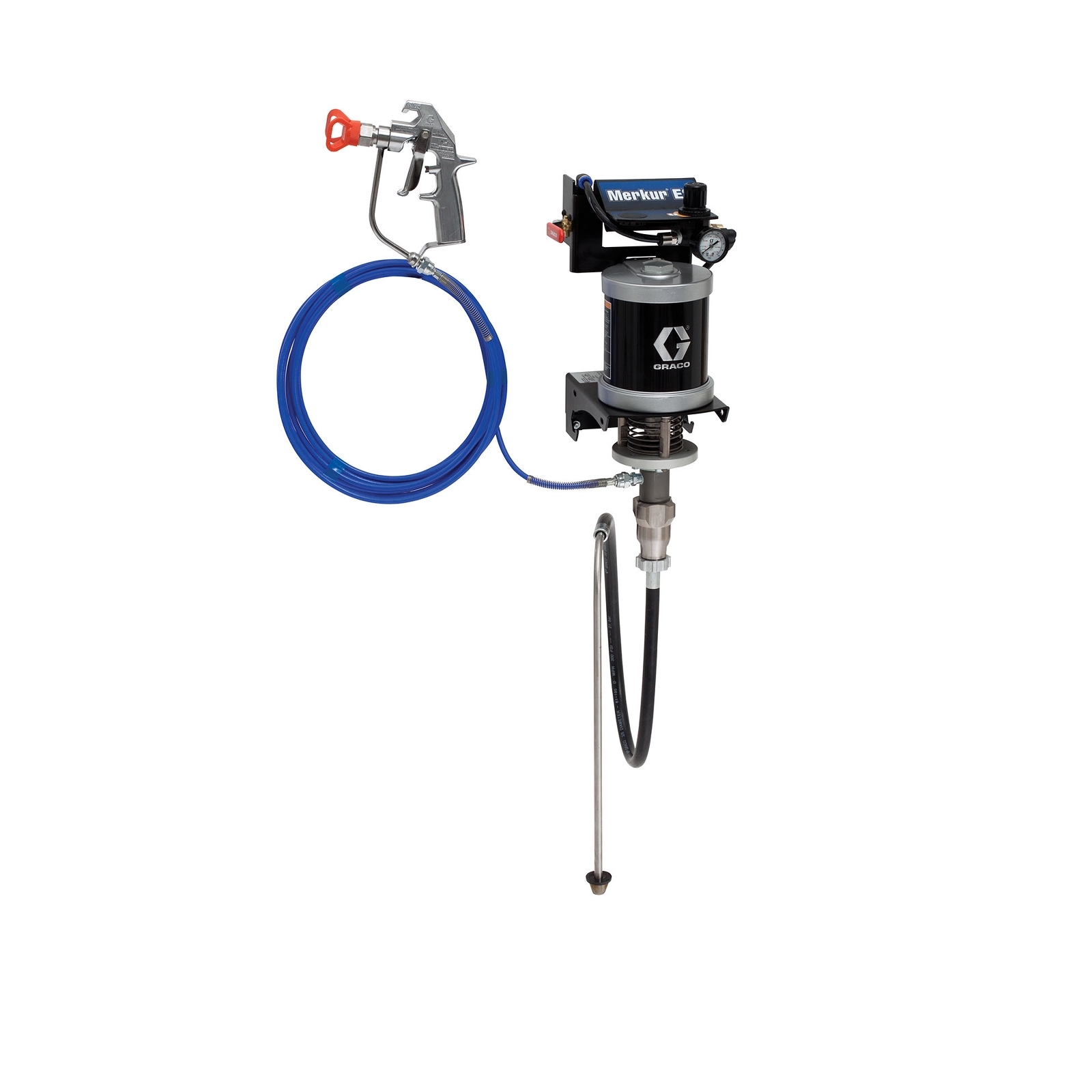

30:1 Merkur ES Airless Package, 0.4 gpm (1.5 lpm) fluid flow, wall mount, with Silver Plus gun, suction hose, and plated steel

24F154

19354 v2

Merkur ES

30:1 Merkur ES Airless Package, 0.4 gpm (1.5 lpm) fluid flow, wall mount, with Silver Plus gun, suction hose, and plated steel

24F154

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

  • Quick flush system requires less than 1 minute to flush
  • 45% less material to fill the system than the leading competitors
  • Delivers a superior, consistent spray finish
  • Low profile spray package makes it easy to transport
  • Easily set and monitor air control, plus an integrated carrying handle for transport
  • Air motor provides consistent finishes with smooth, rapid changeover
  • Suction hose and strainer leaves less material in the supply container
  • Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage

Specifications

Technical Specifications

Convert to Metric
Convertible Non-Convertible
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Gun Included 1
Gun Model Silver Plus Gun
Gun Type Airless
Hose Inlet Diameter (in) 1/8
Includes Silver Plus Gun, Suction Hose, Wall Mount
Maximum Flow Rate (GPM) 0.40
Maximum Hose Length (ft) 25
Maximum Tip Size (in) 0.019
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (psi) 3000
Model Merkur
Motor Type Pneumatic
Mount Type Wall Mount
Number of Guns 1
Power Source Air
Pressure Type High Pressure
Product Type Spray Package
Pump Ratio 30:1
Series ES
Spray Type Airless
Type Airless Sprayer
Weight (lb) 20
Wetted Material Stainless Steel, Carbon Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE
Convertible Non-Convertible
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Gun Included 1
Gun Model Silver Plus Gun
Gun Type Airless
Hose Inlet Diameter (cm) 0.3175
Hose Inlet Diameter (mm) 3
Includes Silver Plus Gun, Suction Hose, Wall Mount
Maximum Flow Rate (L/min) 1.5
Maximum Hose Length (m) 7.5
Maximum Tip Size (cm) 0.0483
Maximum Tip Size (mm) 0.4826
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Model Merkur
Motor Type Pneumatic
Mount Type Wall Mount
Number of Guns 1
Power Source Air
Pressure Type High Pressure
Product Type Spray Package
Pump Ratio 30:1
Series ES
Spray Type Airless
Type Airless Sprayer
Weight (kg) 9
Wetted Material Stainless Steel, Carbon Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE
