Merkur ES

15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with G15 gun, hopper, and stainless steel

24W283

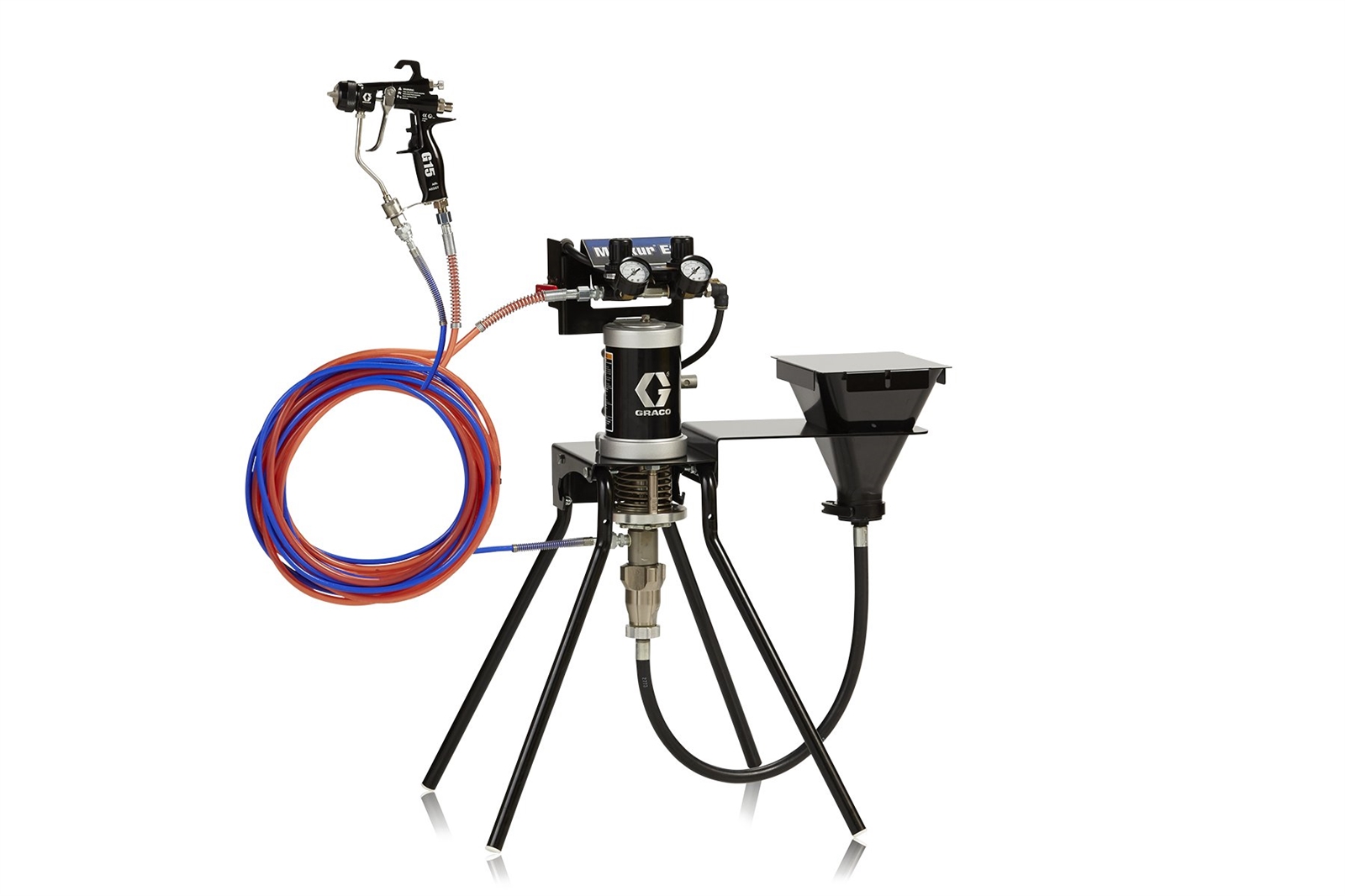

MerkurES_15to1stand_hopper

Merkur ES

15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with G15 gun, hopper, and stainless steel

24W283

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

  • Quick flush system requires less than 1 minute to flush
  • 45% less material to fill the system than the leading competitors
  • Delivers a superior, consistent spray finish
  • Low profile spray package makes it easy to transport
  • Easily set and monitor air control, plus an integrated carrying handle for transport
  • Air motor provides consistent finishes with smooth, rapid changeover
  • Suction hose and strainer leaves less material in the supply container
  • Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage

Specifications

Technical Specifications

Convert to Metric
Convertible Non-Convertible
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Gun Included 1
Gun Model G15
Gun Type Air-Assisted
Hose Inlet Diameter (in) 0.125
Includes G15 Gun, Hopper, Stand Mount
Maximum Flow Rate (GPM) 0.4
Maximum Hose Length (ft) 25
Maximum Sound Pressure Level (dB(A)) 76.5
Maximum Tip Size (in) 0.019
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (psi) 1500
Model Merkur
Motor Type Pneumatic
Mount Type Stand Mount
Number of Guns 1
Power Source Air
Pressure Type High Pressure
Product Type Spray Package
Pump Ratio 15:1
Pump Sleeve Material Stainless Steel
Series ES
Spray Type Air-Assisted
Standards Met ATEX, CE
Type Air-Assisted Airless Sprayer
Weight (lb) 32
Wetted Material Stainless Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene
Convertible Non-Convertible
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Gun Included 1
Gun Model G15
Gun Type Air-Assisted
Hose Inlet Diameter (cm) 0.3175
Hose Inlet Diameter (mm) 3
Includes G15 Gun, Hopper, Stand Mount
Maximum Hose Length (m) 7.6
Maximum Sound Pressure Level (dB(A)) 76.5
Maximum Tip Size (cm) 0.0483
Maximum Tip Size (mm) 0.4826
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (bar) 103
Maximum Working Pressure (kPa) 10300
Model Merkur
Motor Type Pneumatic
Mount Type Stand Mount
Number of Guns 1
Power Source Air
Pressure Type High Pressure
Product Type Spray Package
Pump Ratio 15:1
Pump Sleeve Material Stainless Steel
Series ES
Spray Type Air-Assisted
Standards Met ATEX, CE
Type Air-Assisted Airless Sprayer
Weight (kg) 14.5
Wetted Material Stainless Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene

Recommended Accessories

15023

G15 Air-Assist Carbide Gun for low to medium viscosity materials

View Details
