Merkur ES

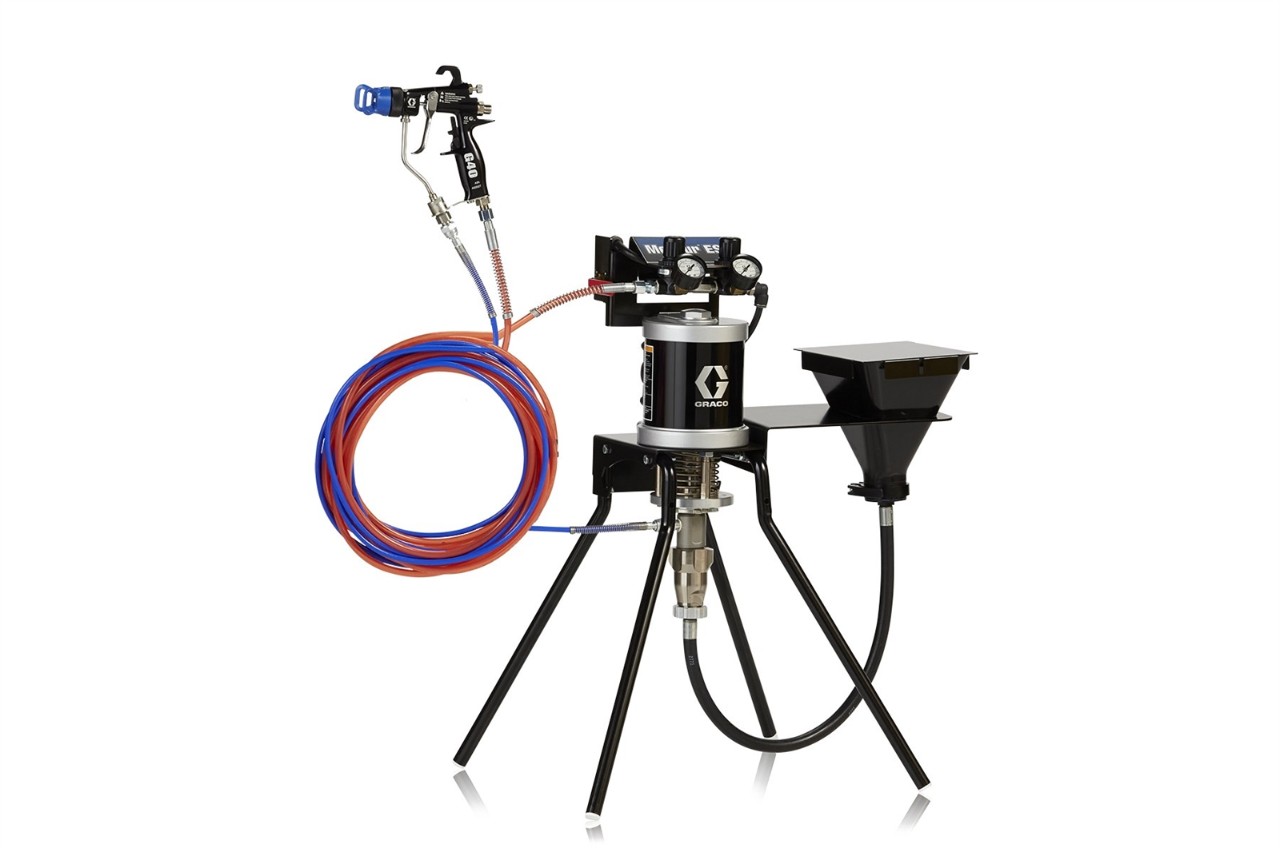

30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with G40 gun, hopper, and plated steel
24W285
Merkur ES
30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with G40 gun, hopper, and plated steel
24W285
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
- Quick flush system requires less than 1 minute to flush
- 45% less material to fill the system than the leading competitors
- Delivers a superior, consistent spray finish
- Low profile spray package makes it easy to transport
- Easily set and monitor air control, plus an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leaves less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
Specifications & Documents
Technical Specifications
Convert to Metric| Convertible | Non-Convertible |
|---|---|
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | G40 |
| Gun Technology | Air-Assisted |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (in) | 0.125 |
| Includes | G40 Gun, Hopper, Stand Mount |
| Maximum Flow Rate (GPM) | 0.4 |
| Maximum Hose Length (ft) | 25 |
| Maximum Sound Pressure Level (dB(A)) | 77.9 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 30:1 |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Air-Assisted |
| Standards Met | ATEX, CE |
| Type | Air-Assisted Airless Sprayer |
| Weight (lb) | 35 |
| Wetted Material | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
| Convertible | Non-Convertible |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | G40 |
| Gun Technology | Air-Assisted |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (cm) | 0.3175 |
| Hose Inlet Diameter (mm) | 3 |
| Includes | G40 Gun, Hopper, Stand Mount |
| Maximum Hose Length (m) | 7.6 |
| Maximum Sound Pressure Level (dB(A)) | 77.9 |
| Maximum Tip Size (cm) | 0.0483 |
| Maximum Tip Size (mm) | 0.4826 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 30:1 |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Air-Assisted |
| Standards Met | ATEX, CE |
| Type | Air-Assisted Airless Sprayer |
| Weight (kg) | 15.9 |
| Wetted Material | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
Product Manuals
CAD Drawings
24F152-3D-EN.zip
(6 MB)
Repair Parts
| Part No. | Description |
|---|---|
| 24G694 | Complete 3.5 in (88.9 mm) Merkur ES Air Motor Repair Kit |
| 24G701 | Complete Plated Steel Pump Replacement Kit for Merkur ES Packages |
| 24F160 | Standard Push-on Strainer Kit |
| 24A537 | Air Valve Repair Kit, for Air Valve Models 24A351 and 24A353 |
| 256426 | Package of 10 strainers for Kits 24F149 and 256420 |
| 17A493 | Hopper Kit, 2 liter (0.5 gal), attaches to wall or stand mount |
| 17B208 | Hopper O-Ring Kit |
| 17C166 | Bungee cord for attaching hopper lid |
| 24H665 | Alternate U-Cup Pump Packing Kit (UHMWPE) for Merkur ES Packages |
| 24C855 | G40 Air-Assist Gun for high viscosity materials above 1500 psi |
| 24A535 | Air Valve Seal Kit, for Air Valve Models 24A351 and 24A353 |
| 24F161 | Airless to Air-Assisted Conversion Kit |
| 24A360 | Air Valve End Cap Kit, Standard, for systems with no DataTrak or with DataTrak with Cycle Count |
